Pinout Values and Diagnostic Parameters

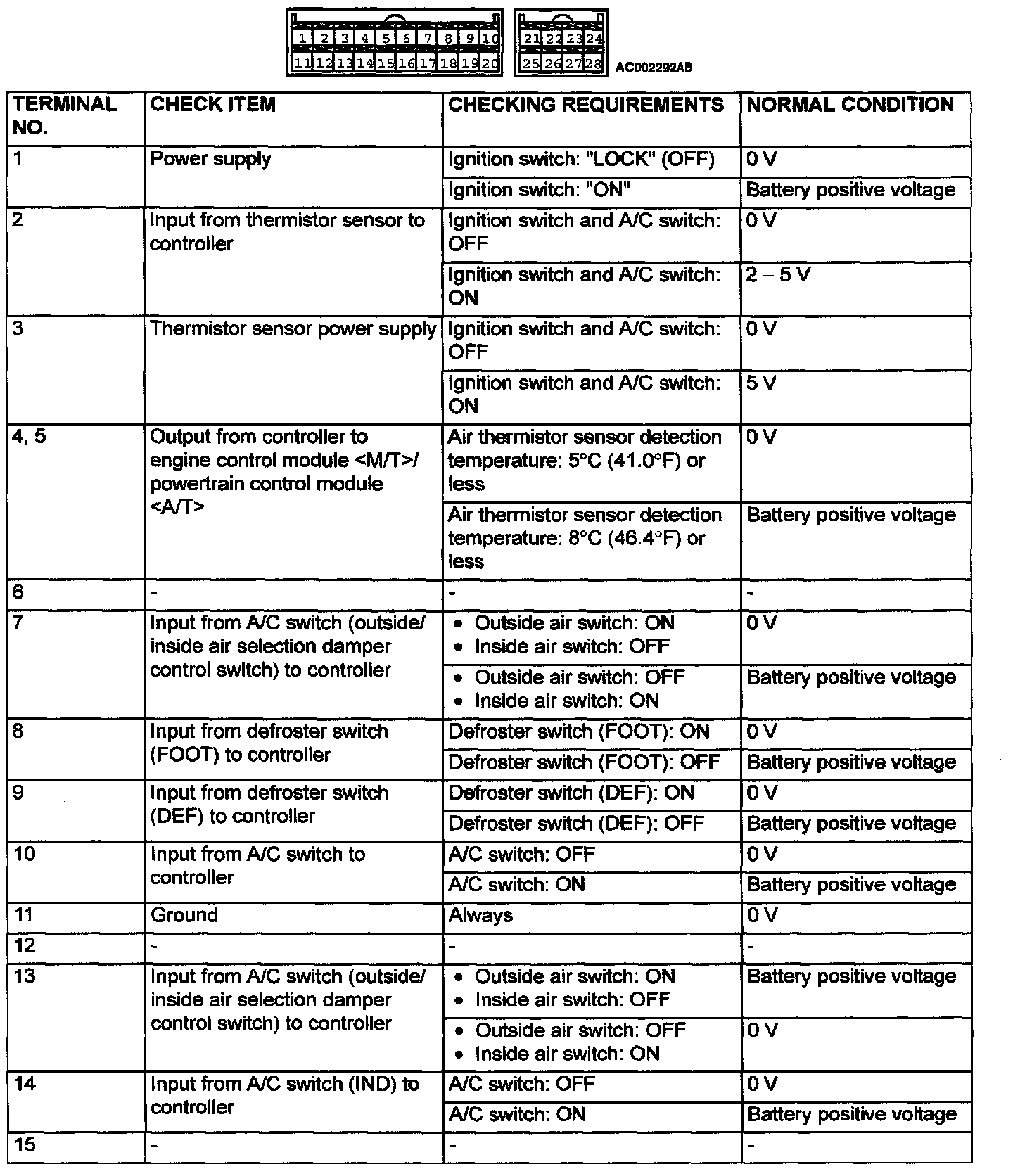

ECU Connector View And Terminal No: 1 - 15:

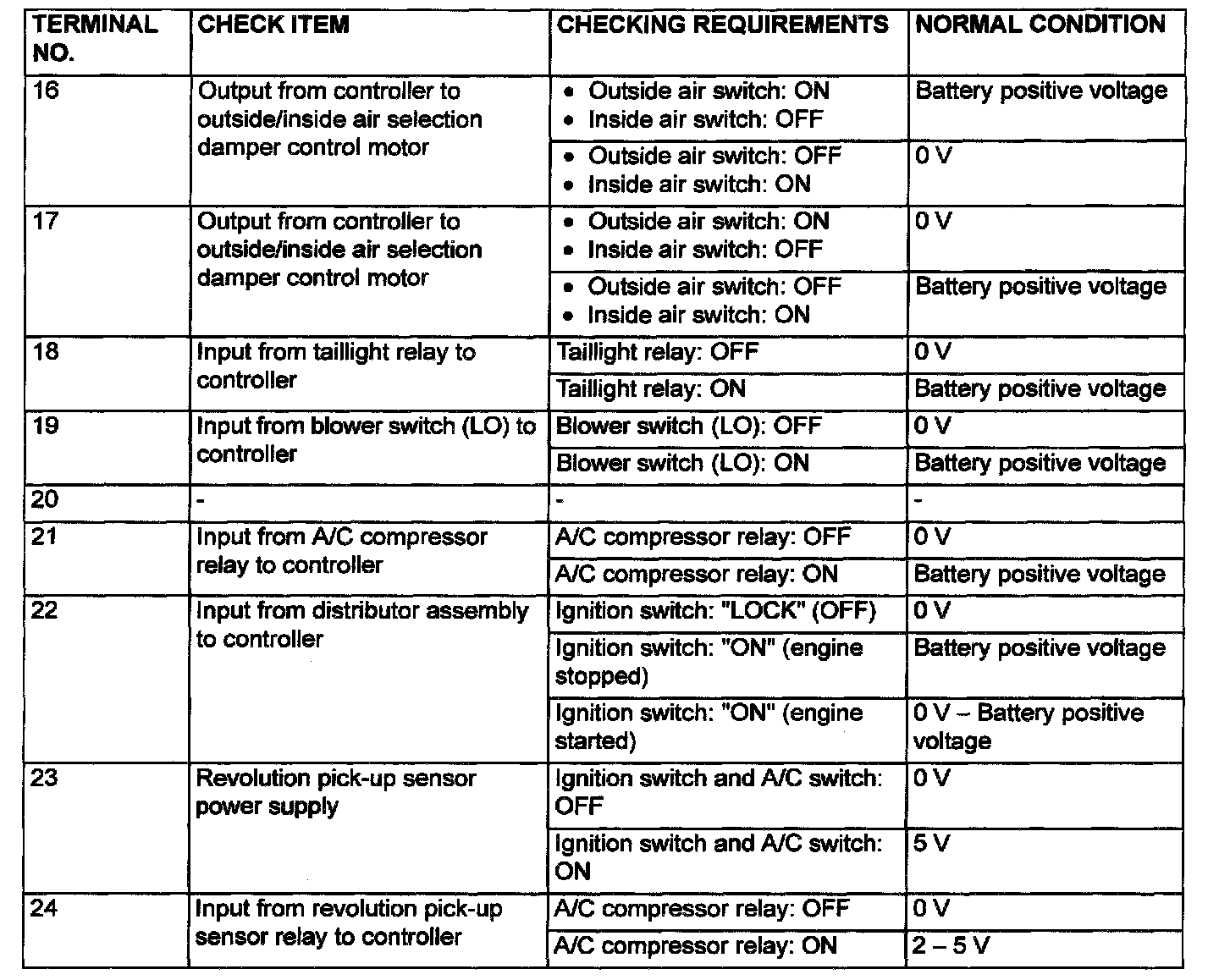

Terminal No: 16 - 24:
