Intake Air Plenum: Service and Repair
INTAKE MANIFOLD PLENUM
Intake Manifold Plenum Part 1:

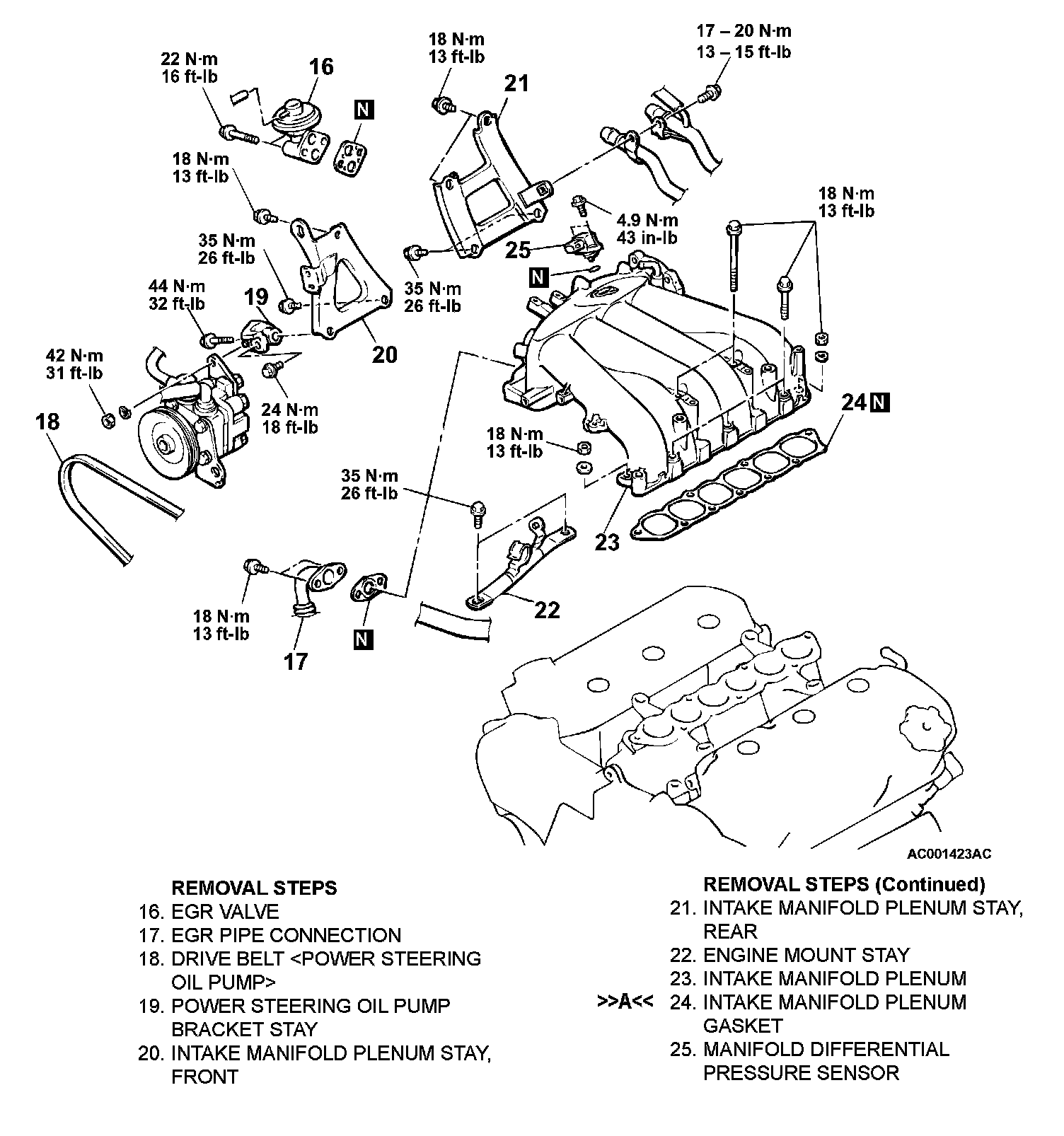

Intake Manifold Plenum Part 2:
INSTALLATION SERVICE POINT
>>A<

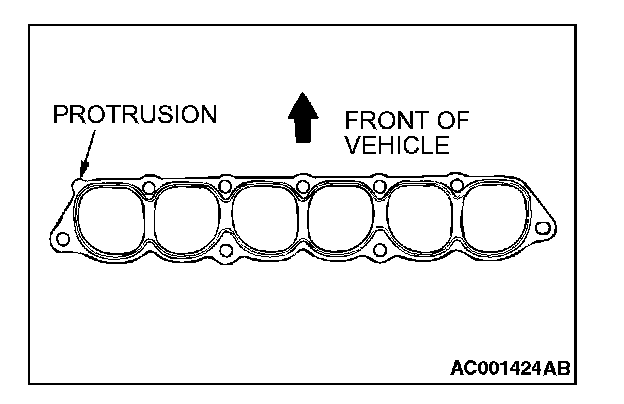

Install the gasket with the protrusion in the position illustrated.
