PCM Terminal Resistance and Continuity Inspection Chart

PCM TERMINAL RESISTANCE AND CONTINUITY INSPECTION CHART

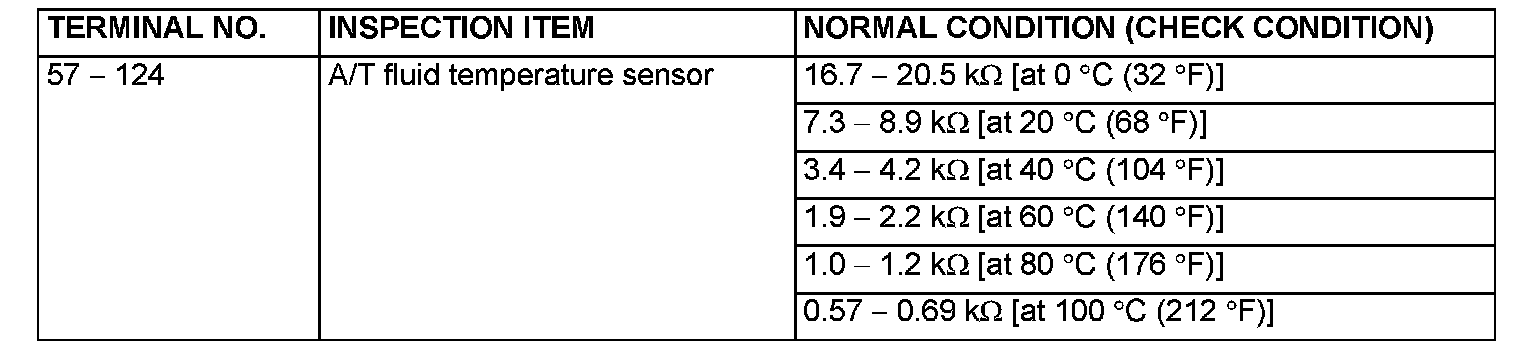

Part 1 Of 2:

Part 2 Of 2:

NOTE: The PCM connectors should be disconnected for this inspection.
