Crankshaft Main Bearing

Main cap bolts 74 ± 4 Nm (54 ± 3 ft-lb.)





Crankshaft journal oil clearance mm (in)
No.1, 4
STANDARD VALUE 0.012 - 0.030 (0.0005 - 0.0012)
LIMIT 0.1(0.003)
No.2, 3
STANDARD VALUE 0.018 - 0.036 (0.0007 - 0.0014)
LIMIT 0.1(0.003)

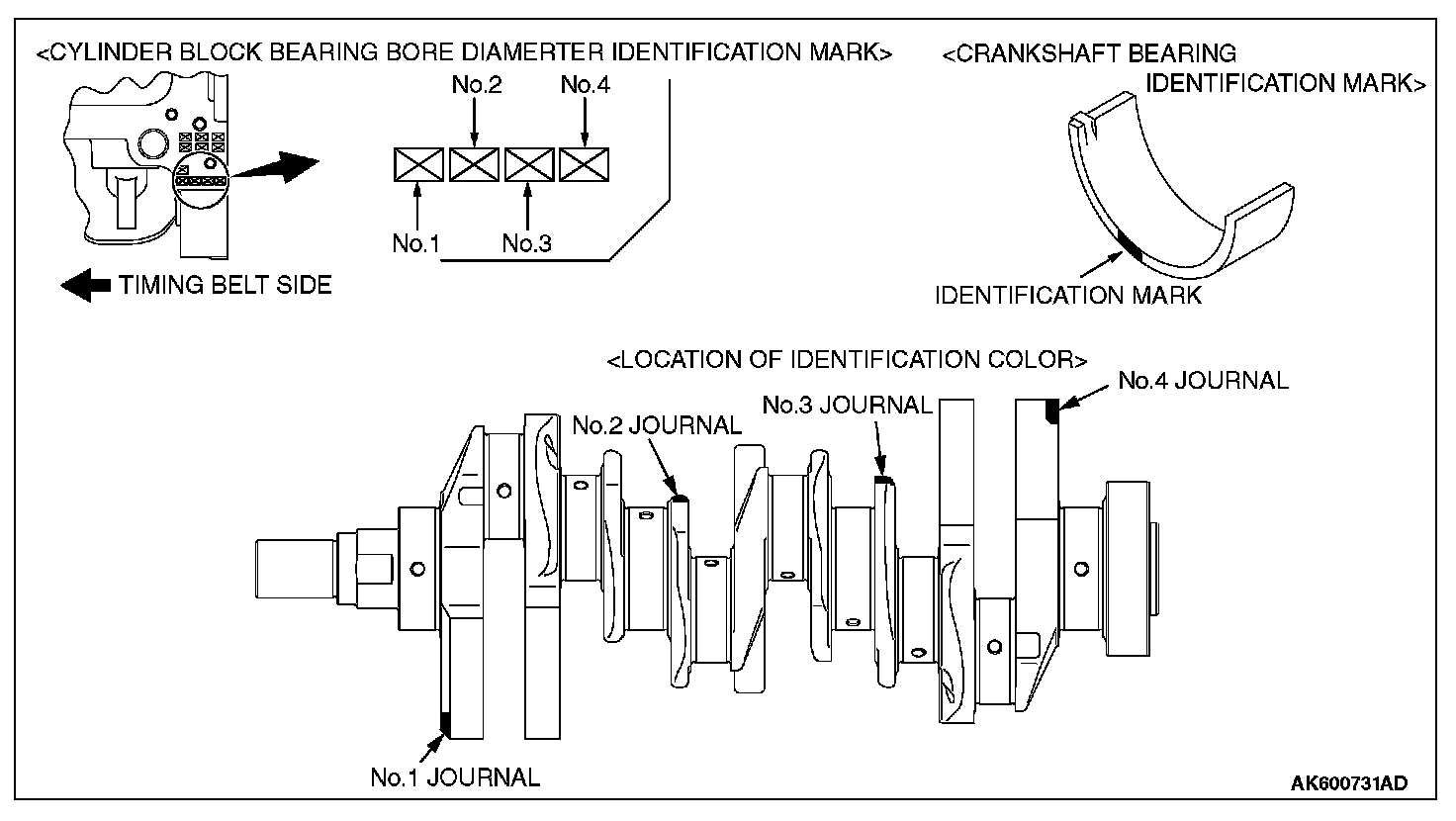

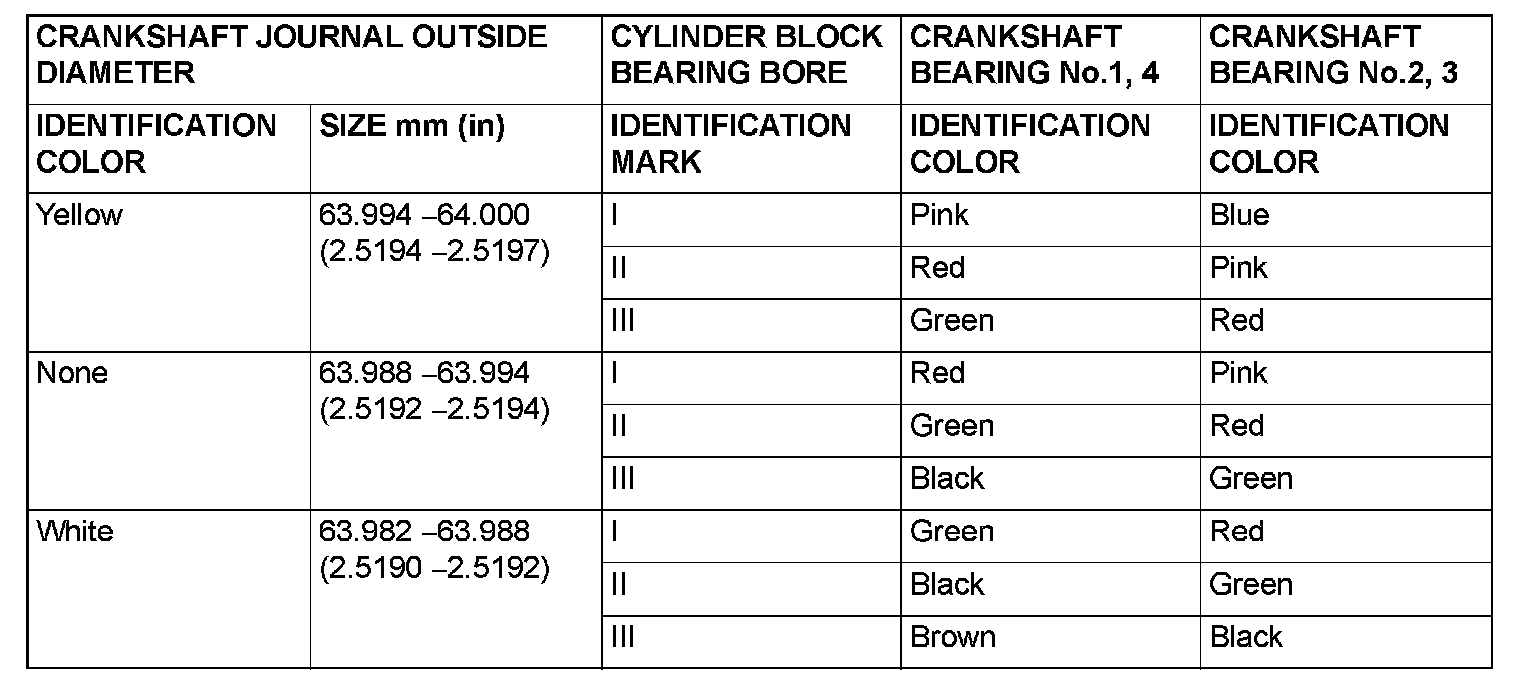

Main bearing codes
