Engine Control Module

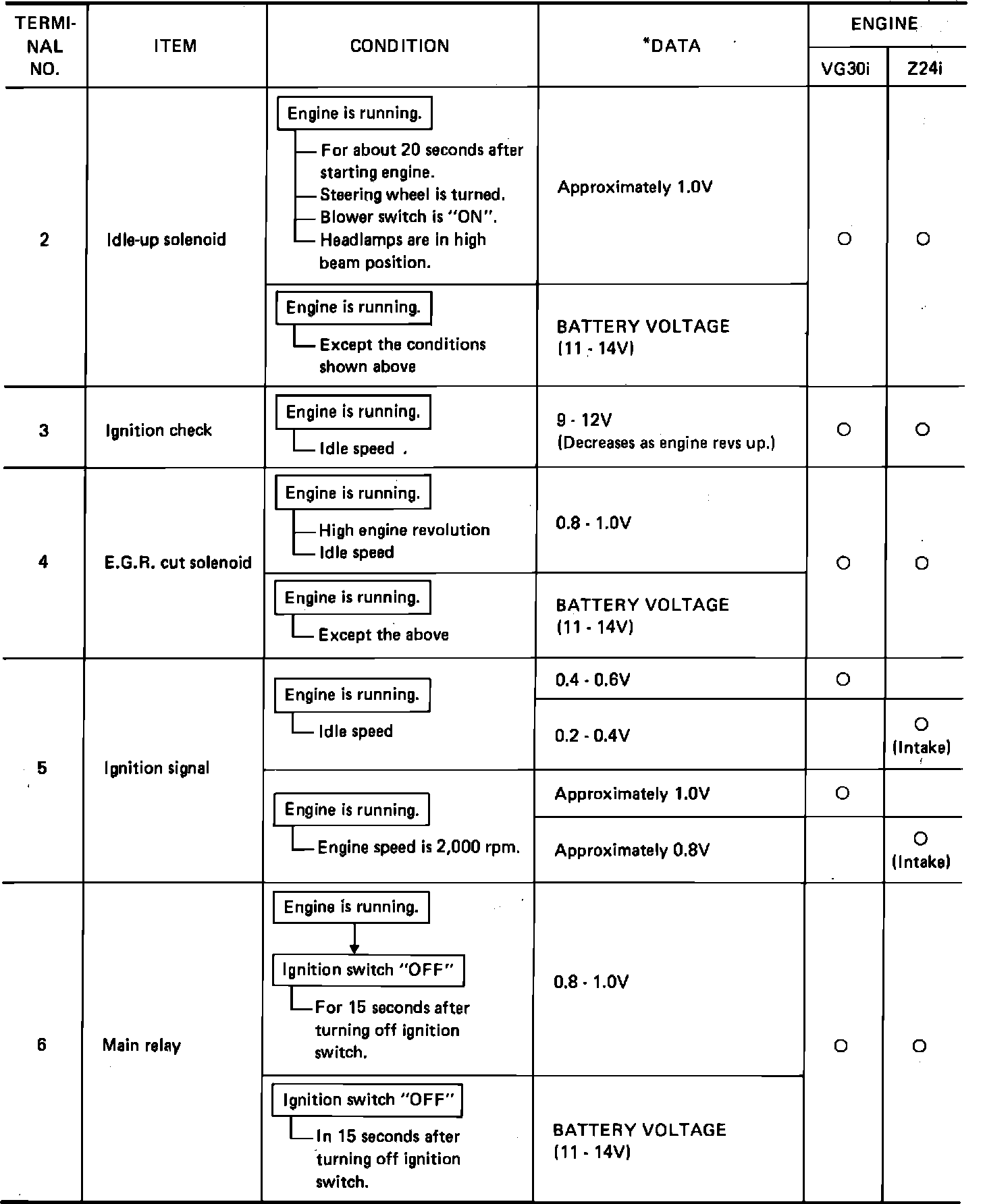

Fig. 308a Input/Output signal inspection chart.:

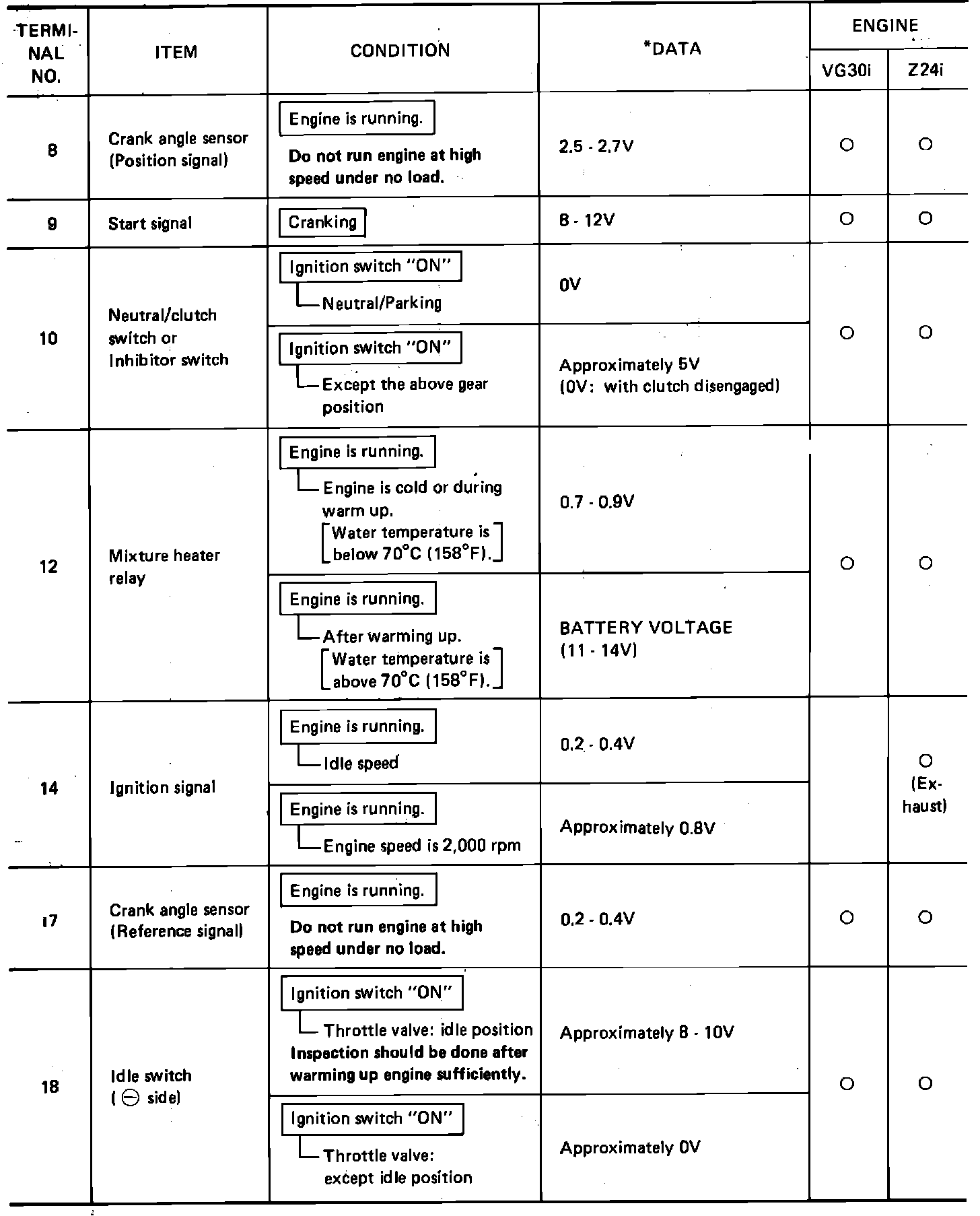

Fig. 308b Input/Output signal inspection chart.:

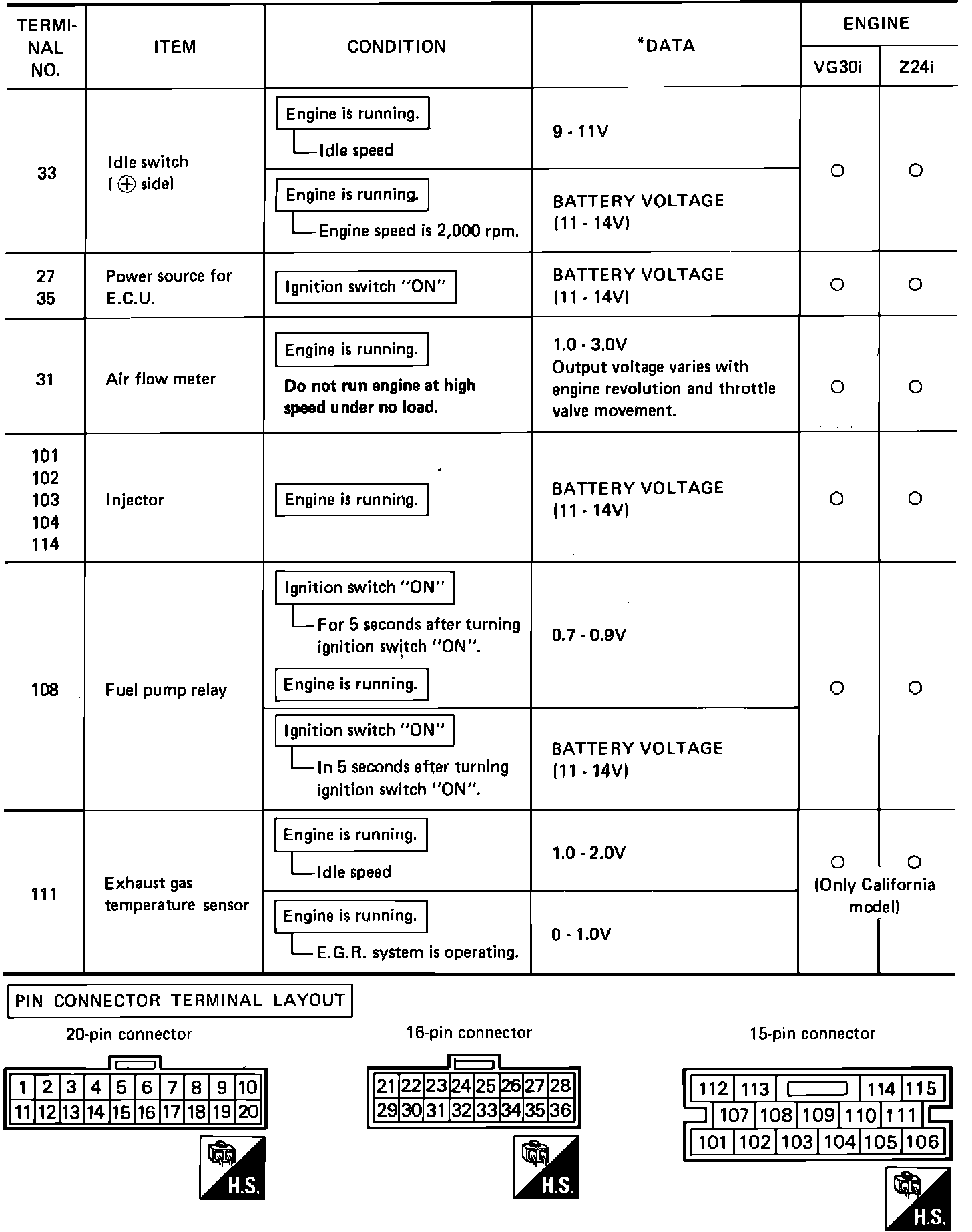

Fig. 308c Input/Output signal inspection chart.:

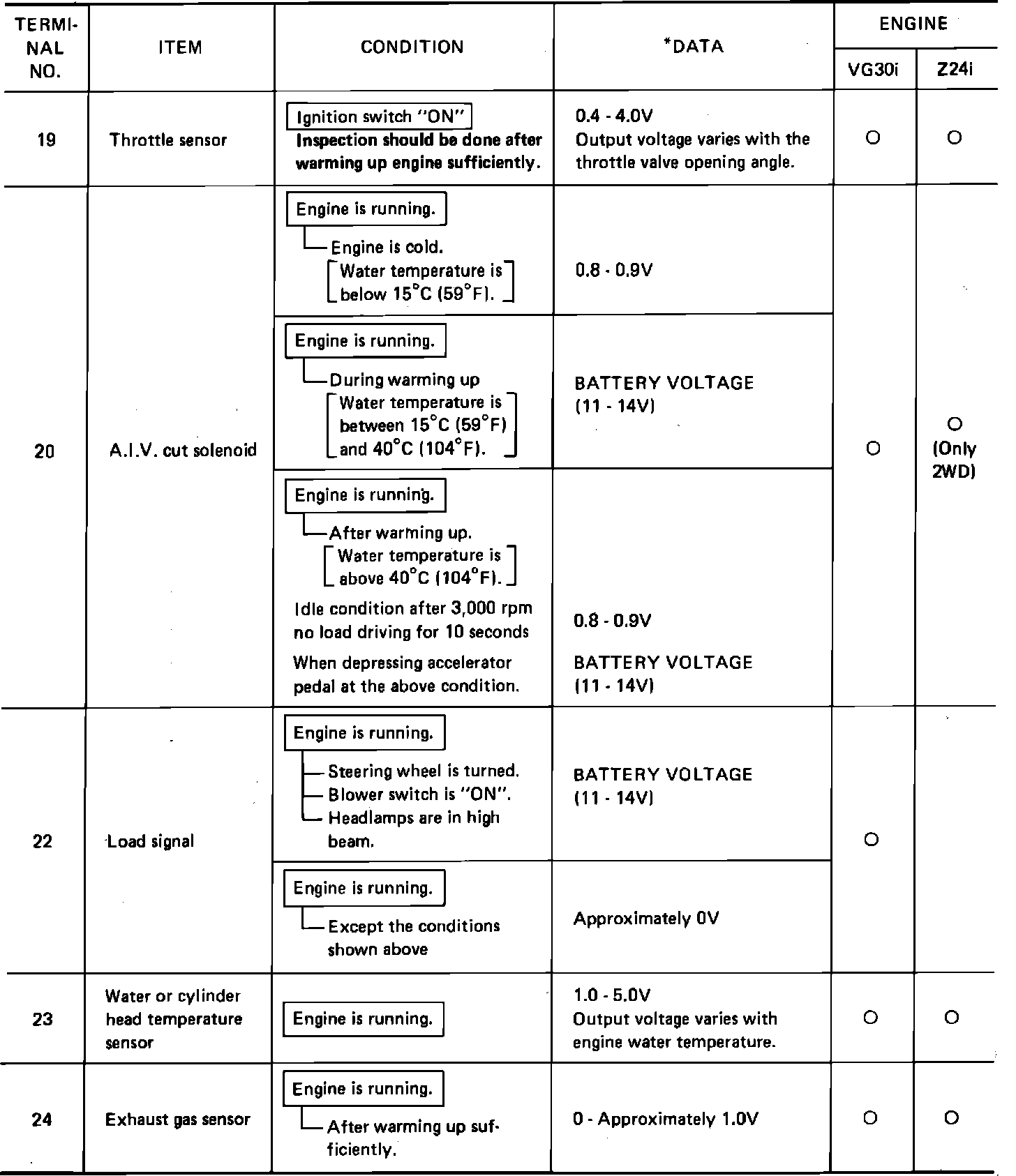

Fig. 308d Input/Output signal inspection chart.:
