Nissan-Datsun Truck
>>
1997
>>
Pathfinder LE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Control Module, A/T
>>

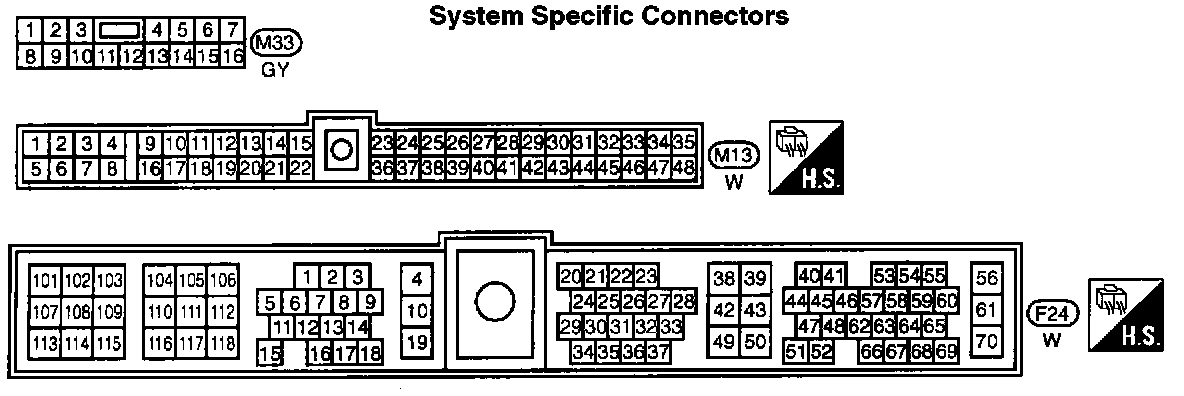

System Specific Connectors
System Specific Connectors
A/T Control:
