Key Switch (Insert)
Key Switch (Insert)

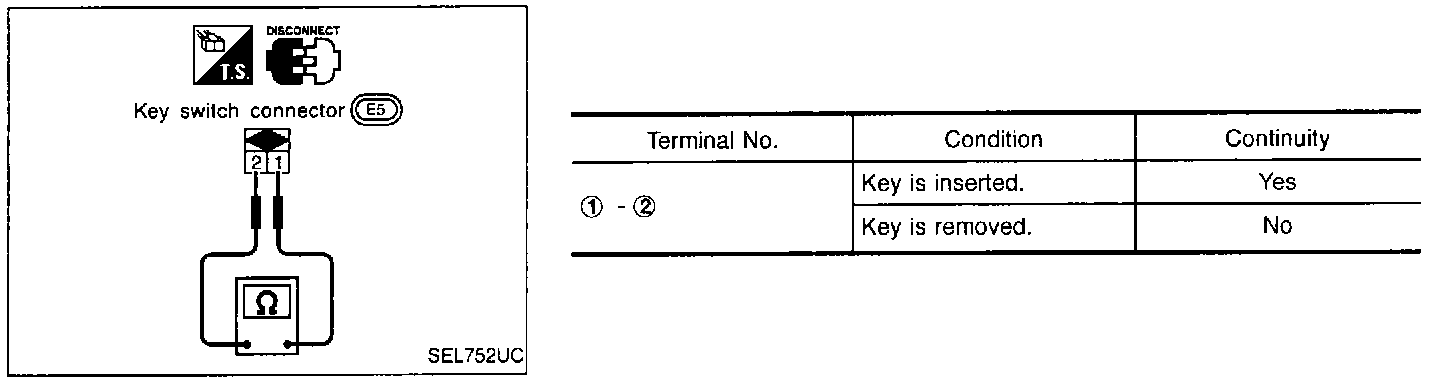

Key Switch (insert):
Check continuity between terminals when key is inserted in ignition key cylinder and key is removed from ignition key cylinder.
