Nissan-Datsun Truck
>>
1999
>>
Pathfinder LE 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
To VIN # 350000
>>
Modules
>>
ECM (ECCS Control Module)
ECM (ECCS Control Module)

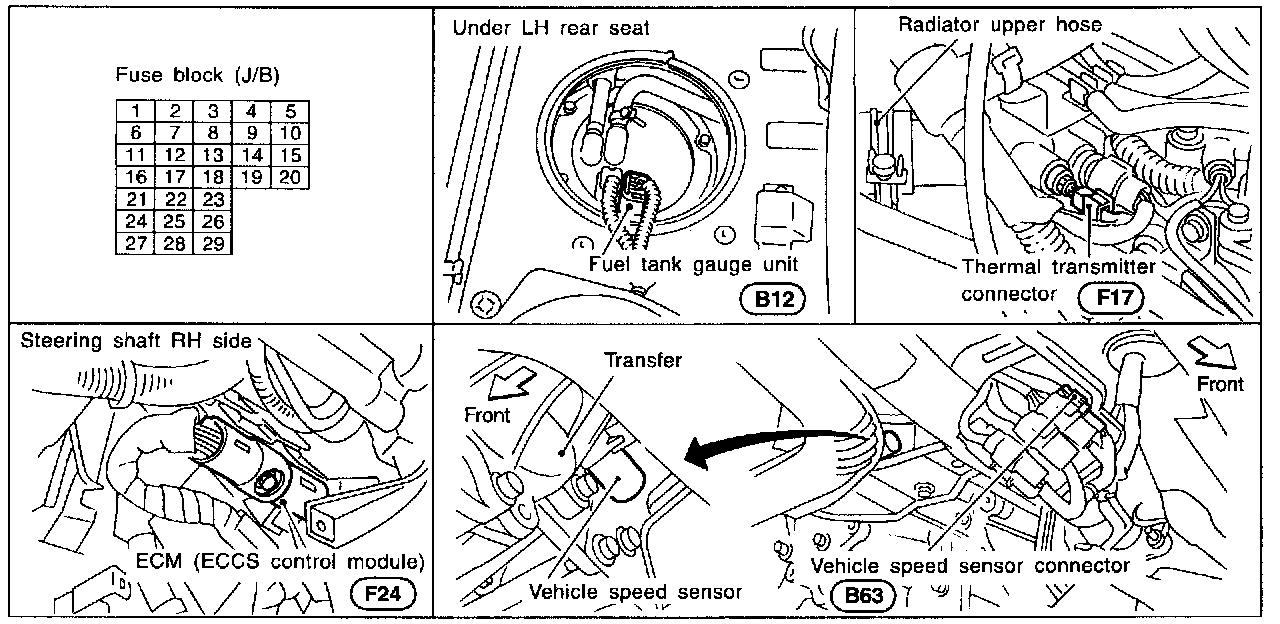

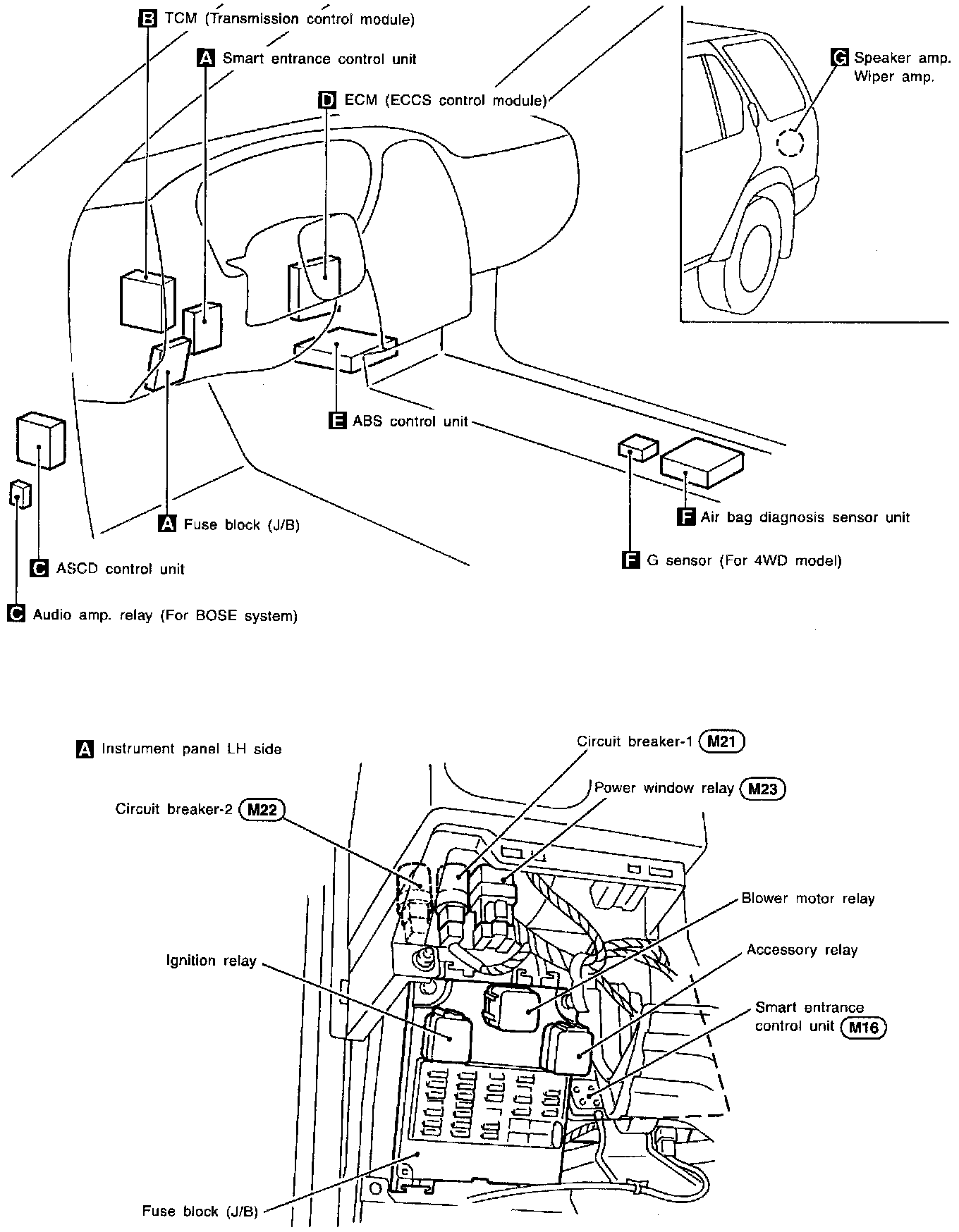

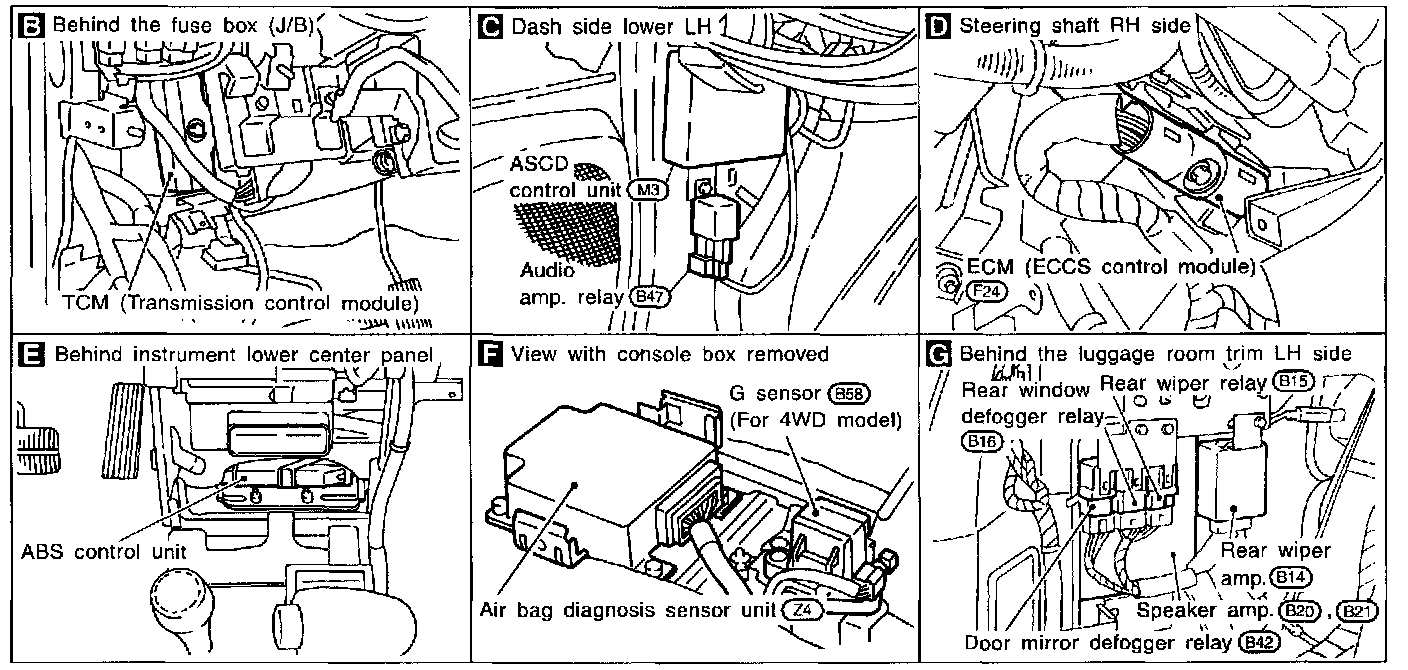

Component Parts and Harness Connector Location
Passenger Compartment
