Nissan-Datsun Truck
>>
2003
>>
Xterra 2WD L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

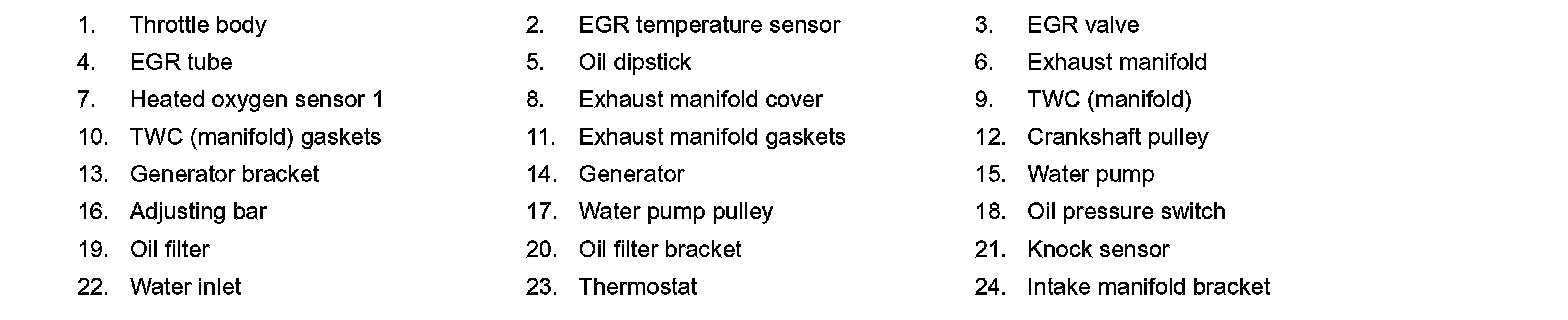

OUTER COMPONENT PARTS
Removal and Installation

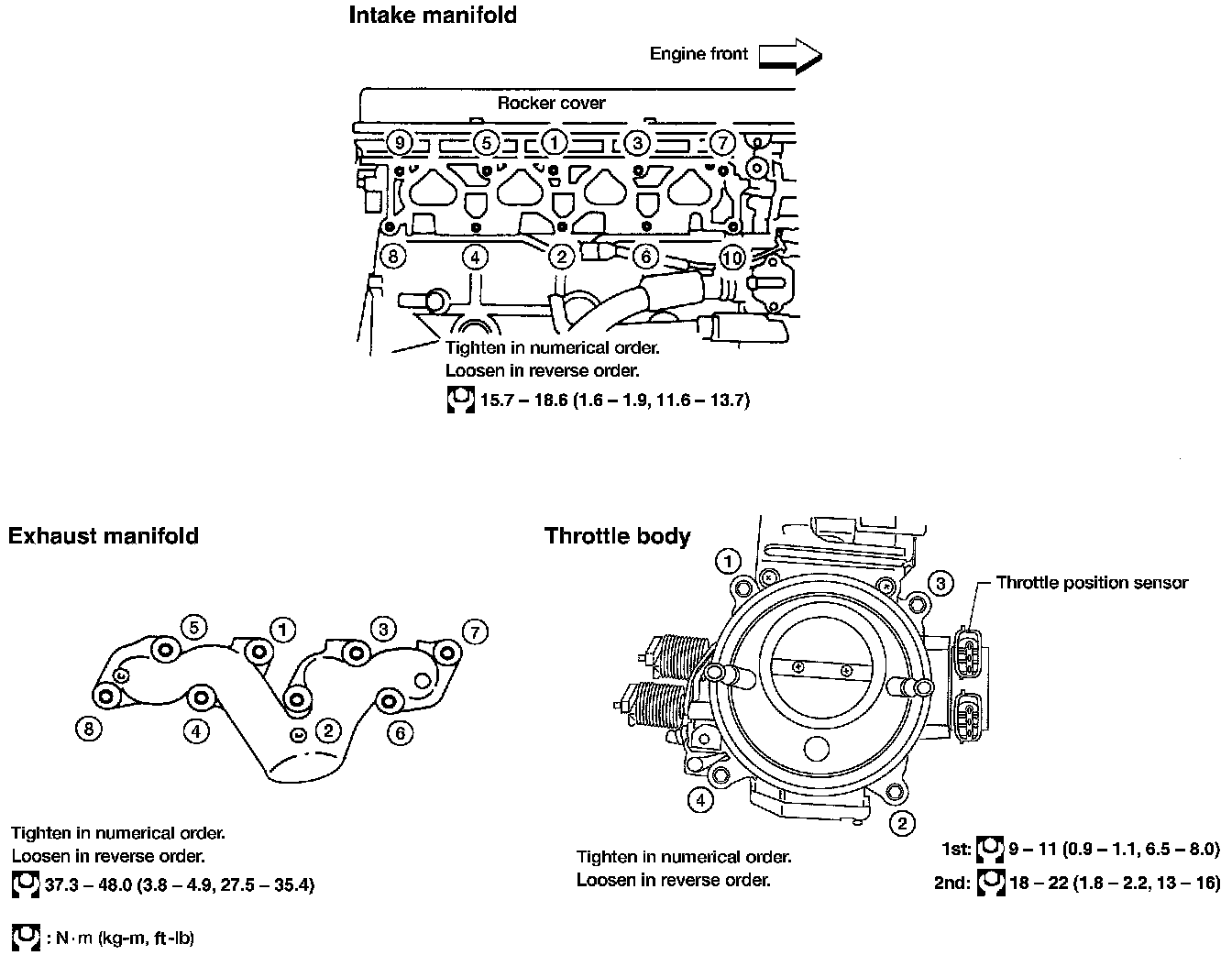

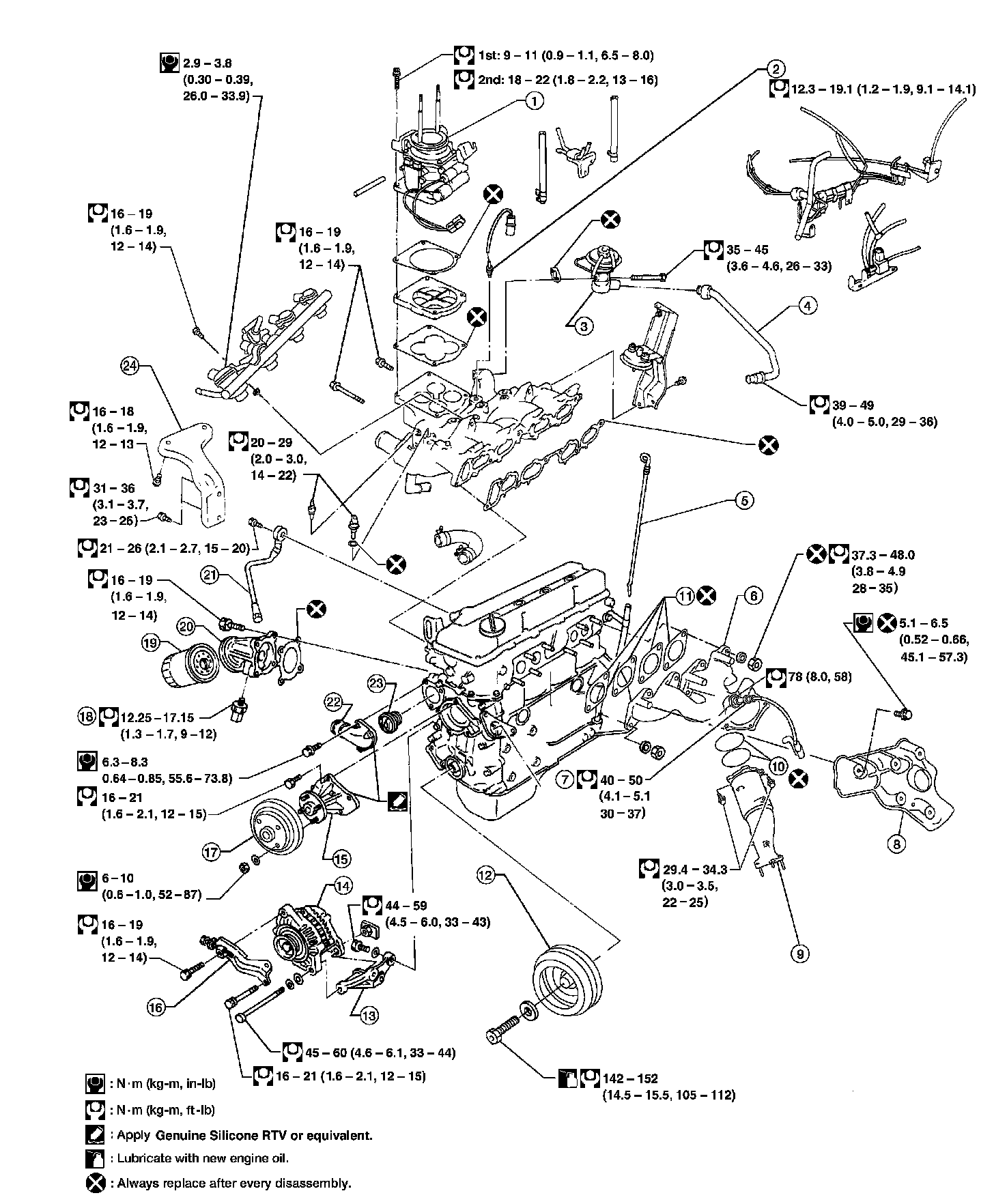

Engine Outer Components

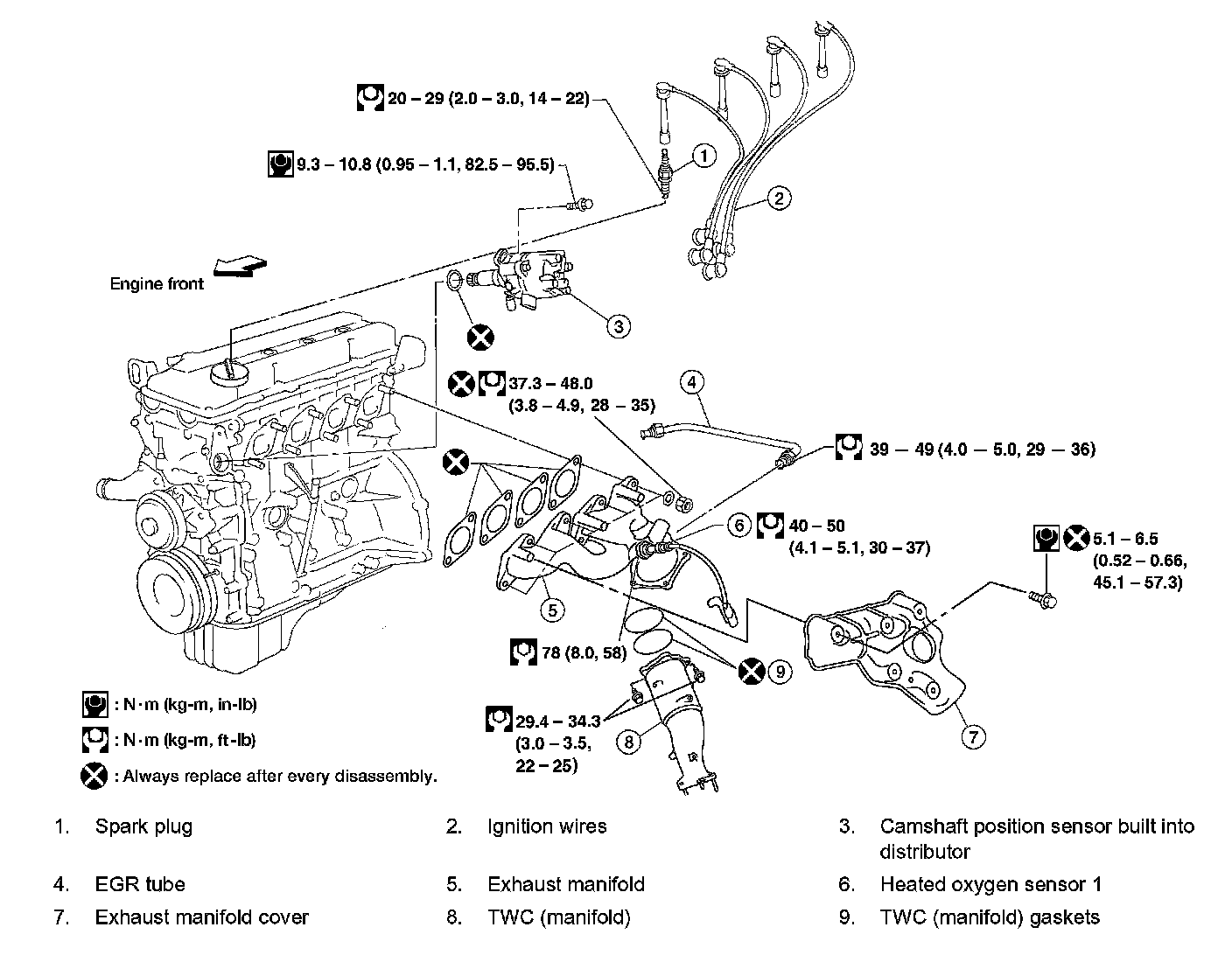

Ignition System Outer Components
