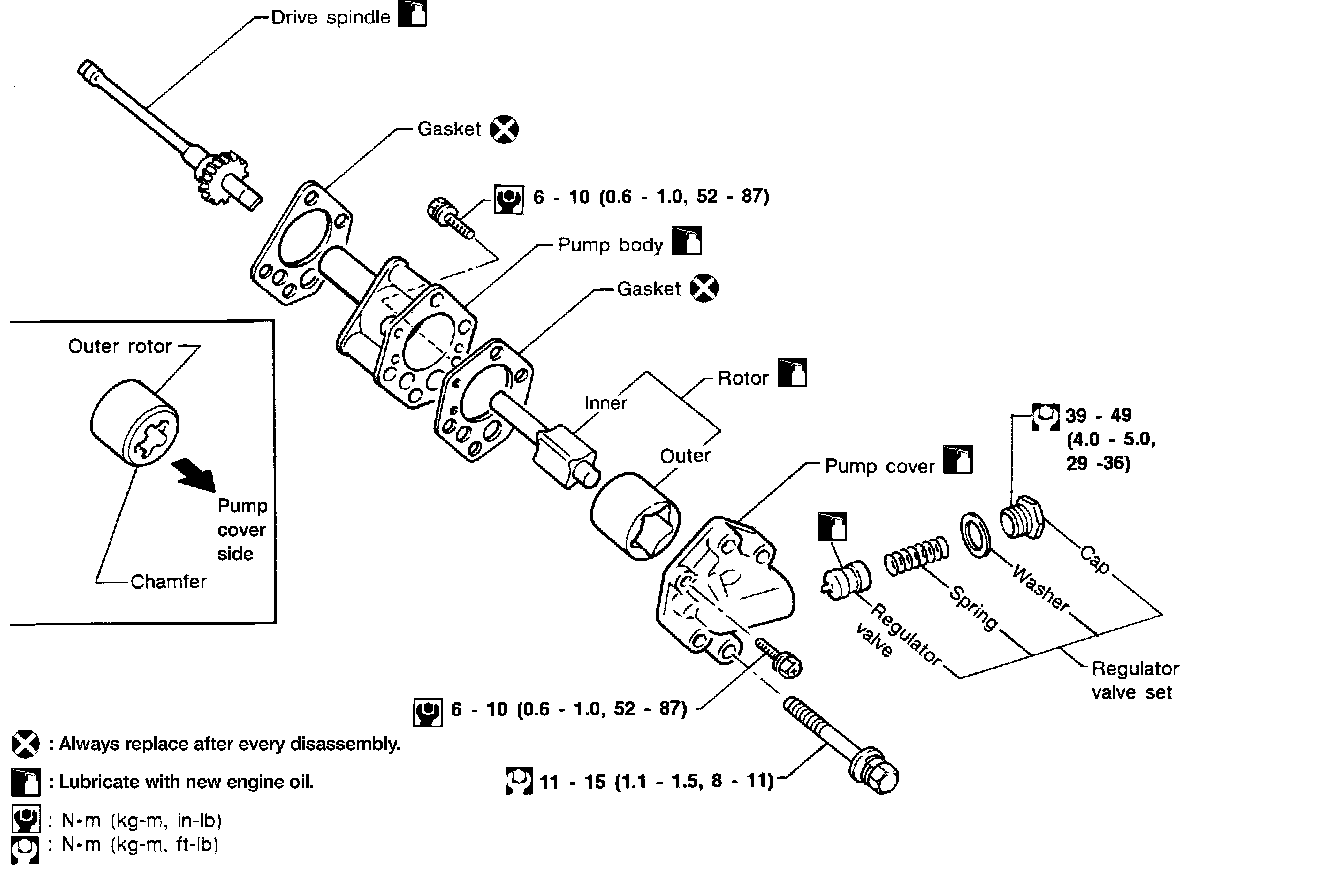

Oil Pump Specifications

Torque 11-15 Nm (9-11 ft lbs)


Clearance
Inner Rotor <0.12 mm (0.0047 in)
Outer Rotor to Pump 0.15-0.21 mm (0.0059-0.0083 in)
Side Clearance (w/ gasket) 0.04-0.100 mm (0.0016-0.0039 in)
