Nissan-Datsun Truck
>>
2003
>>
Xterra 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

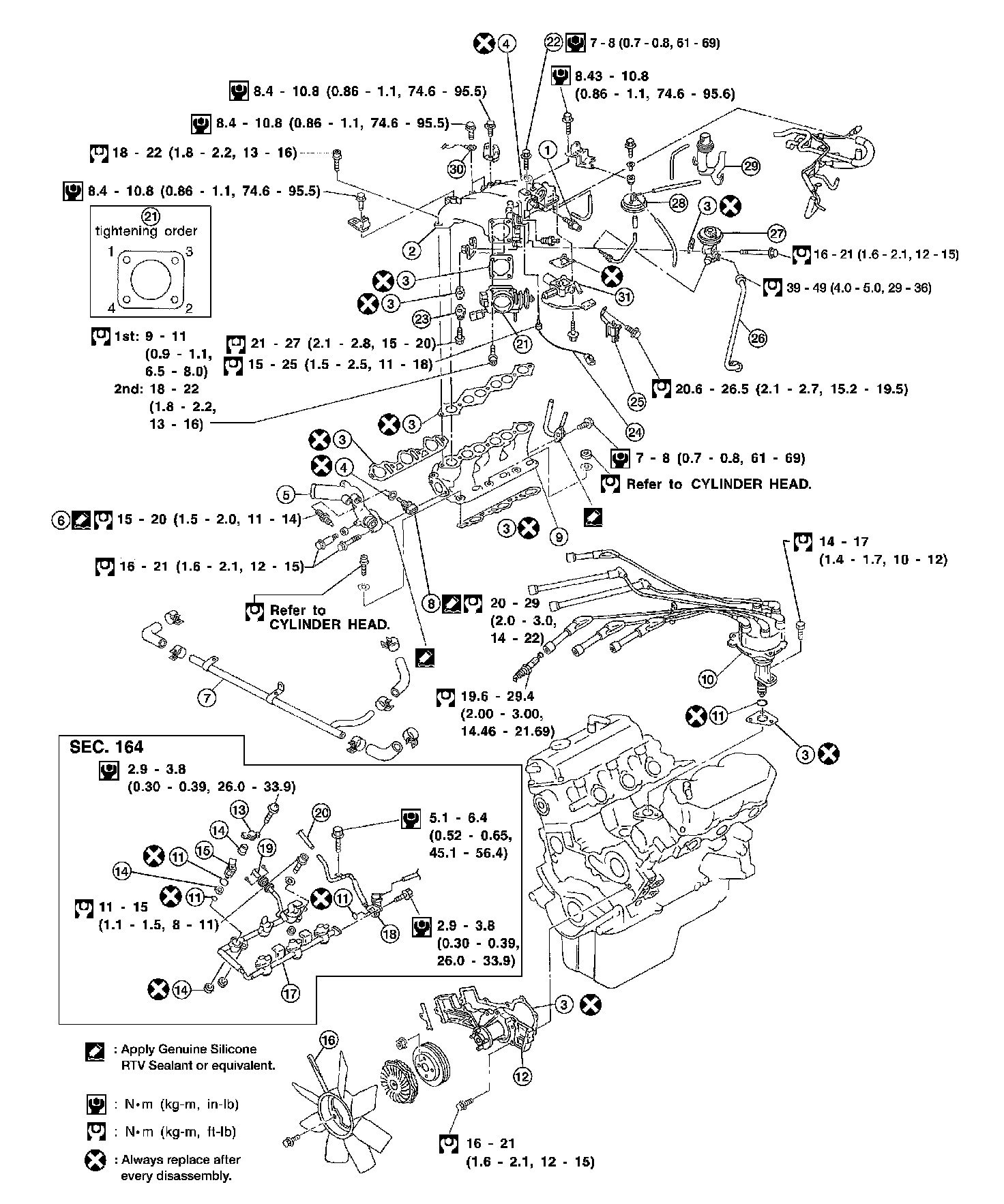

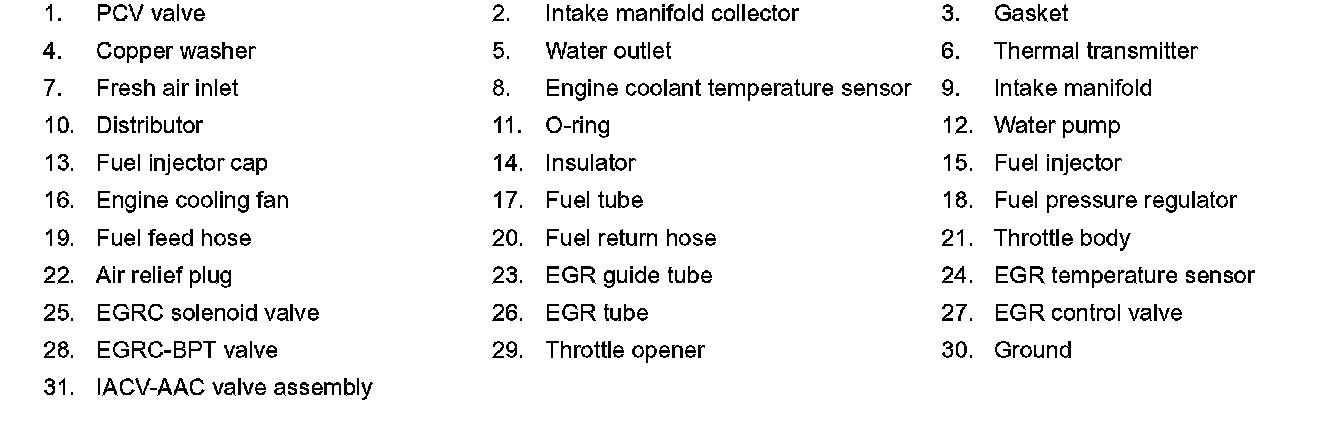

OUTER COMPONENT PARTS
1-2:
2-2:
1-2:
2-2:
