Front

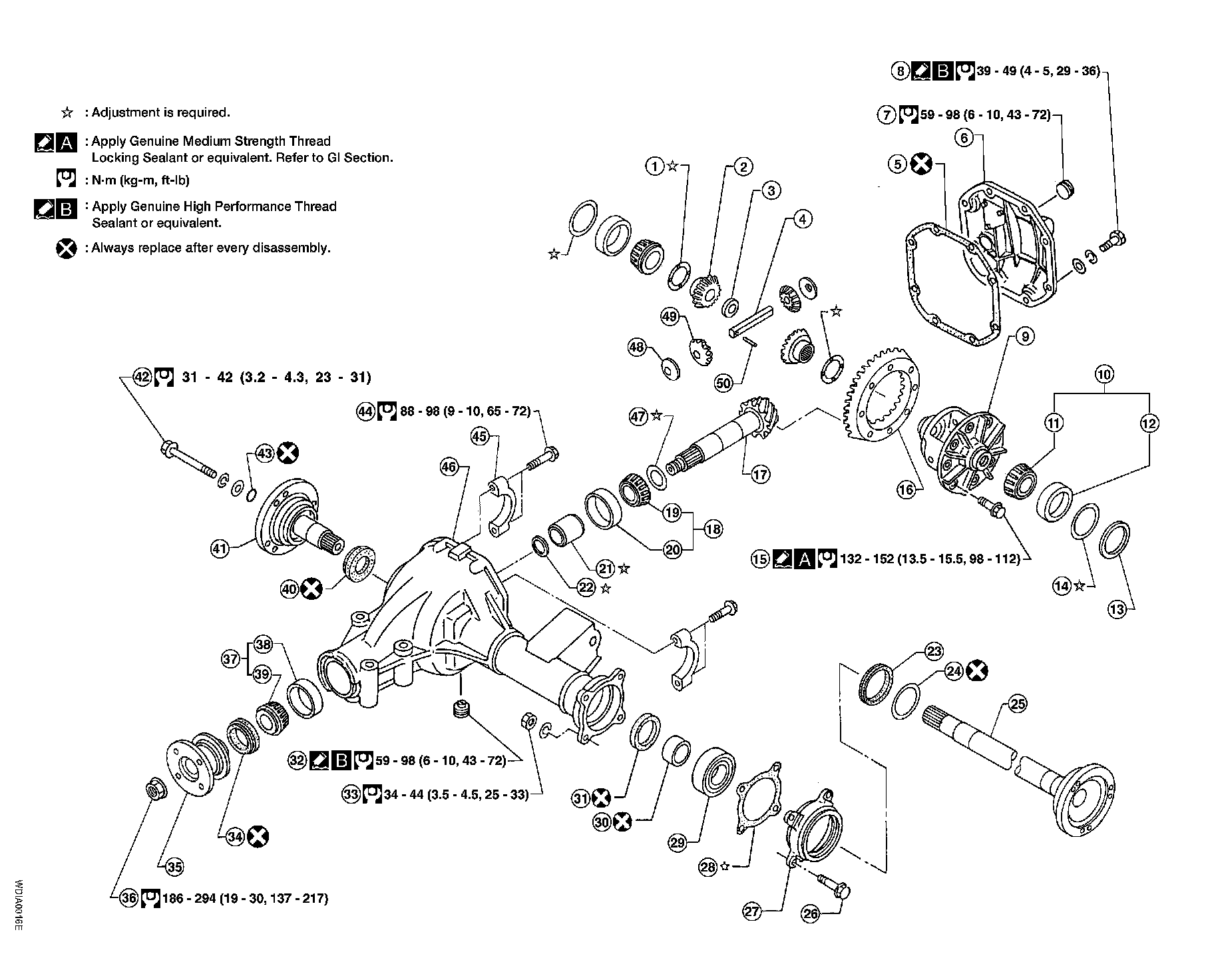

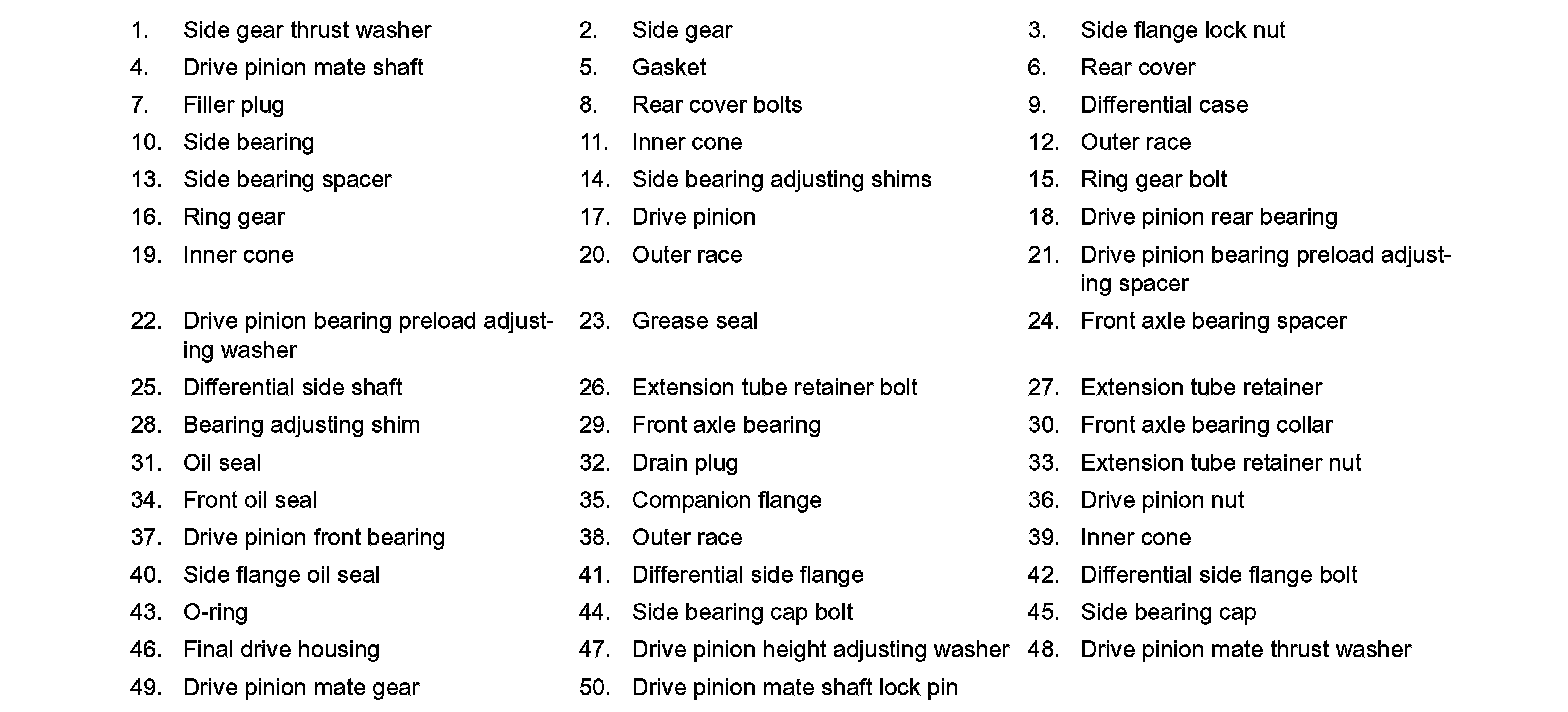

Front Final Drive - R200A:

Front Final Drive - R200A:

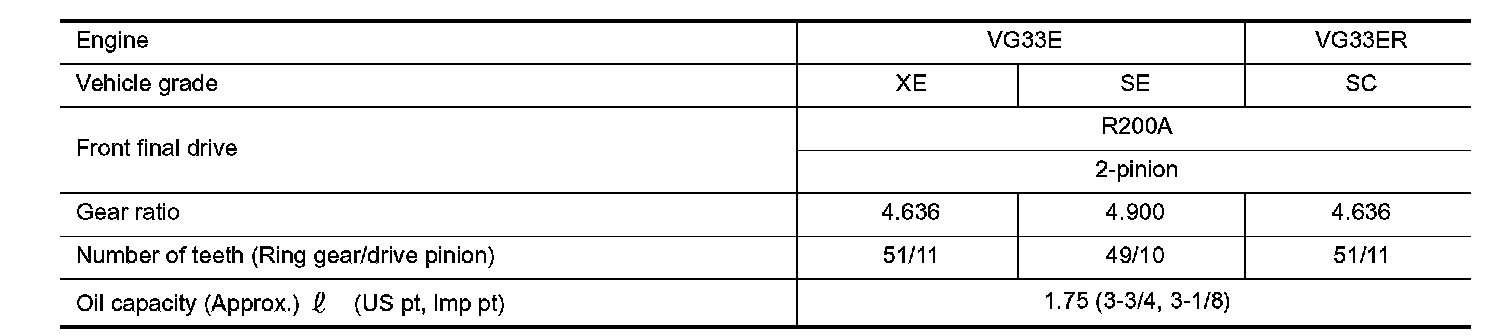

General Specifications / Front - R200A:

Ring Gear Runout / Front - R200A:

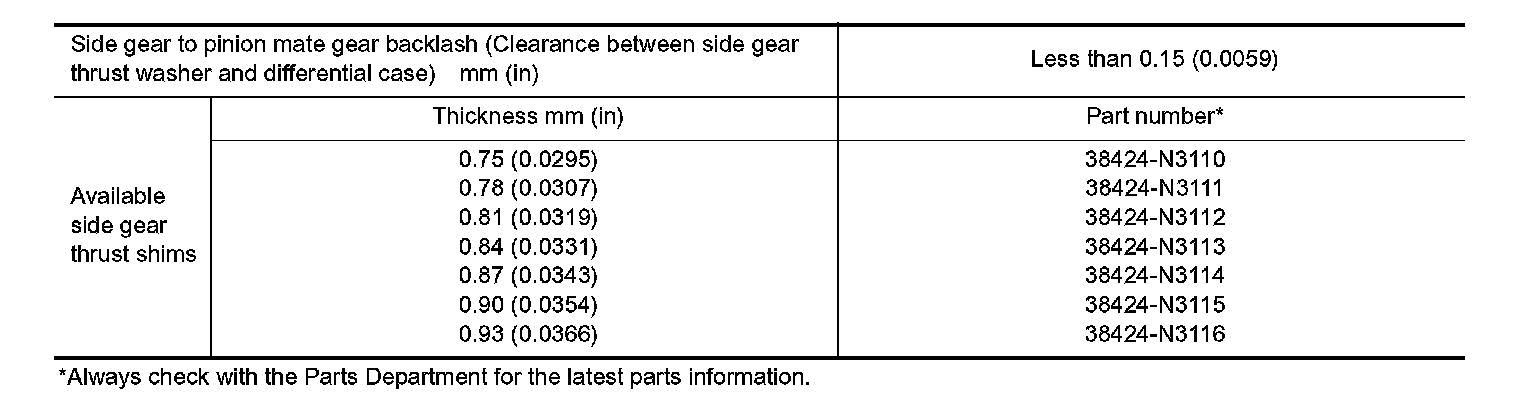

Side Gear Adjustment / Front - R200A:

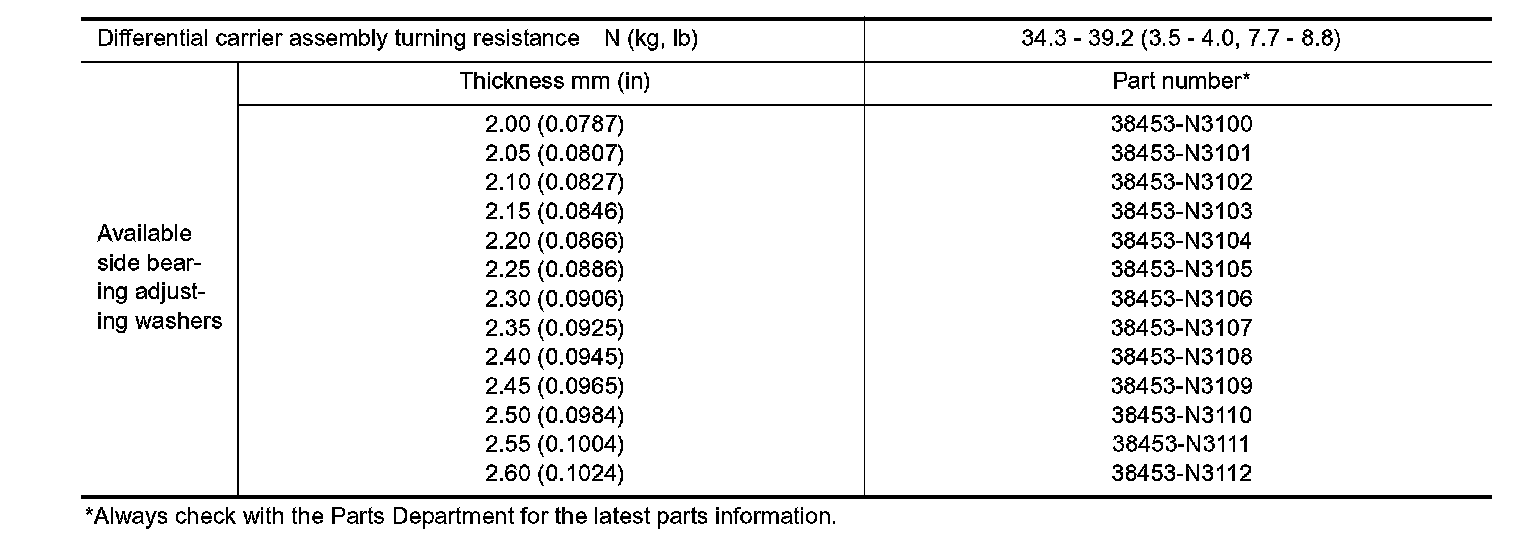

Side Bearing Adjustment / Front - R200A:

Total Preload Adjustment / Front - R200A:

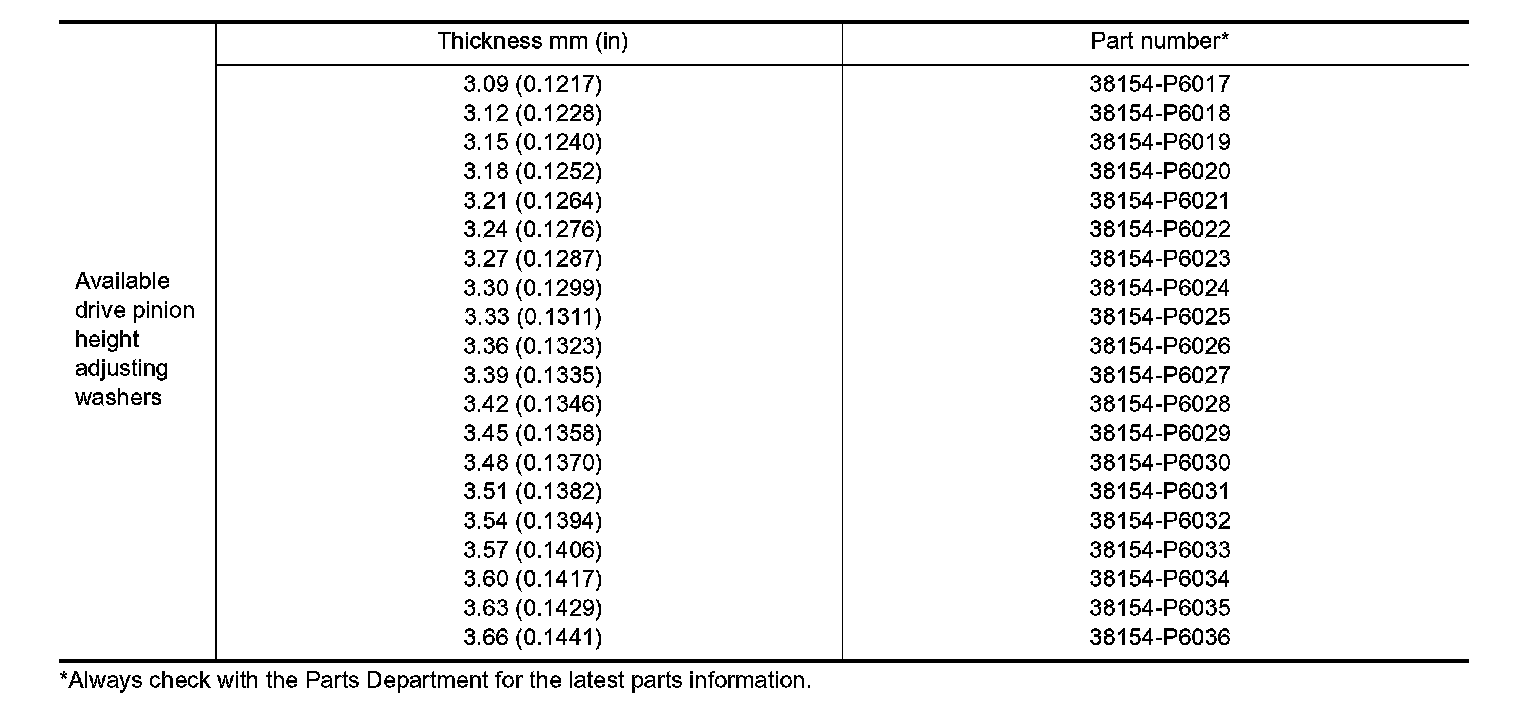

Drive Pinion Height Adjustment / Front - R200A:

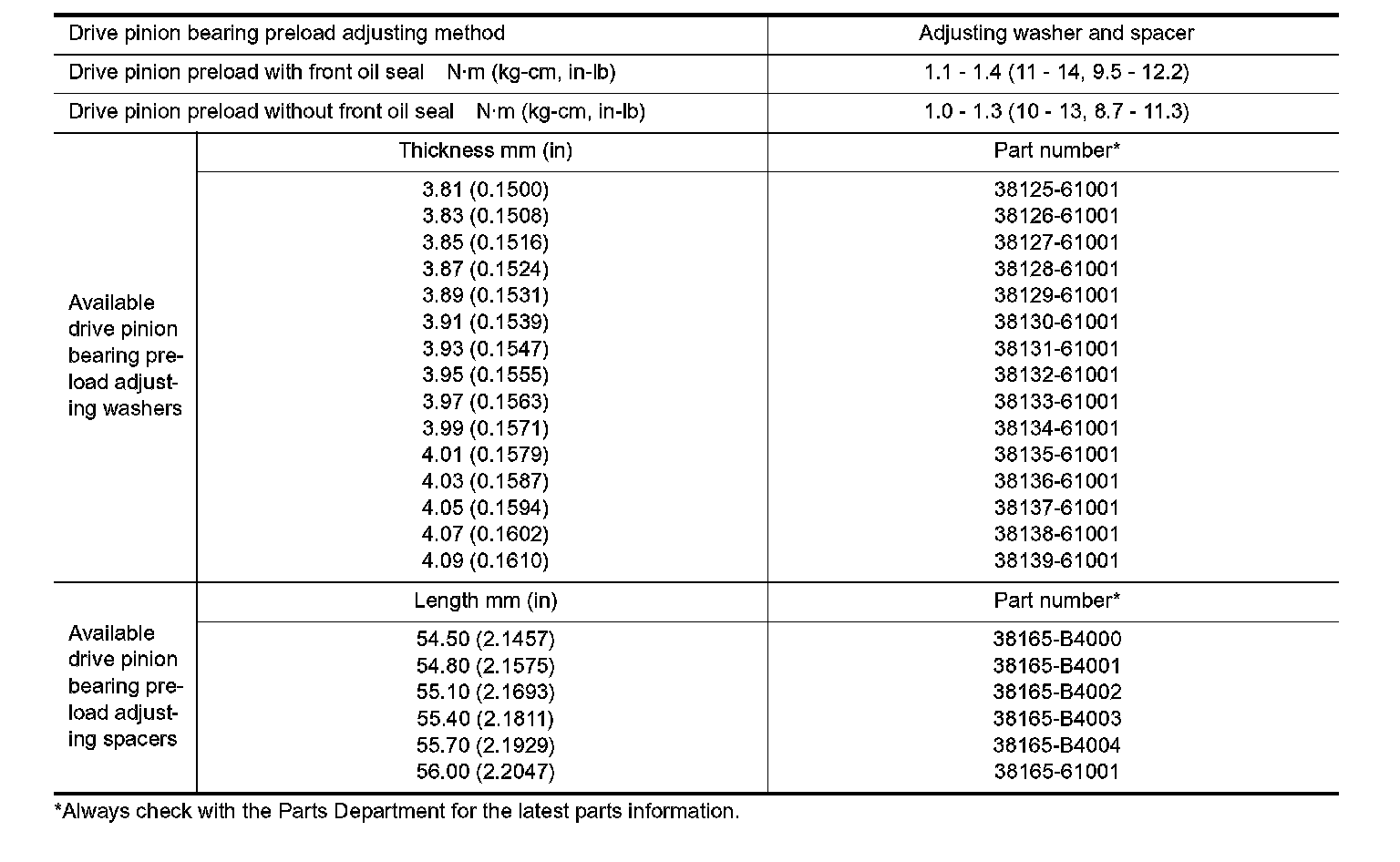

Drive Pinion Preload Adjustment / Front - R200A:
