Control Module Pinout Values

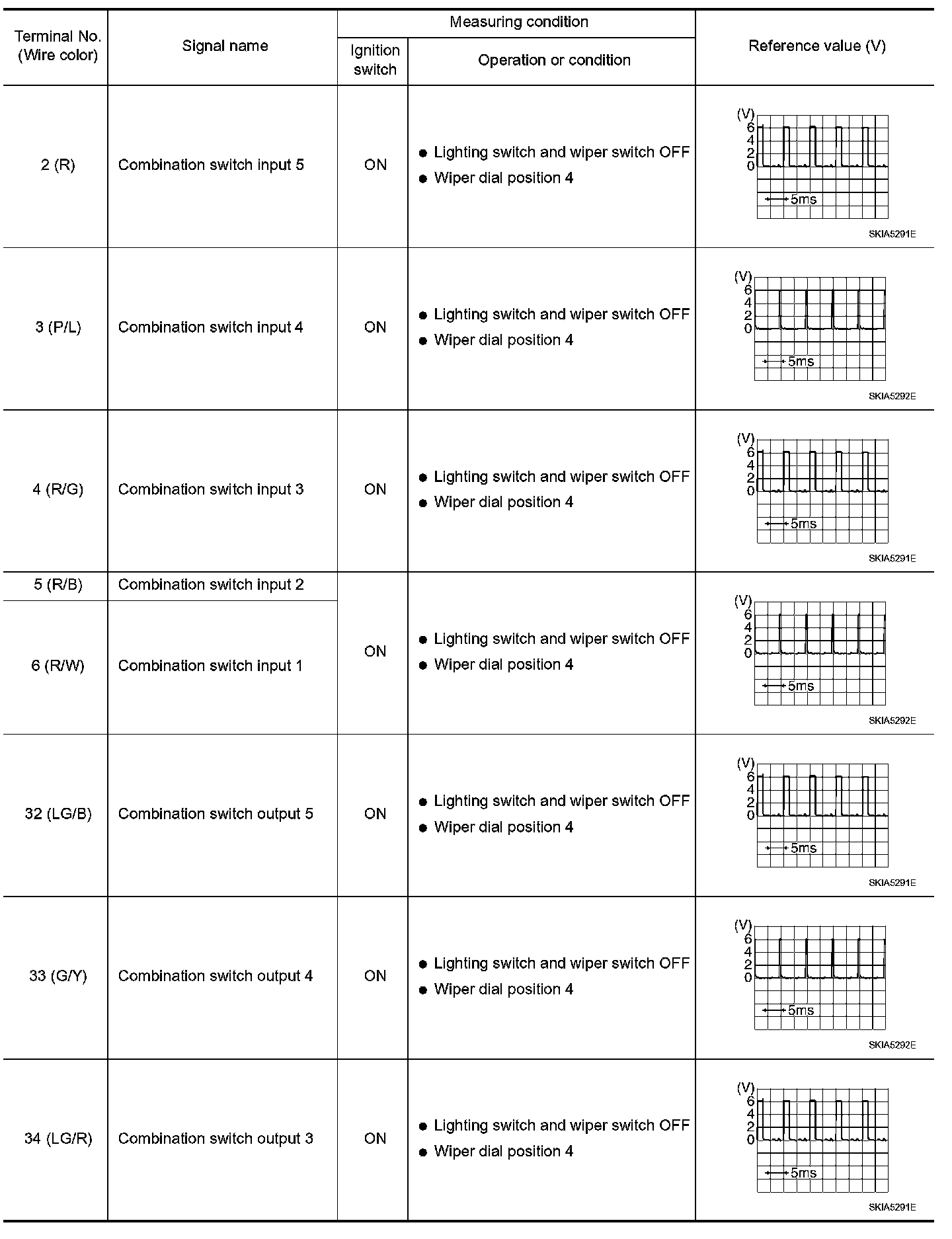

Terminals And Reference Value For BCM:

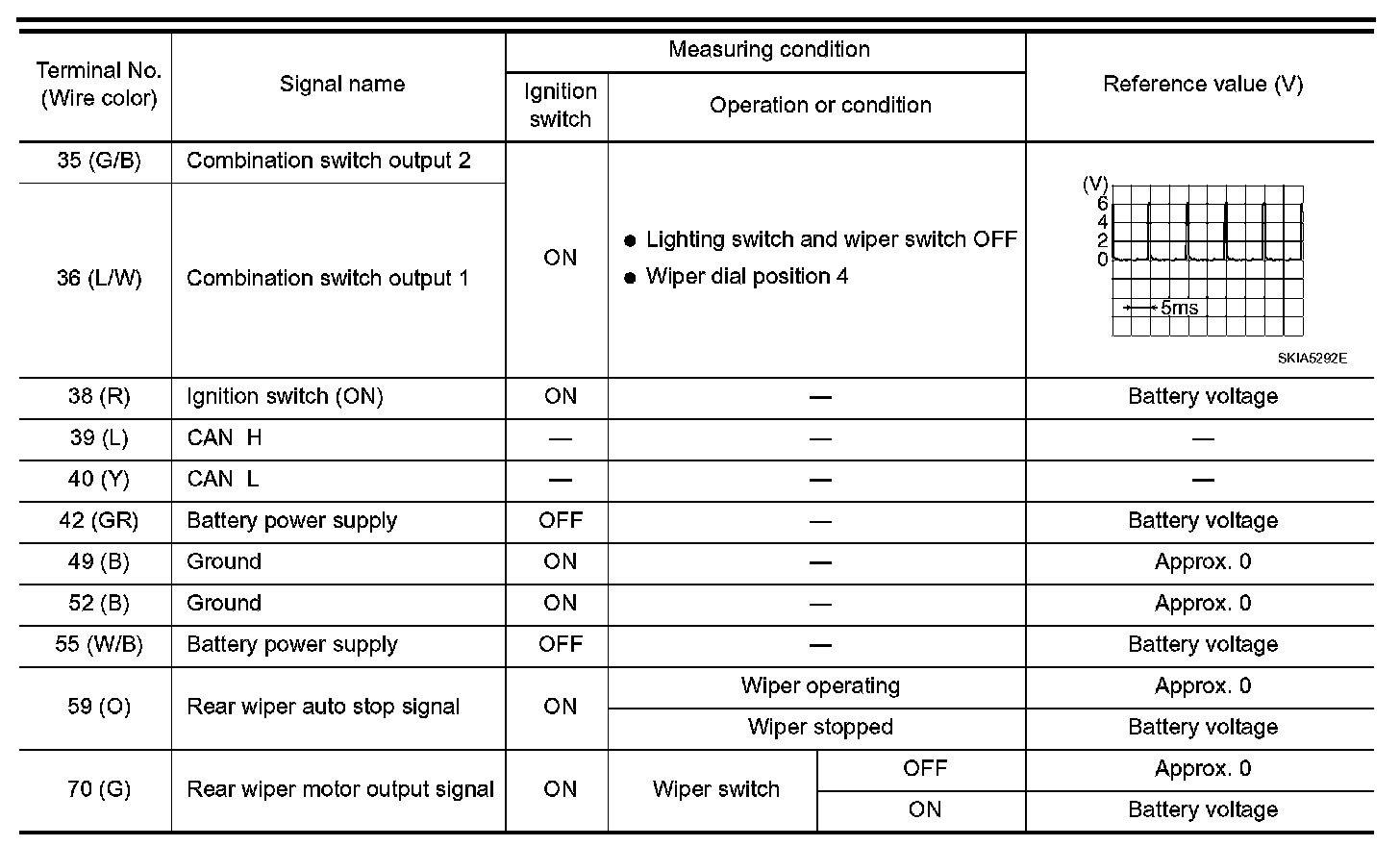

Terminals And Reference Value For BCM Part 2:
