Electronic Brake Control Module

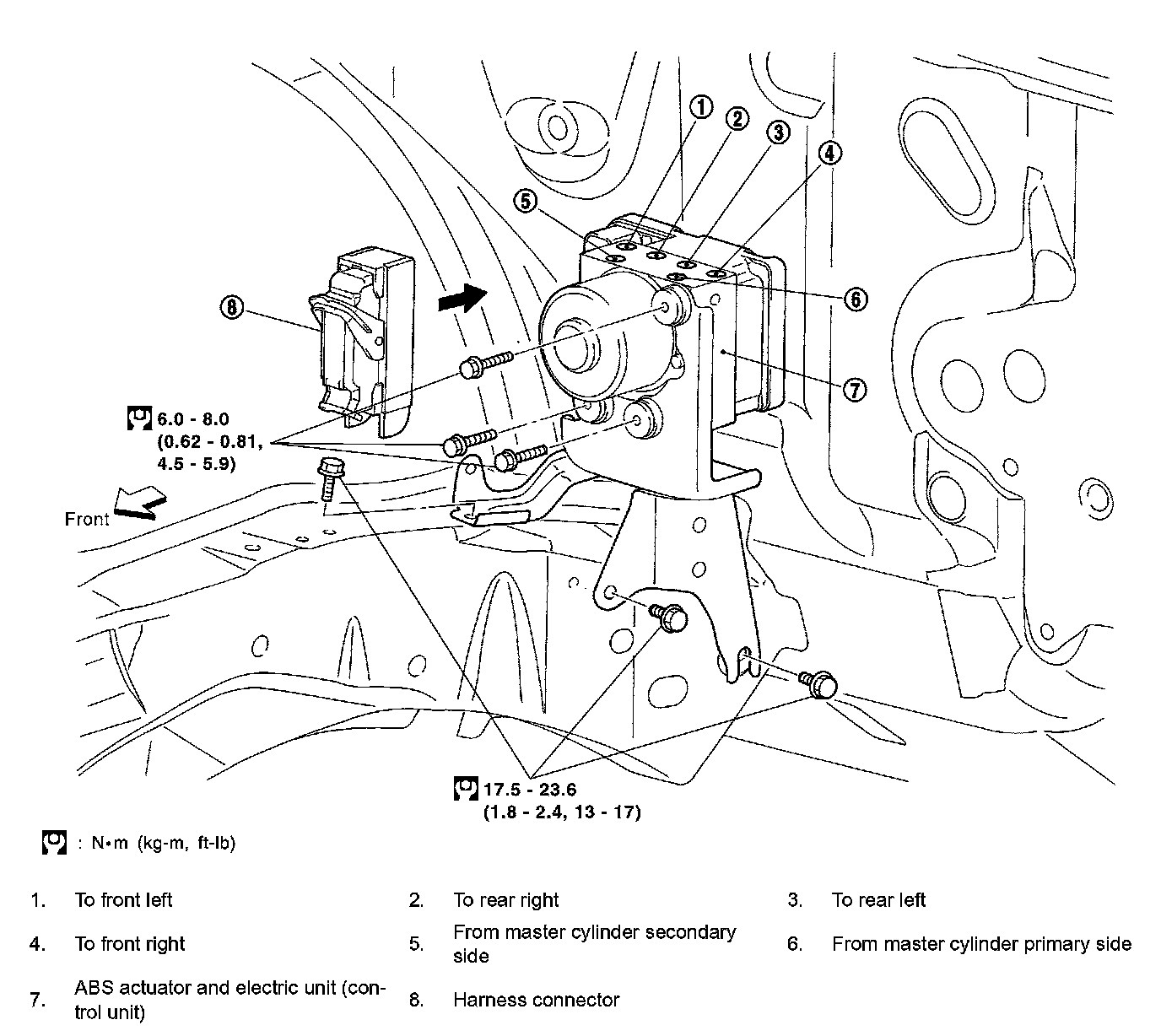

ABS/EBD/VDC/TCS ACTUATOR AND ELECTRIC UNIT (ASSEMBLY):

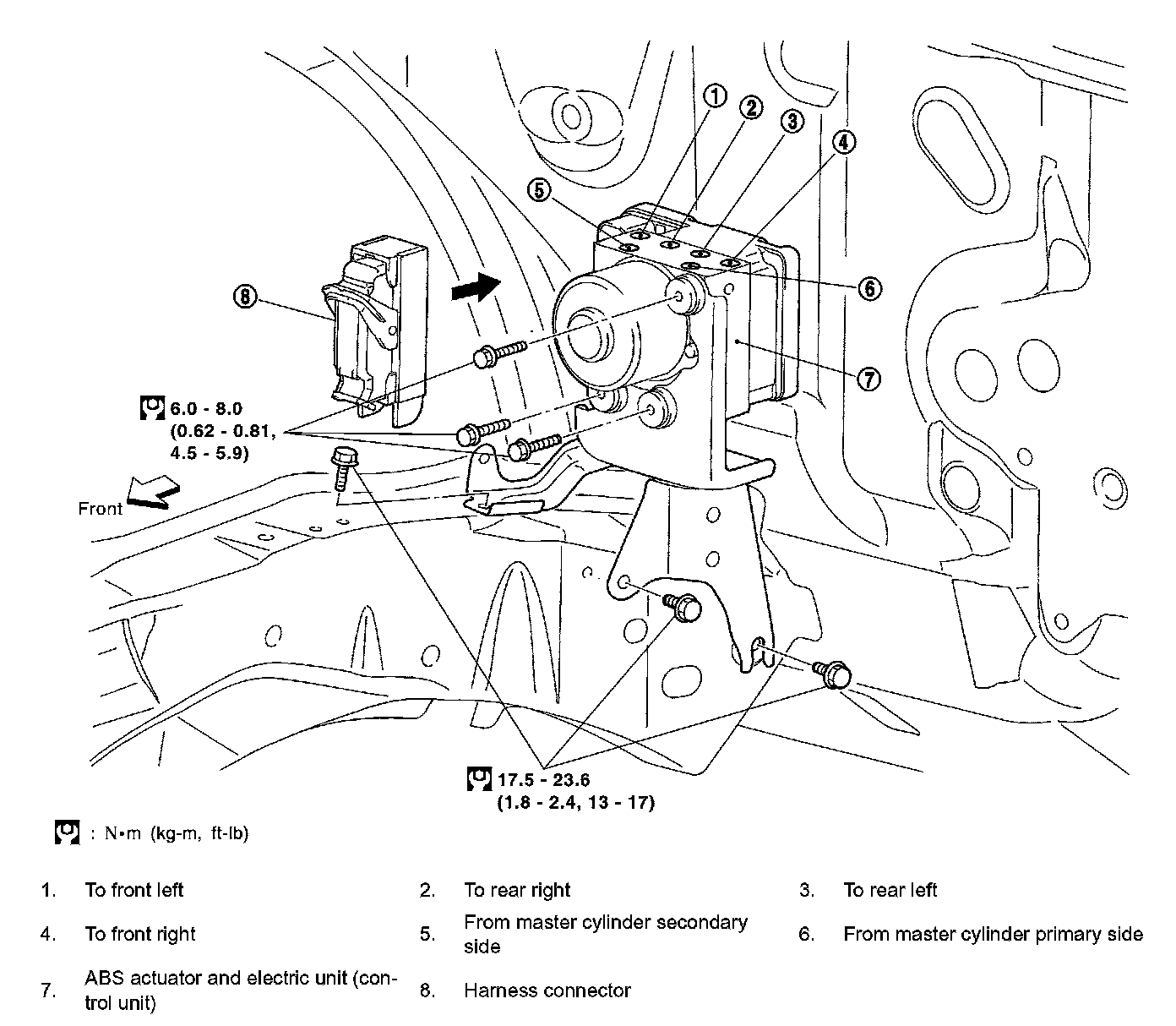

ABS/EDB ACTUATOR AND ELECTRIC UNIT (ASSEMBLY):
