Programming and Relearning

Front Door Limit Switch Reset

RESET CONDITIONS
After each of the following operations are performed, reset the limit
switch (with built-in motor).
- Regulator removal and installation
Removal of motor from regulator
Operation of regulator as a single unit
- Door glass removal and installation
Glass run removal and installation




RESET PROCEDURES
After installing parts, proceed as follows:
1. Close the door window completely.

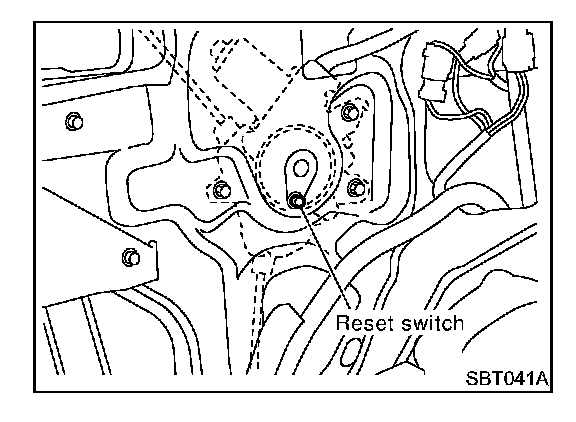

2. Press the reset switch and open the door window completely.
3. Release the reset switch. After making sure the reset switch has returned to the original position, close the door window completely.
4. The limit switch is now reset.

CAUTION: Be sure to manually open or close the door window. (Do not use the automatic open-close procedures.)
