Control Assembly: Service and Repair
CONTROL UNITREMOVAL
1. Remove the three control knobs from the front air control unit.
2. Remove the cluster lid C.

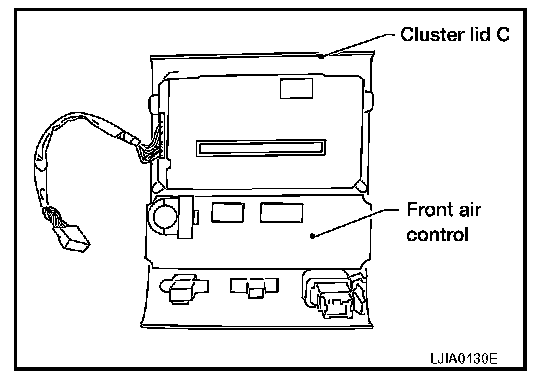

3. Remove the four screws securing the front air control unit to the cluster lid C.
4. Disconnect the two electrical connectors.
5. Remove the front air control unit.
INSTALLATION
Installation is in the reverse order of removal.
