Power Distribution Module: Service and Repair

Removal and Installation of IPDM E/R

REMOVAL
1. Disconnect negative battery cable.

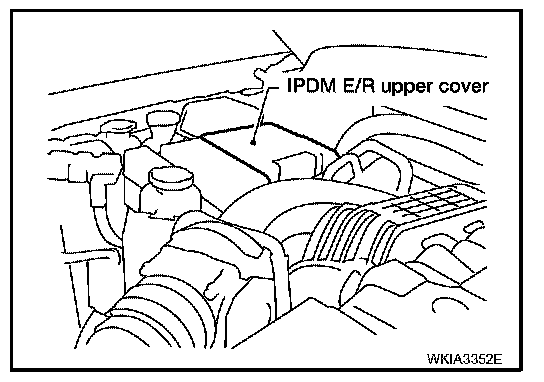

2. Remove IPDM E/R upper cover.

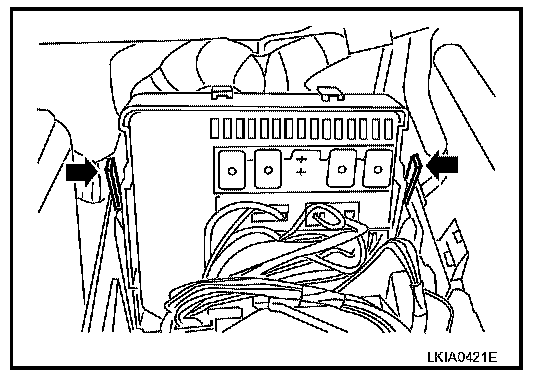

3. Release 2 clips and pull IPDM E/R up from case.
4. Disconnect IPDM E/R connectors and remove the IPDM E/R.

INSTALLATION
Installation is in the reverse order of removal.
- Reset the steering angle sensor calibration after installing the IPDM E/R. Refer to "Adjustment of Steering Angle Sensor Neutral Position".
