Control Module Pinout Values

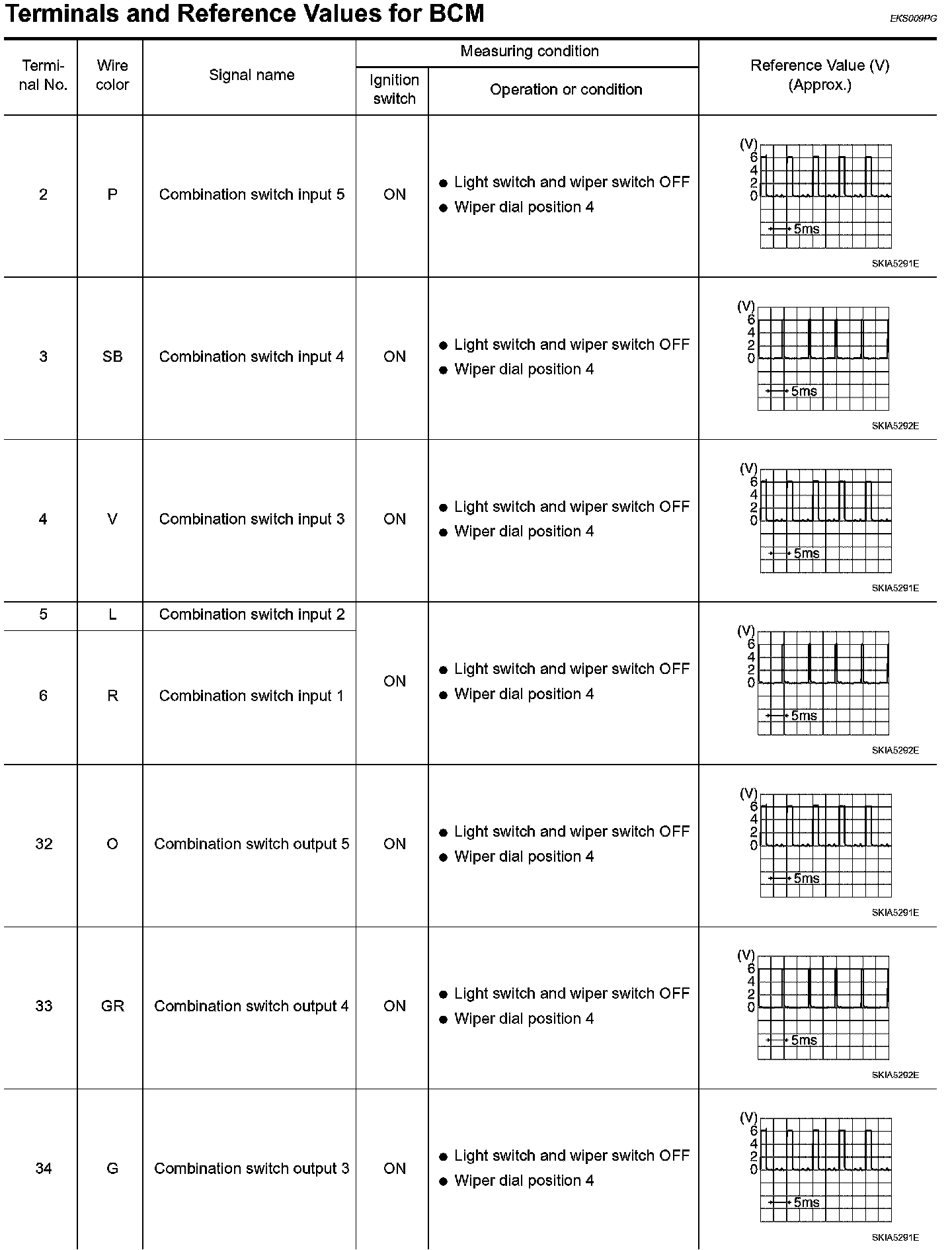

Terminals And Reference Values For BCM Part 1:

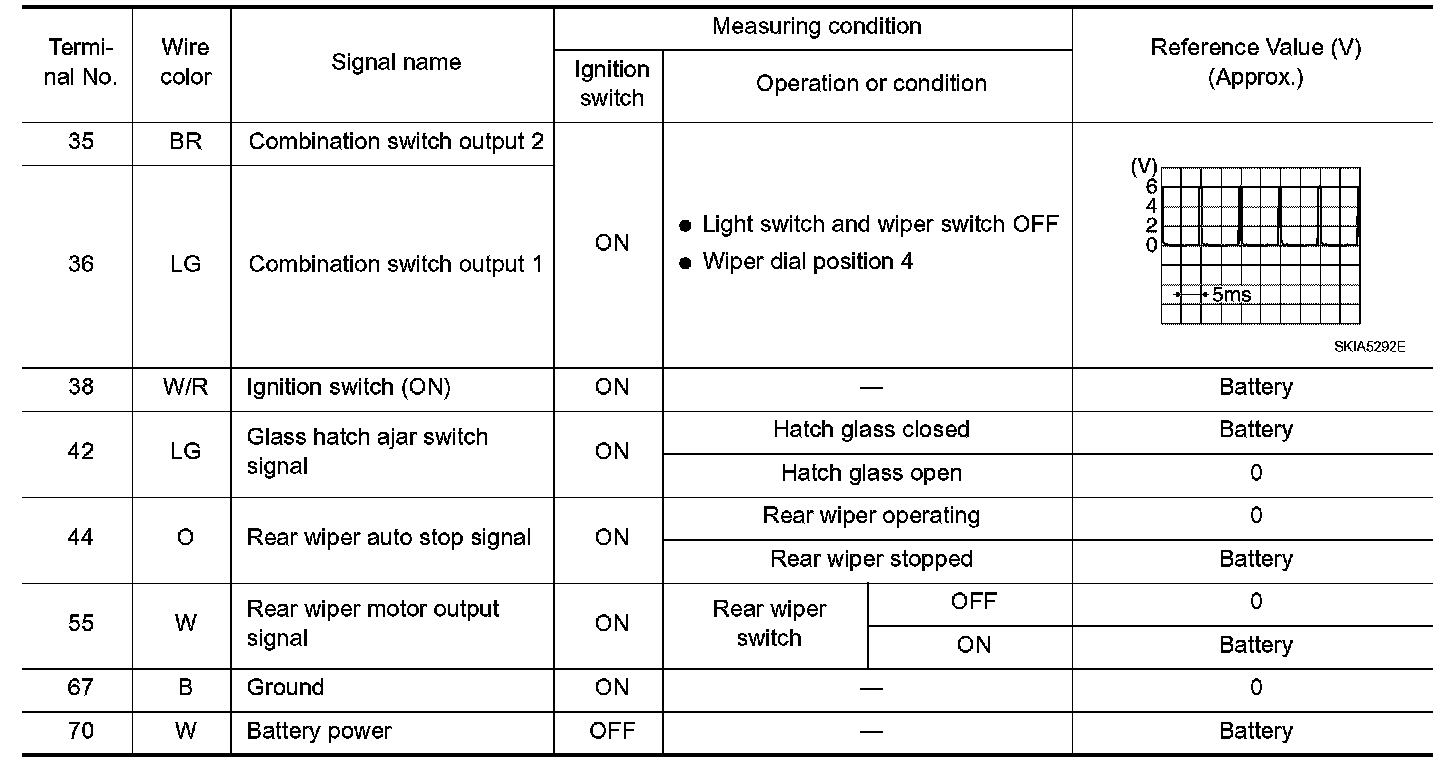

Terminals And Reference Values For BCM Part 2:
