Control Module: Service and Repair

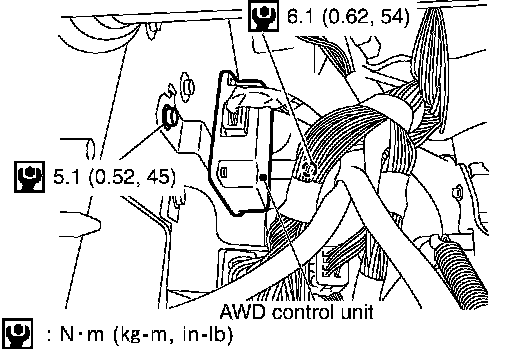

AWD CONTROL UNIT

Removal and Installation
REMOVAL





1. Remove instrument driver lower panel.
2. Remove fuse block (J/B).
3. Disconnect AWD control unit connector.
4. Remove AWD control unit.

INSTALLATION
Install in the reverse order of removal.
