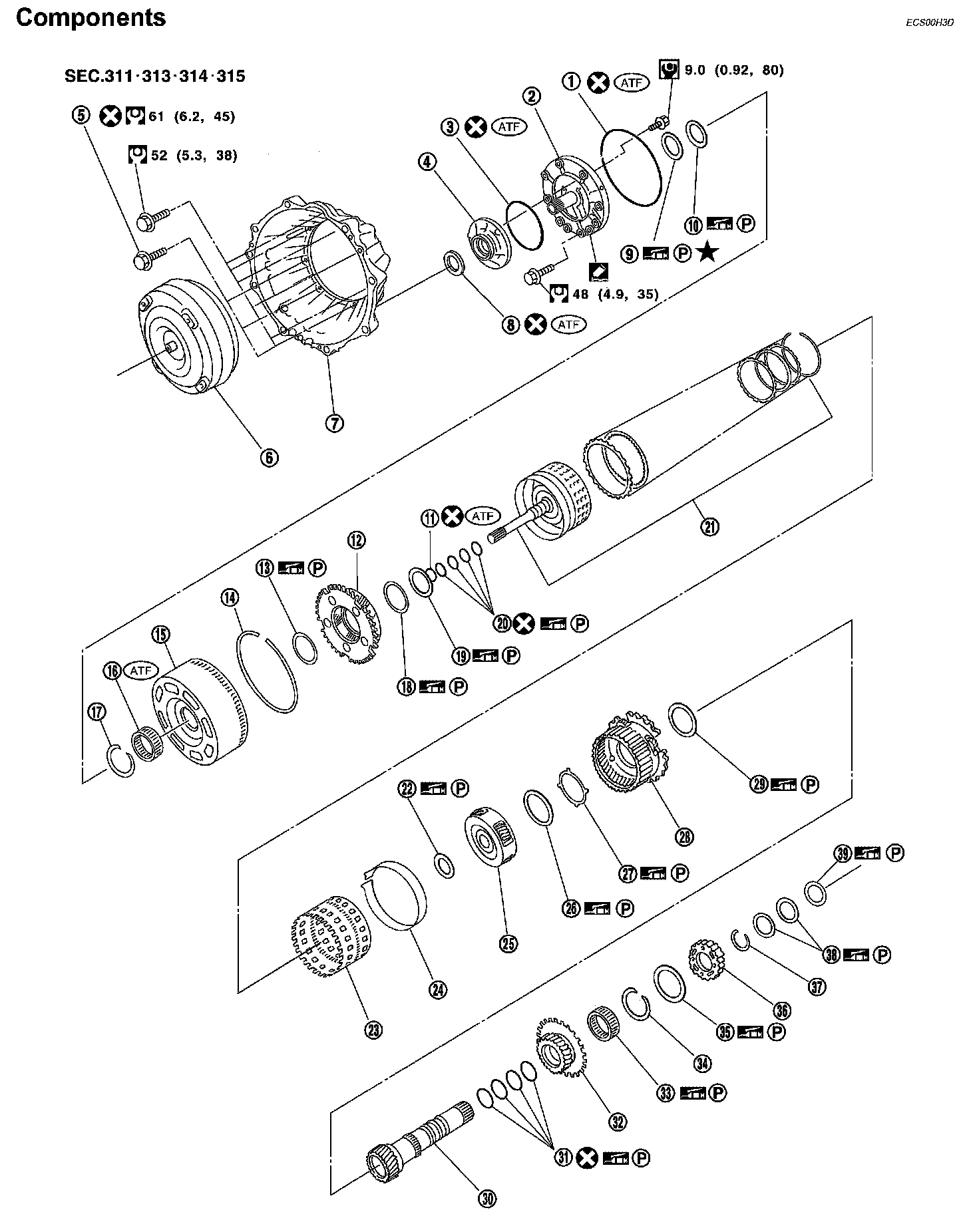

Components

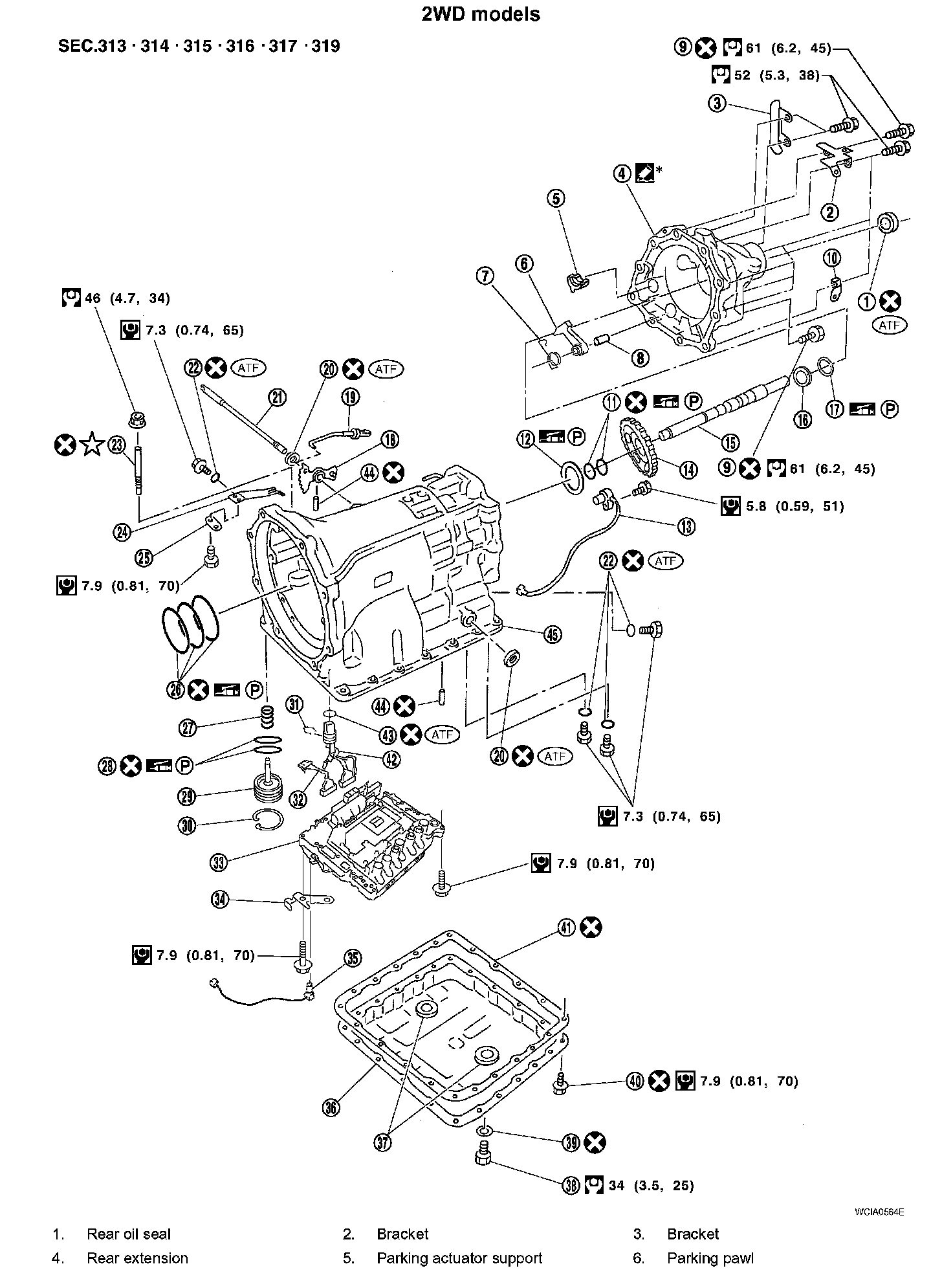

Exploded View AT-245 (Part 1):

Exploded View AT-245 (Part 2):

Exploded View AT-247 (Part 1):

Exploded View AT-247 (Part 2):

Exploded View AT-249 (Part 1):

Exploded View AT-249 (Part 2):

Exploded View AT-251 (Part 1):

Exploded View AT-251 (Part 2):
