Engine Control System Component Parts Locations

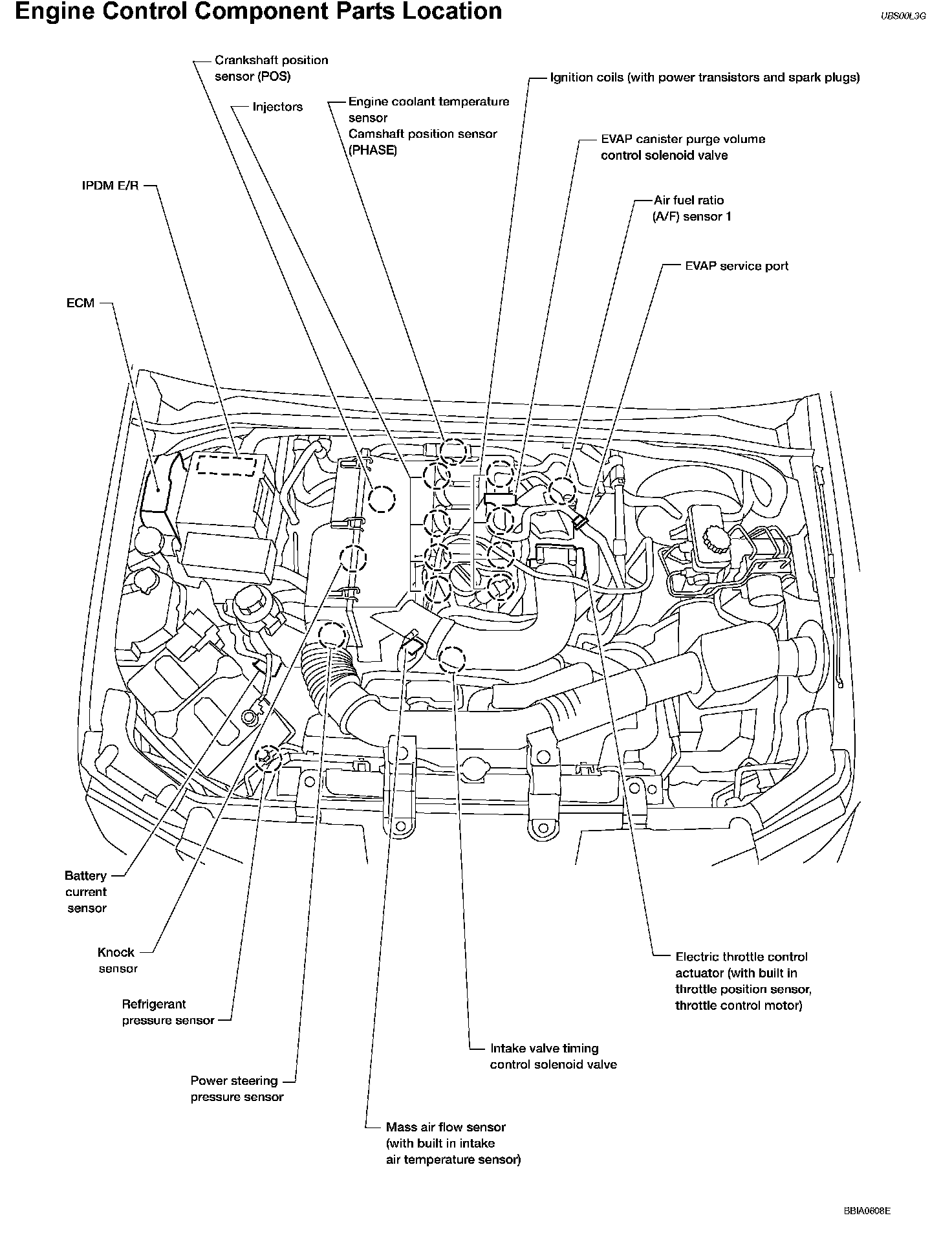

Engine Control Component Parts Location:

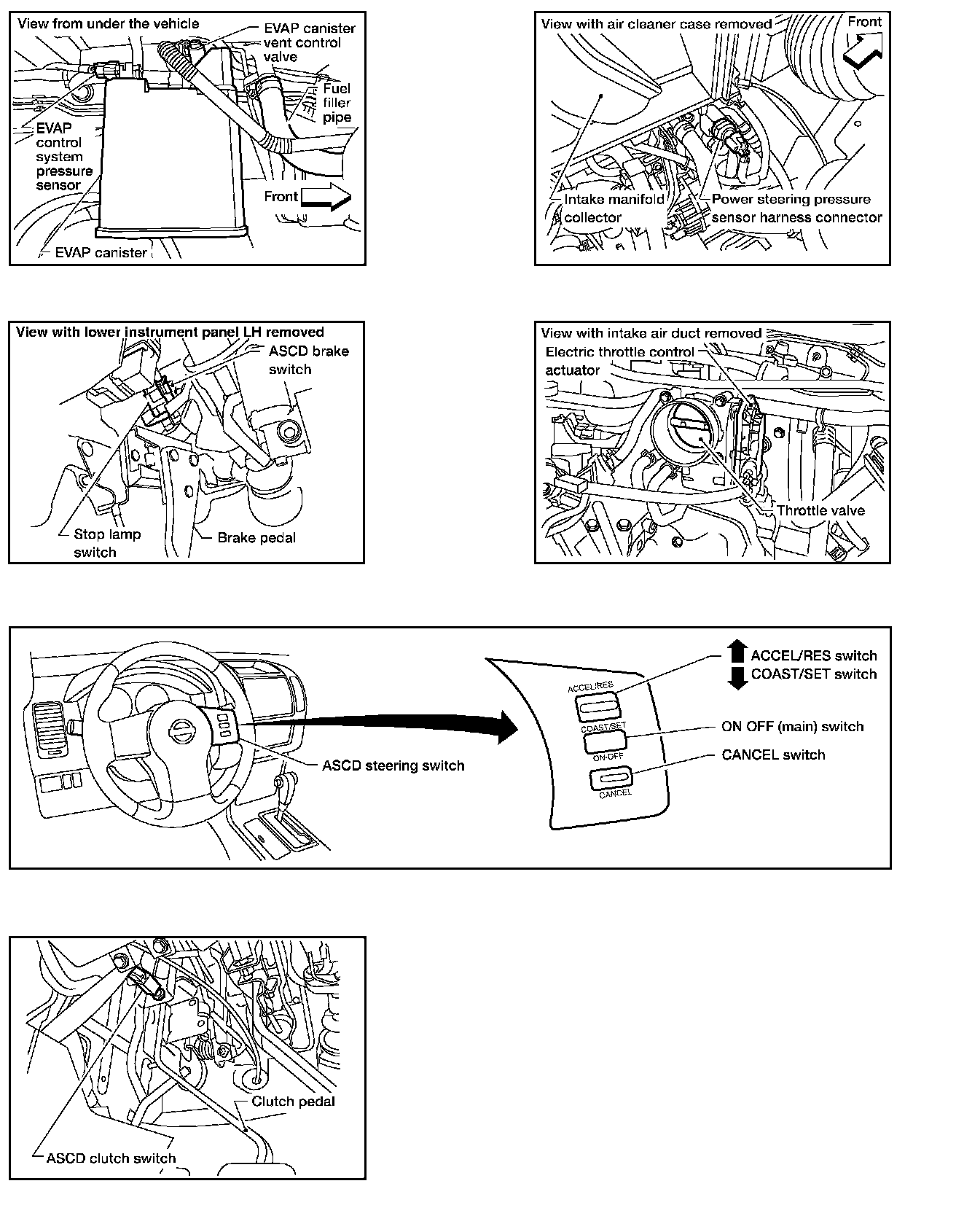

Engine Control Component Parts Location:
