CAN System Specification Chart

CAN System Specification Chart

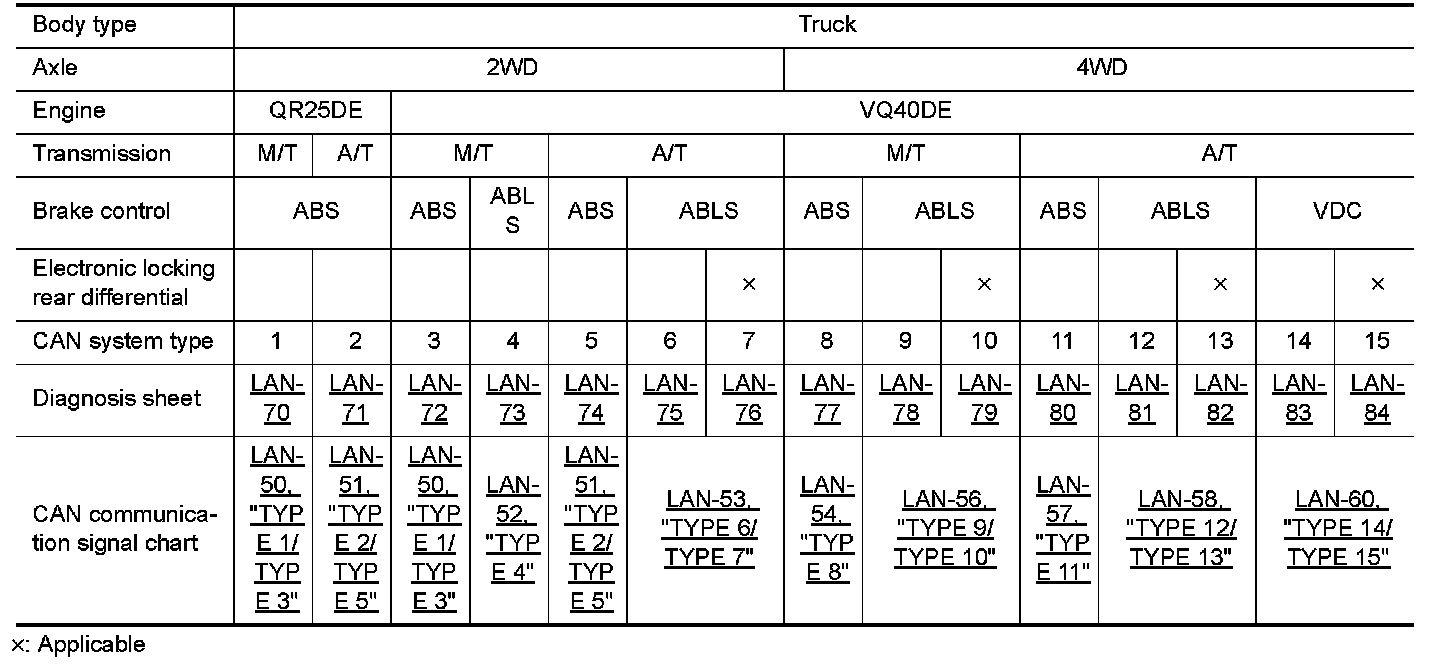

Determine CAN system type from the following specification chart. Then choose the correct diagnosis sheet.

NOTE: Refer to "CHECK OF CAN SYSTEM TYPE (HOW TO USE CAN SYSTEM TYPE SPECIFICATION CHART)" for how to use CAN system specification chart.

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION

NOTE: Check CAN system type from the vehicle shape and equipment.

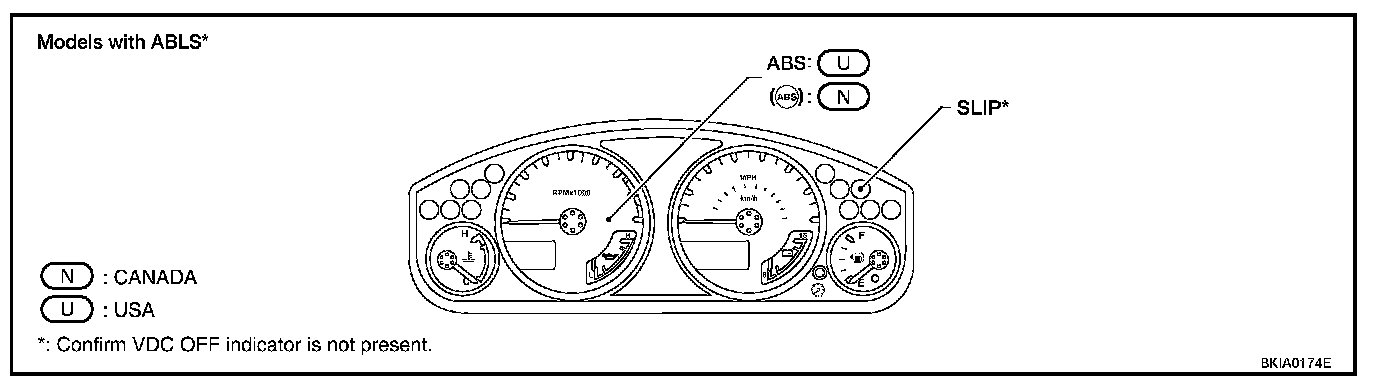

- Models with ABLS

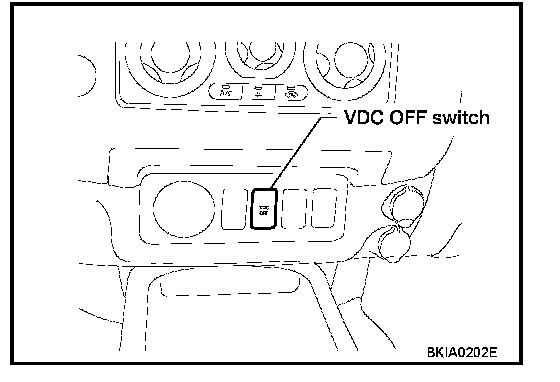

- Models with VDC

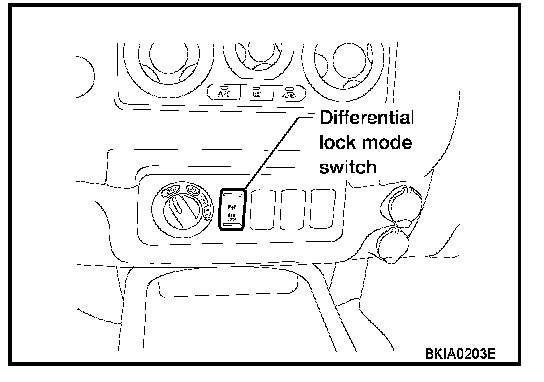

- Models with electronic locking rear differential.
