Scan Tool Testing and Procedures

TROUBLE DIAGNOSIS

CAN Diagnostic Support Monitor
Use "CAN DIAG SUPPORT MNTR" for detecting the root cause.







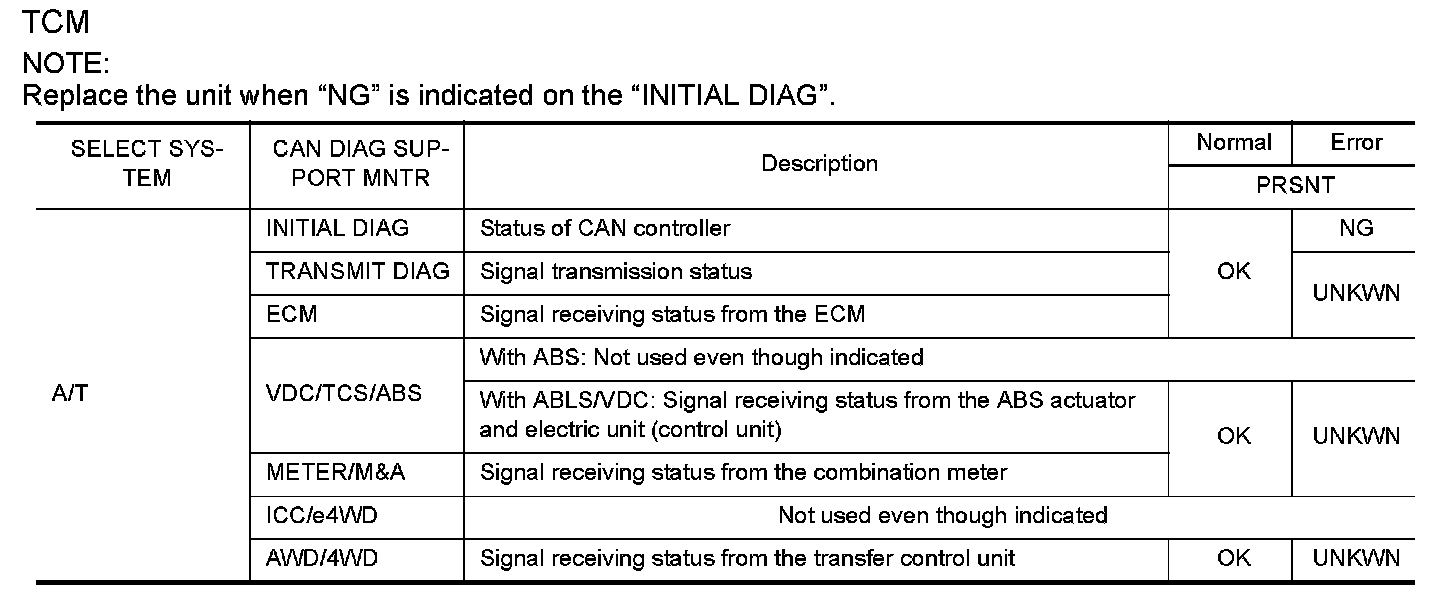

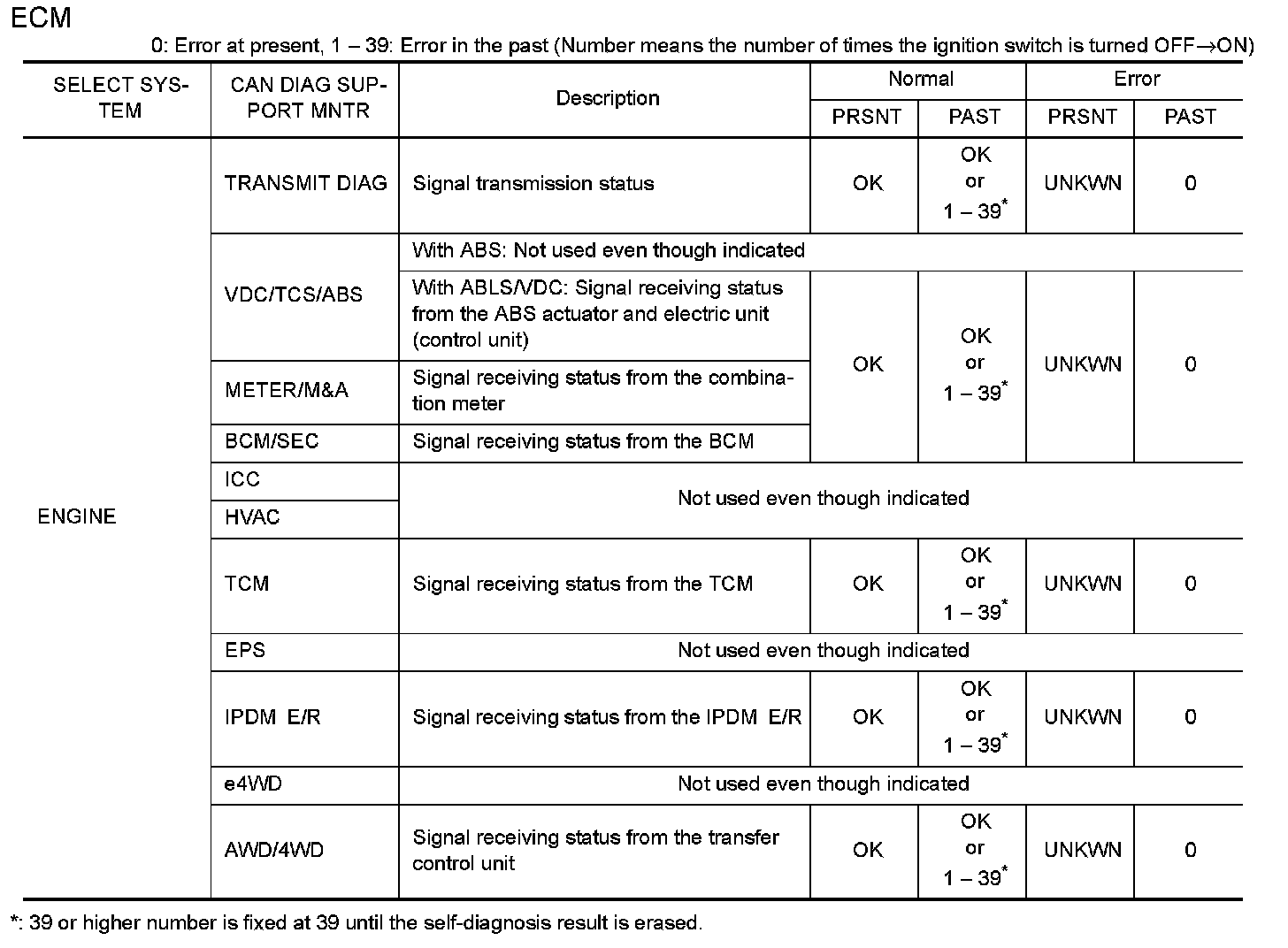

MONITOR ITEM LIST (CONSULT-II)




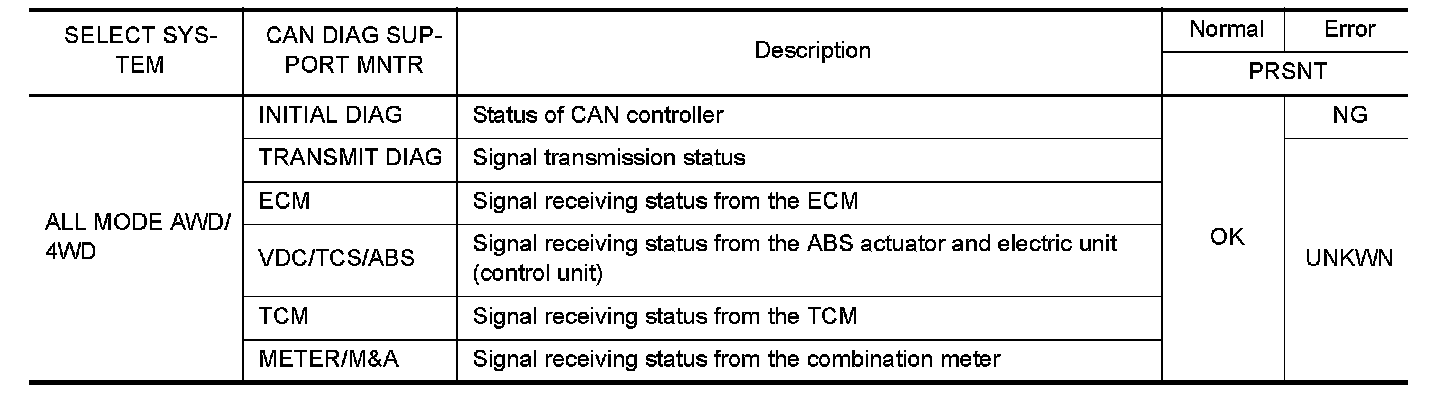

Transfer Control Unit

NOTE: Replace the unit when "NG" is indicated on the "INITIAL DIAG".

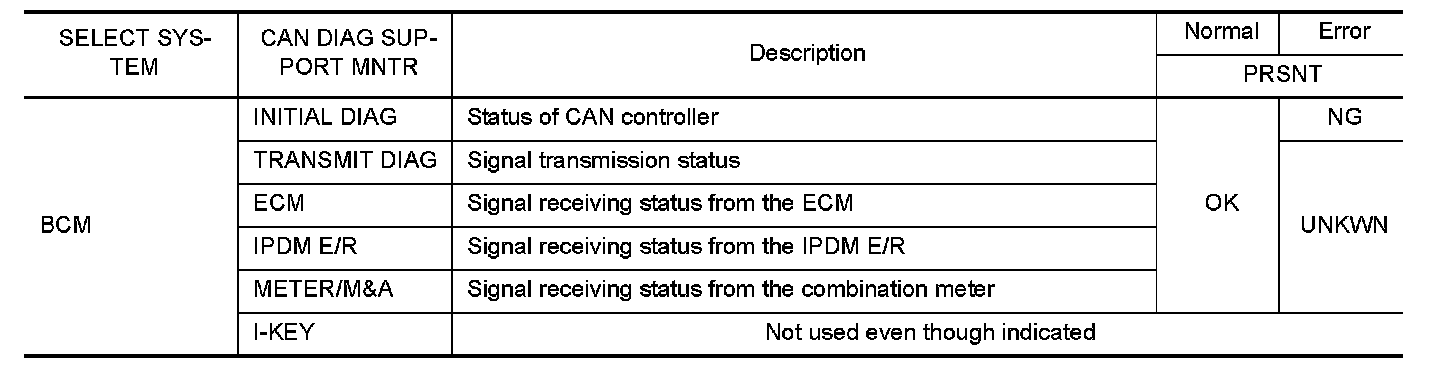

BCM

NOTE: Replace the unit when "NG" is indicated on the "INITIAL DIAG".




Differential Lock Control Unit

NOTE: Replace the unit when "NG" is indicated on the "INITIAL DIAG".

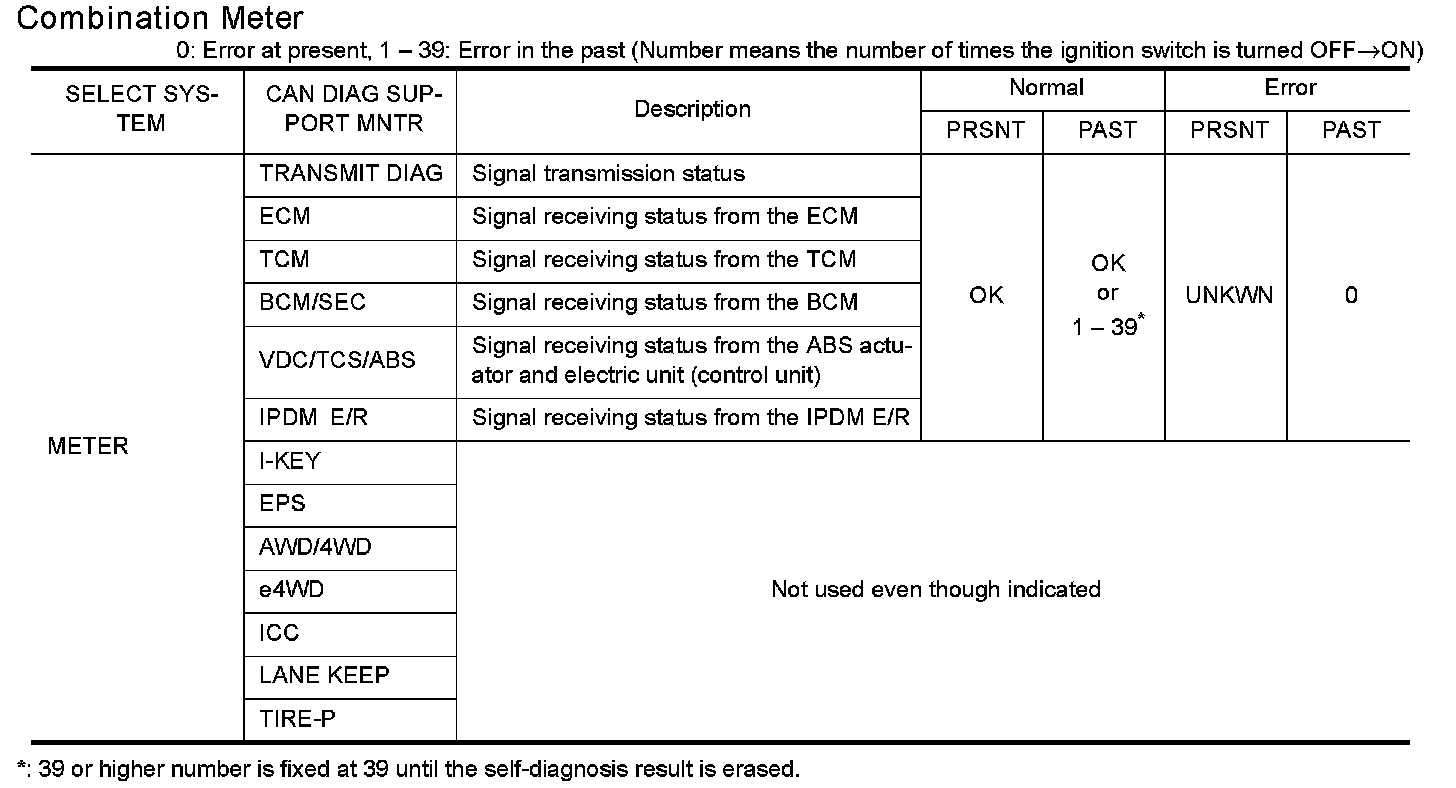

Combination Meter

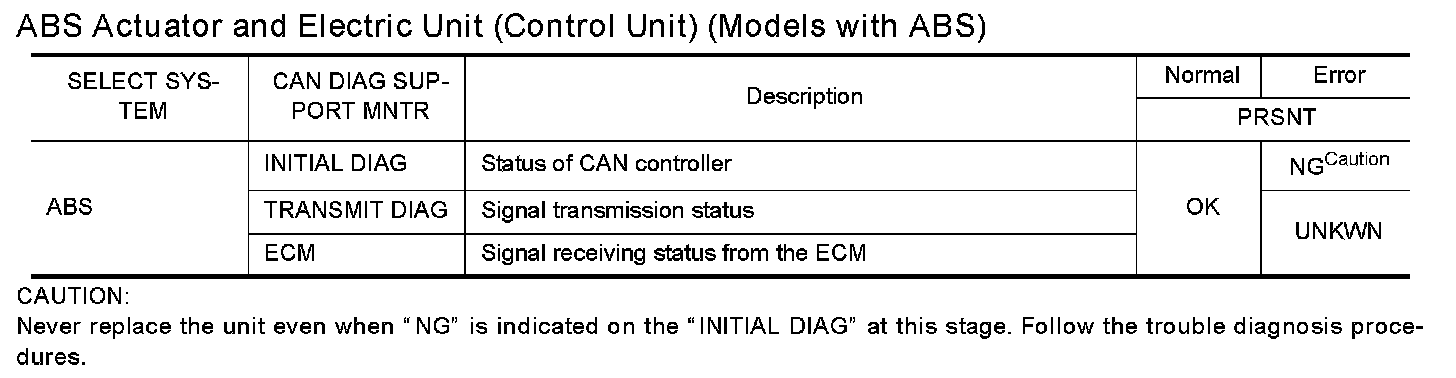

ABS Actuator and Electric Unit (Control Unit) (Models with ABS)




ABS Actuator and Electric Unit (Control Unit) (Models with ABLS/Models with VDC)

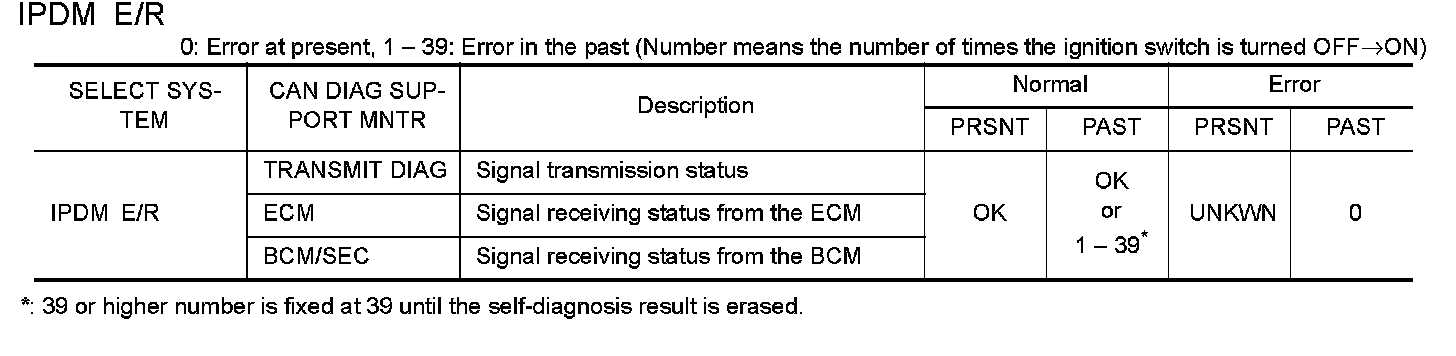

IPDM E/R
