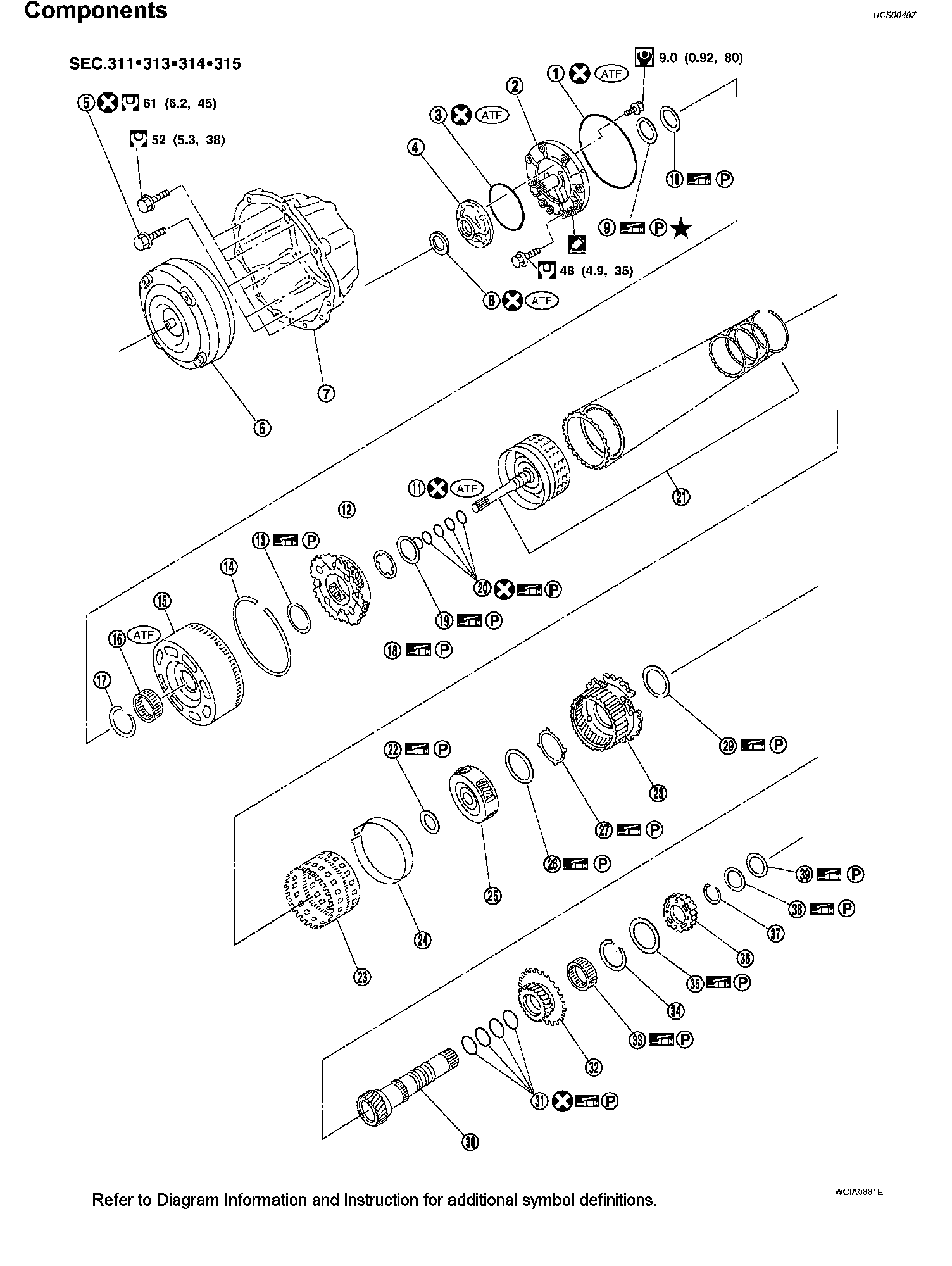

Components

OVERHAUL

Exploded View AT-254 (Part 1):

Exploded View AT-254 (Part 2):

Components

Exploded View AT-256 (Part 1):

Exploded View AT-256 (Part 2):

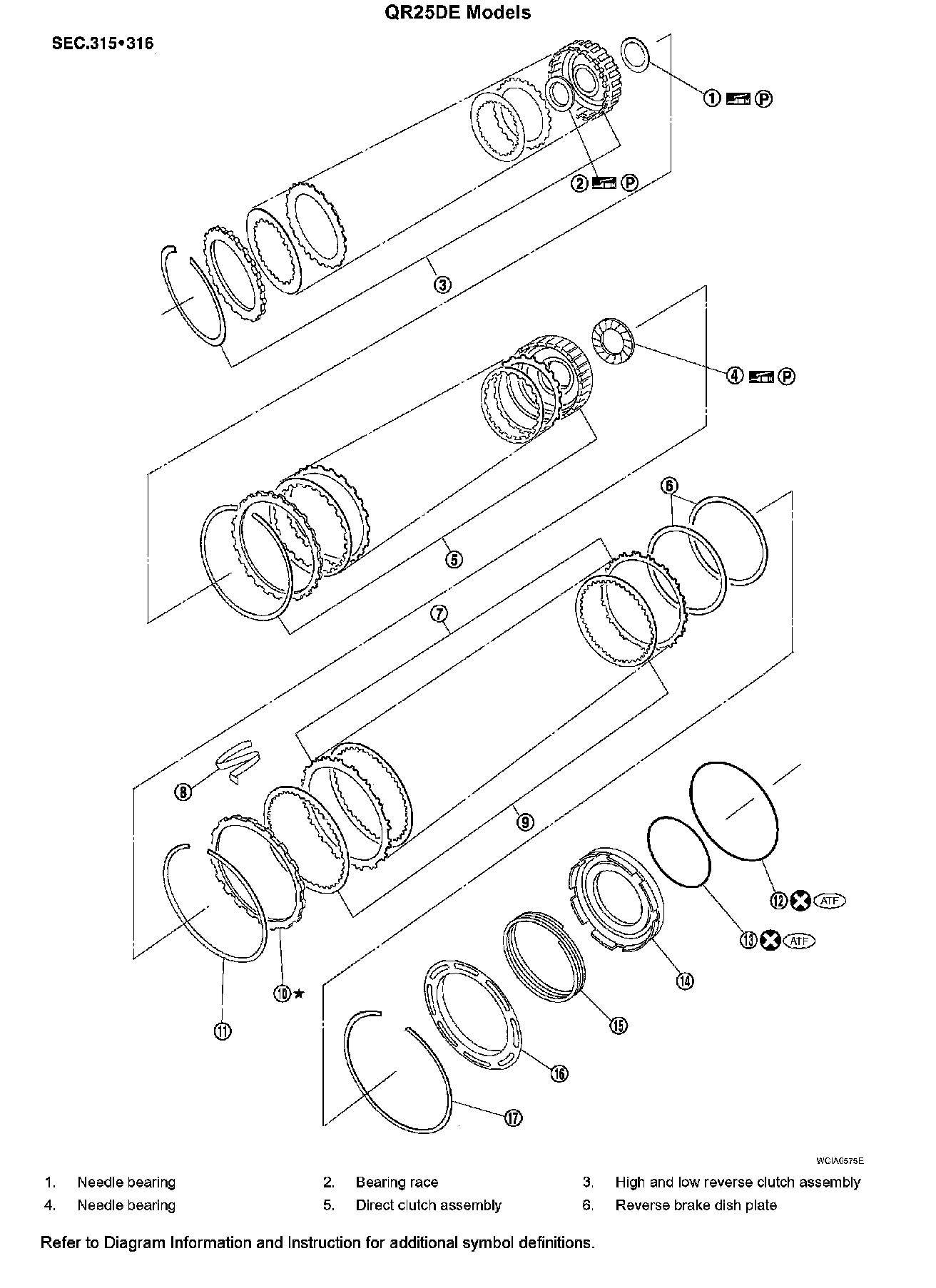

QR25DE Models

Exploded View AT-258 (Part 1):

Exploded View AT-258 (Part 2):

VQ40DE Models

Exploded View AT-260 (Part 1):

Exploded View AT-260 (Part 2):

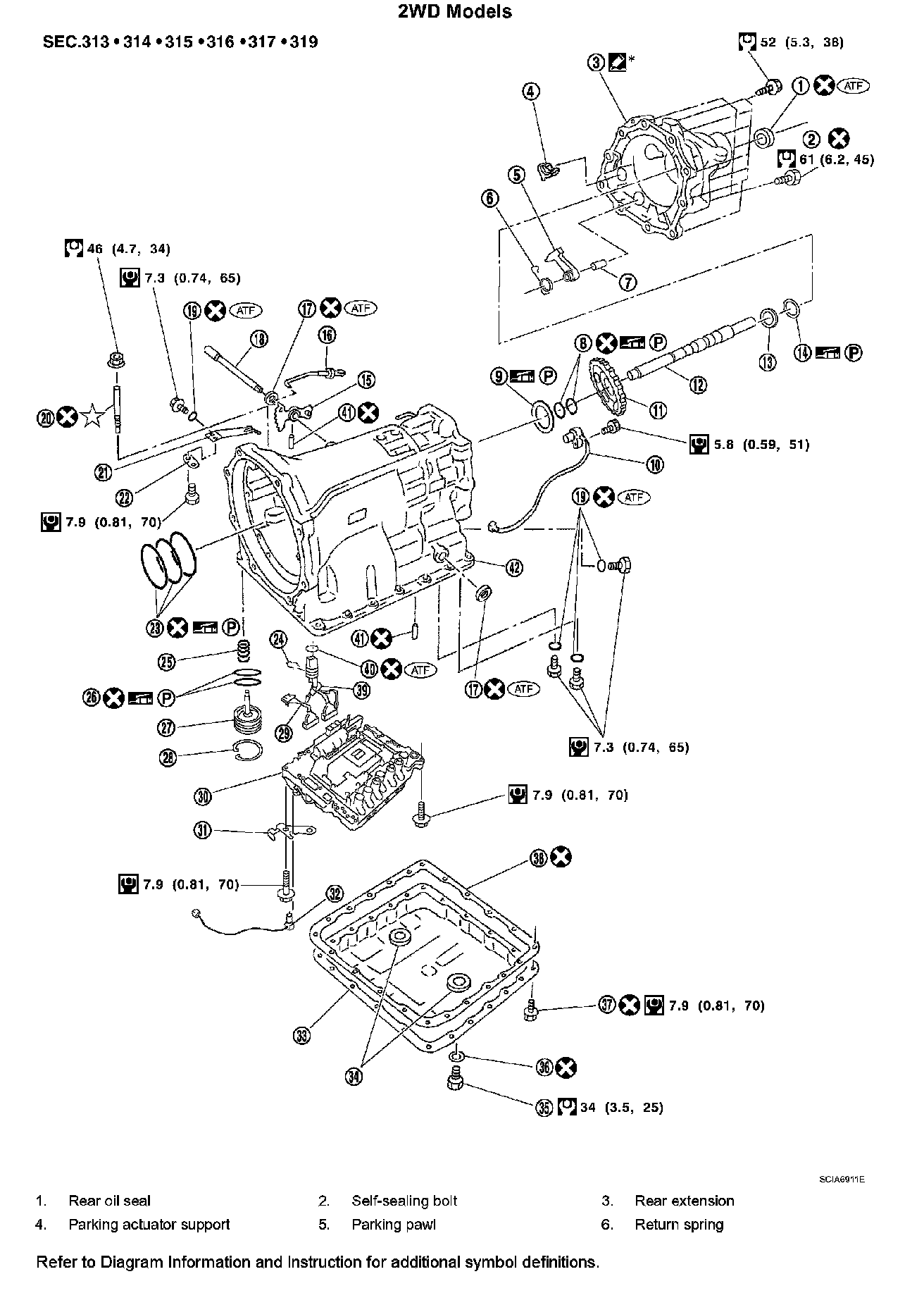

2WD Models

Exploded View AT-262 (Part 1):

Exploded View AT-262 (Part 2):

4WD Models
