Body Control Module: Service and Repair
Removal and InstallationBCM
Removal
NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to BCS-19, "Configuration". Testing and Inspection
1. Disconnect battery negative terminal.
2. Remove lower instrument panel LH. Refer to "LOWER INSTRUMENT PANEL LH".
3. Remove knee protector.

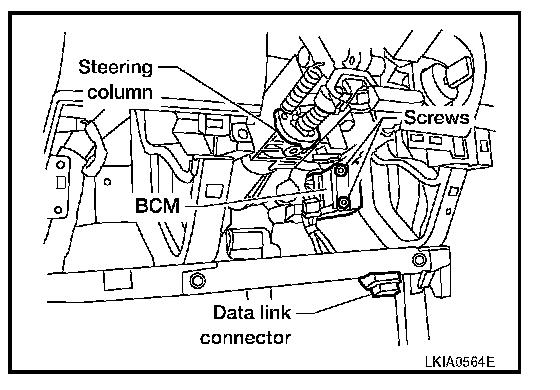

4. Remove BCM screws and release BCM.
5. Disconnect BCM connectors and then remove BCM.
Installation
Installation is in the reverse order of removal.
NOTE:
- When replacing BCM, it must be configured. Refer to BCS-19, "Configuration". Testing and Inspection
- When replacing BCM, perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-94, "NVIS(NISSAN Vehicle Immobilizer System-NATS)". Vehicle Immobilizer System
- When replacing BCM, perform ID registration procedure of low tire pressure warning system. Refer to WT-13, "ID Registration Procedure". ID Registration Procedure
- When replacing BCM, register the remote keyless entry system keyfob ID codes. Refer to "ID Code Entry Procedure".
- When replacing BCM, perform adjustment procedure for the steering angle sensor. Refer to BRC-126, "Adjustment of Steering Angle Sensor Neutral Position". Testing and Inspection
