Intelligent Key System/Engine Start Function

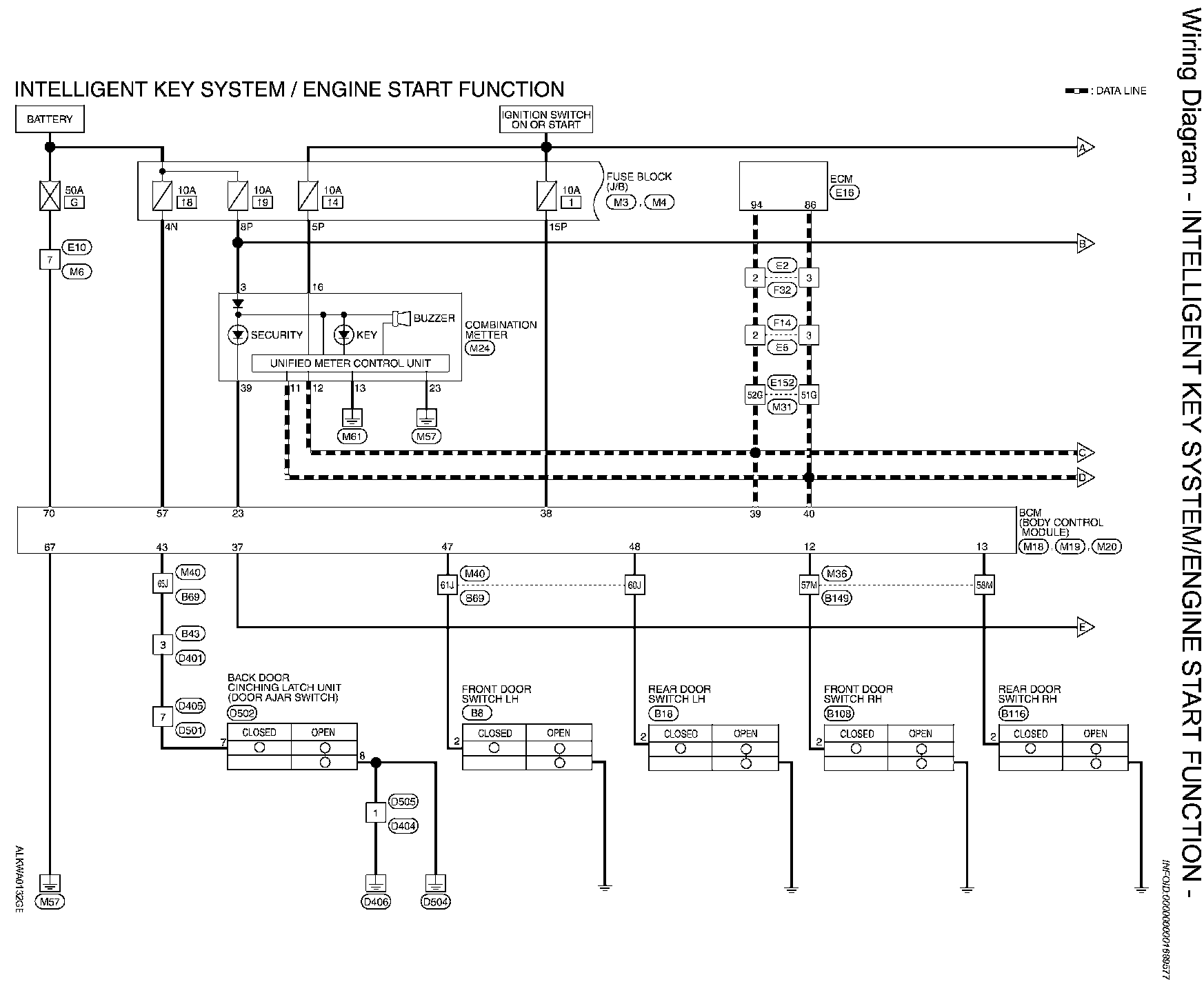

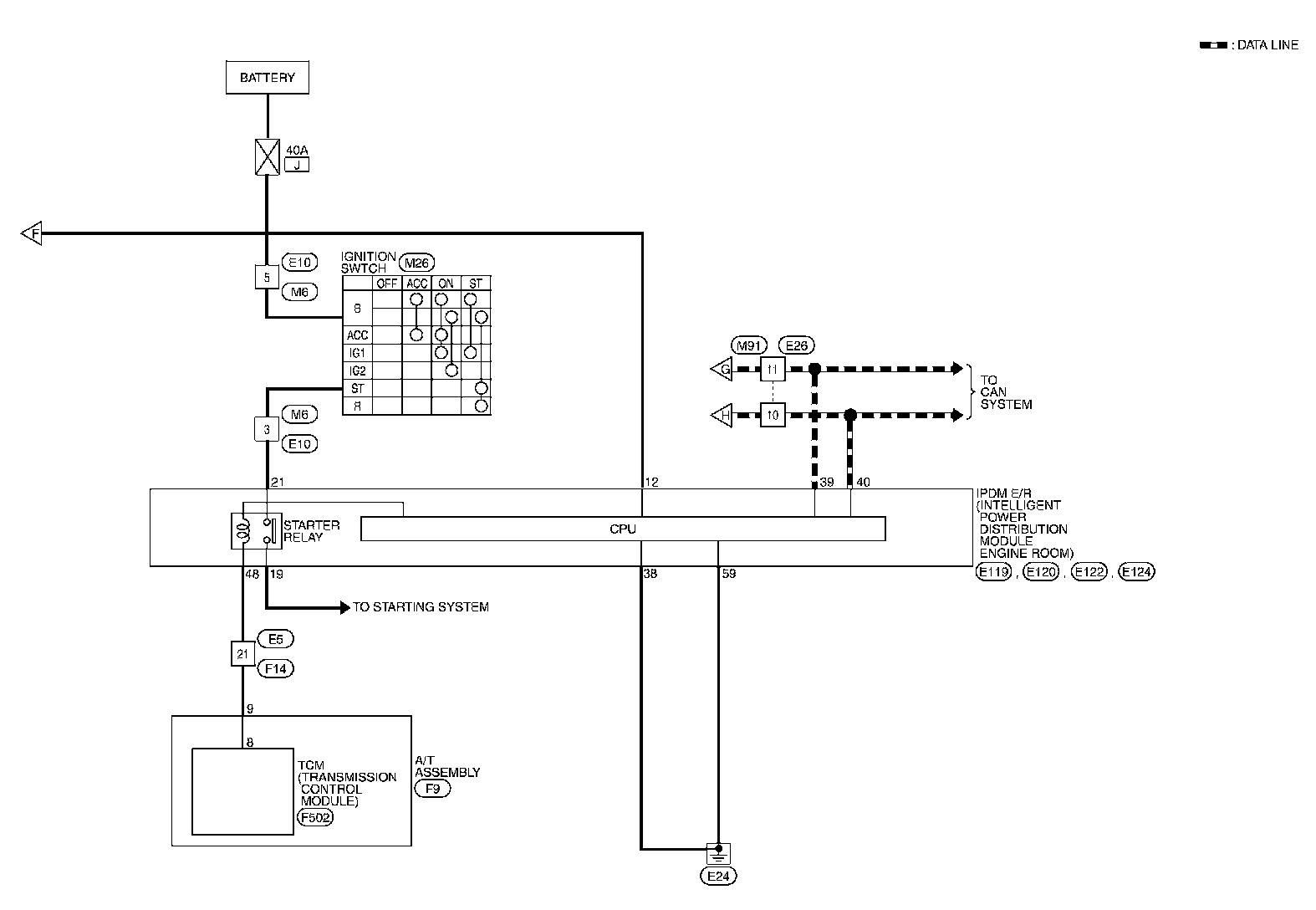

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 1:

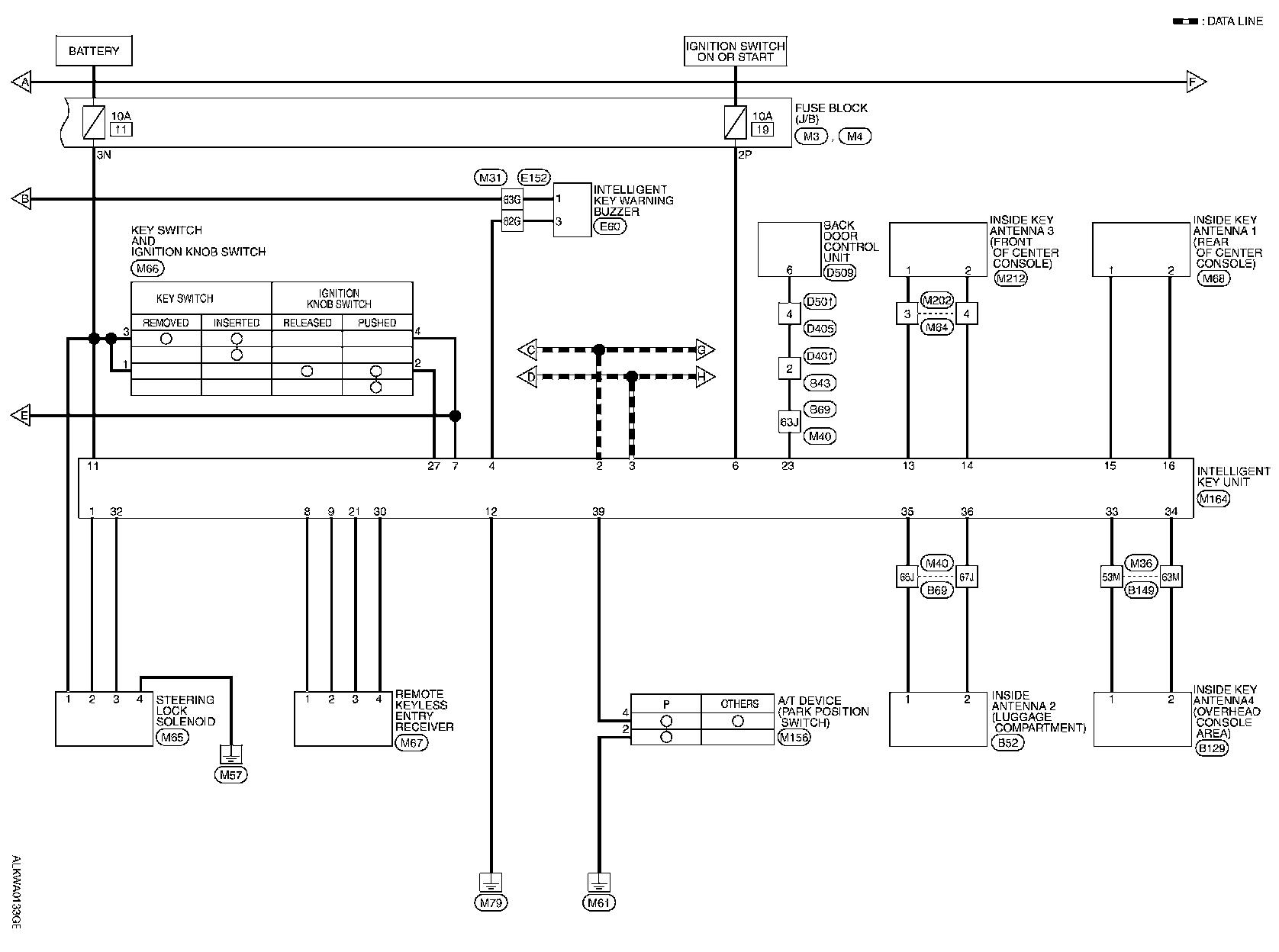

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 2:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 3:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 4:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 5:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 6:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 7:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 8:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 9:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 10:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 11:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 12:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 13:

Wiring Diagram - Intelligent Key System/Engine Start Funtion - Part 14:
