Body Control Module: Service and Repair
ON-VEHICLE REPAIRBCM (BODY CONTROL MODULE)
Removal and Installation
REMOVAL
NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to BCS-4, "CONFIGURATION : Special Repair Requirement". Testing and Inspection
1. Disconnect the battery negative terminal.
2. Remove the lower instrument panel LH.
3. Remove the knee protector.

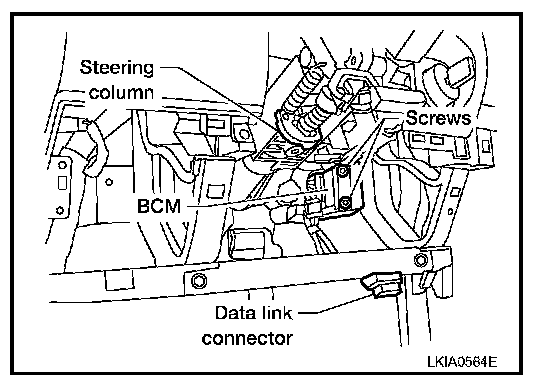

4. Remove the BCM screws and release the BCM.
5. Disconnect the BCM connectors and then remove the BCM.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
- When replacing the BCM, it must be configured. Refer to BCS-4, "CONFIGURATION : Special Repair Requirement". Testing and Inspection
- When replacing the BCM, perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to SEC-8. Antitheft and Alarm Systems
- When replacing the BCM, perform ID registration procedure of low tire pressure warning system. Refer to WT-6, "ID Registration Procedure". ID Registration Procedure
- When replacing the BCM, register the remote keyless entry system keyfob ID codes. Refer to DLK-11, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement". With Intelligent Key System
- When replacing the BCM, perform adjustment procedure for the steering angle sensor. Refer to BRC-11, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement" (VDC/TCS/ABS) Testing and Inspection or BRC-131, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement" (HDC/HSA/VDS/TCS/ABS). Testing and Inspection
