Keyless Entry Module: Service and Repair

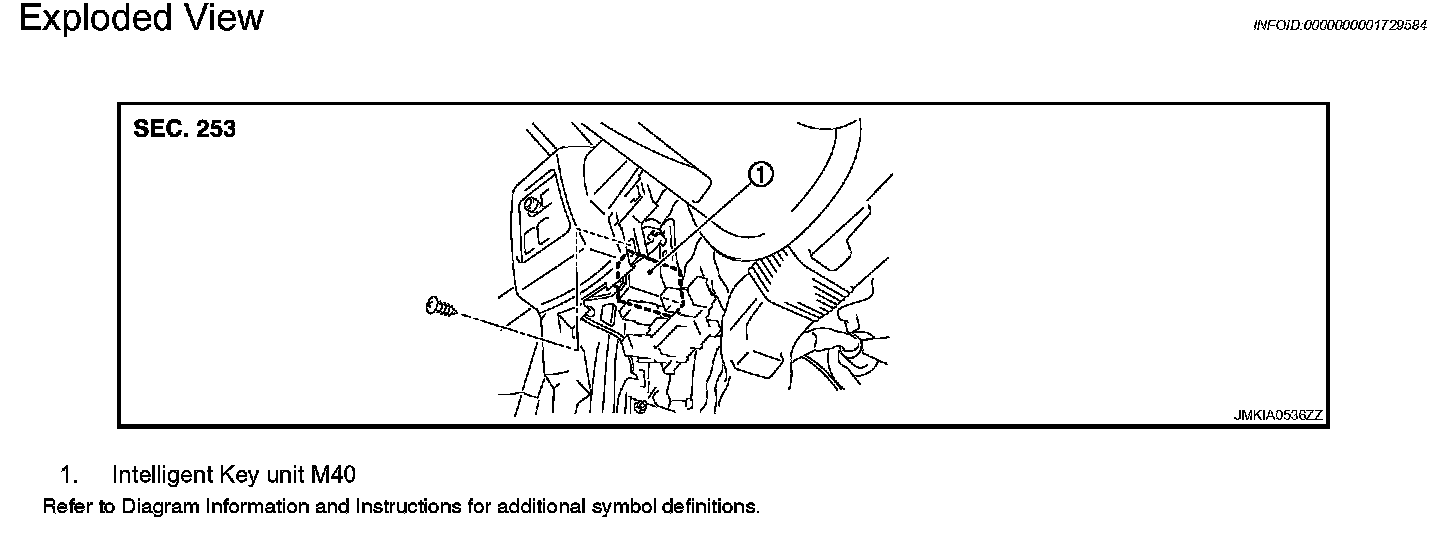

INTELLIGENT KEY UNITExploded View
Exploded View DLk-309:
Removal and Installation
REMOVAL
1. Remove lower instrument panel (driver side) and mirror switch finisher.

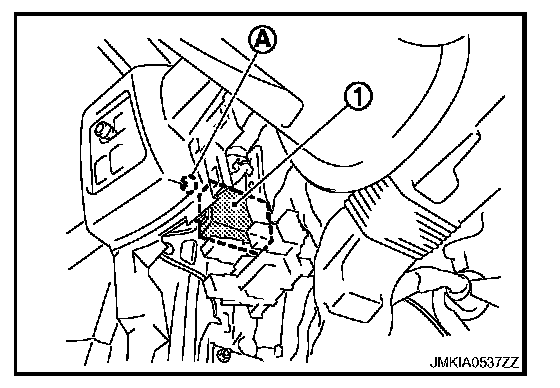

2. Remove the Intelligent Key unit mounting screw (A), and then remove Intelligent Key unit (1).
NOTE: Perform the system initialization when replacing Intelligent Key unit. Refer to DLK-15, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement". Additional Service When Replacing Control Unit
INSTALLATION
Install in the reverse order of removal.
