Remote Keyless Entry Control System

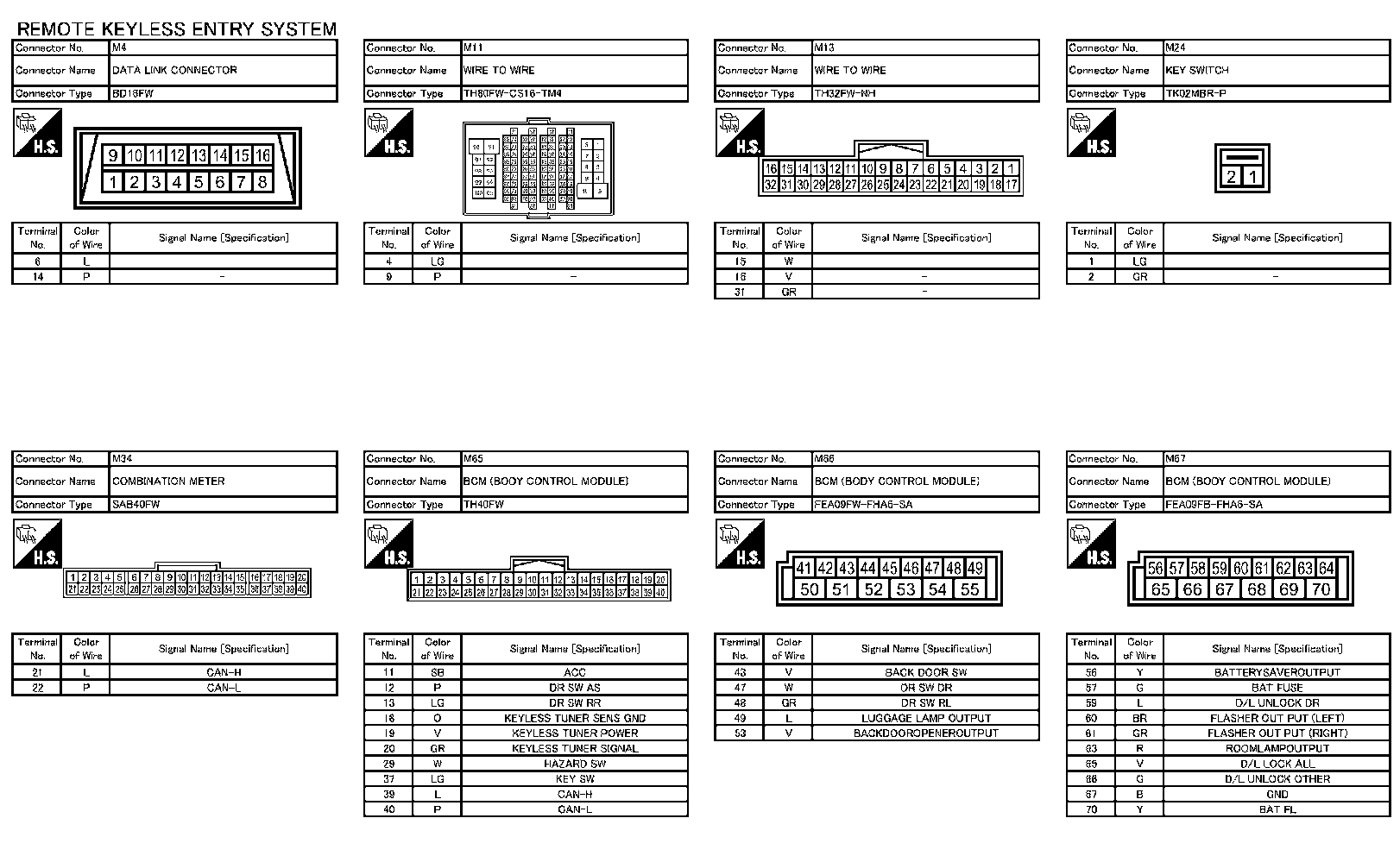

Wiring Diagram - Remote Keyless Entry System - Part 1:

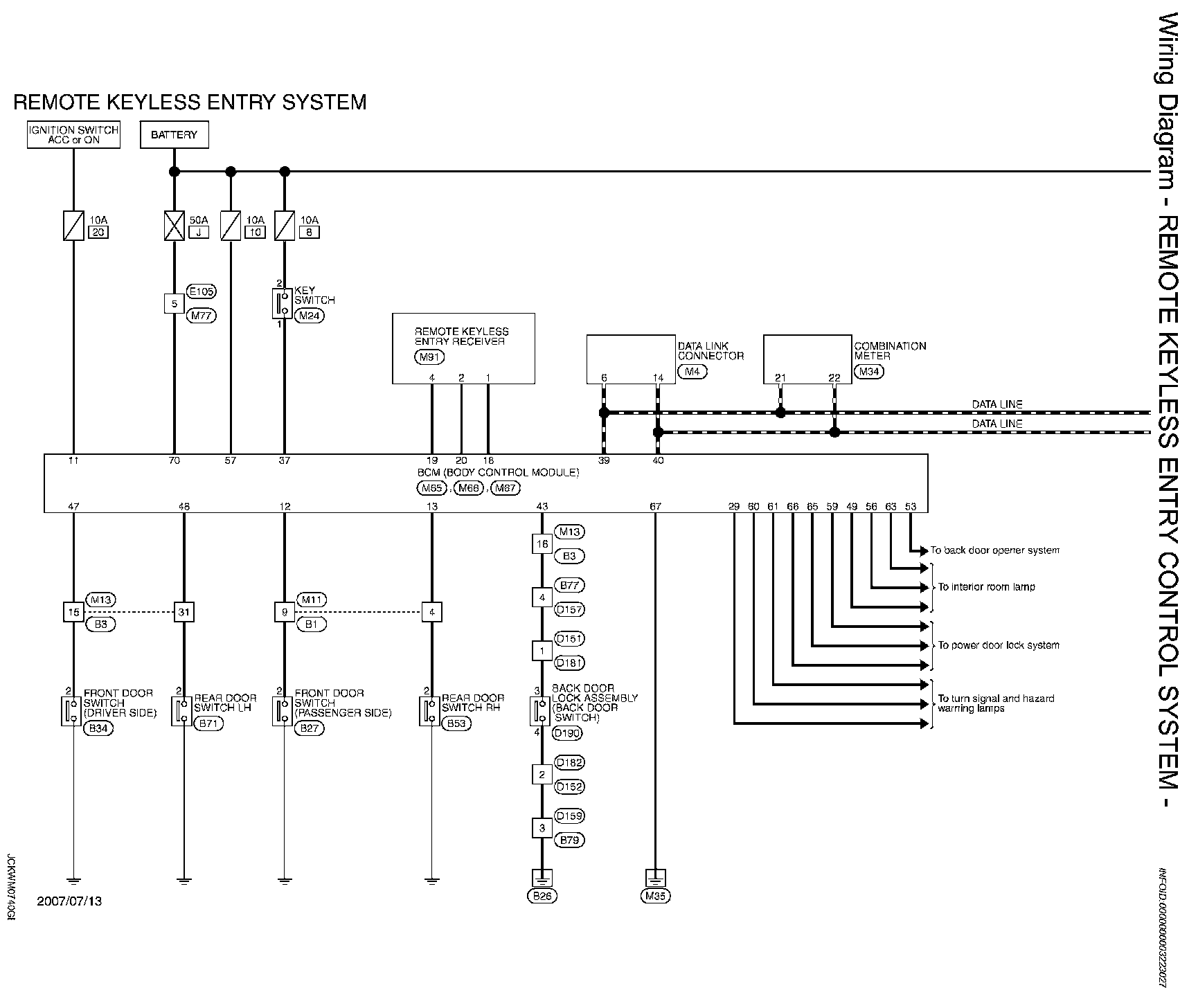

Wiring Diagram - Remote Keyless Entry System - Part 2:

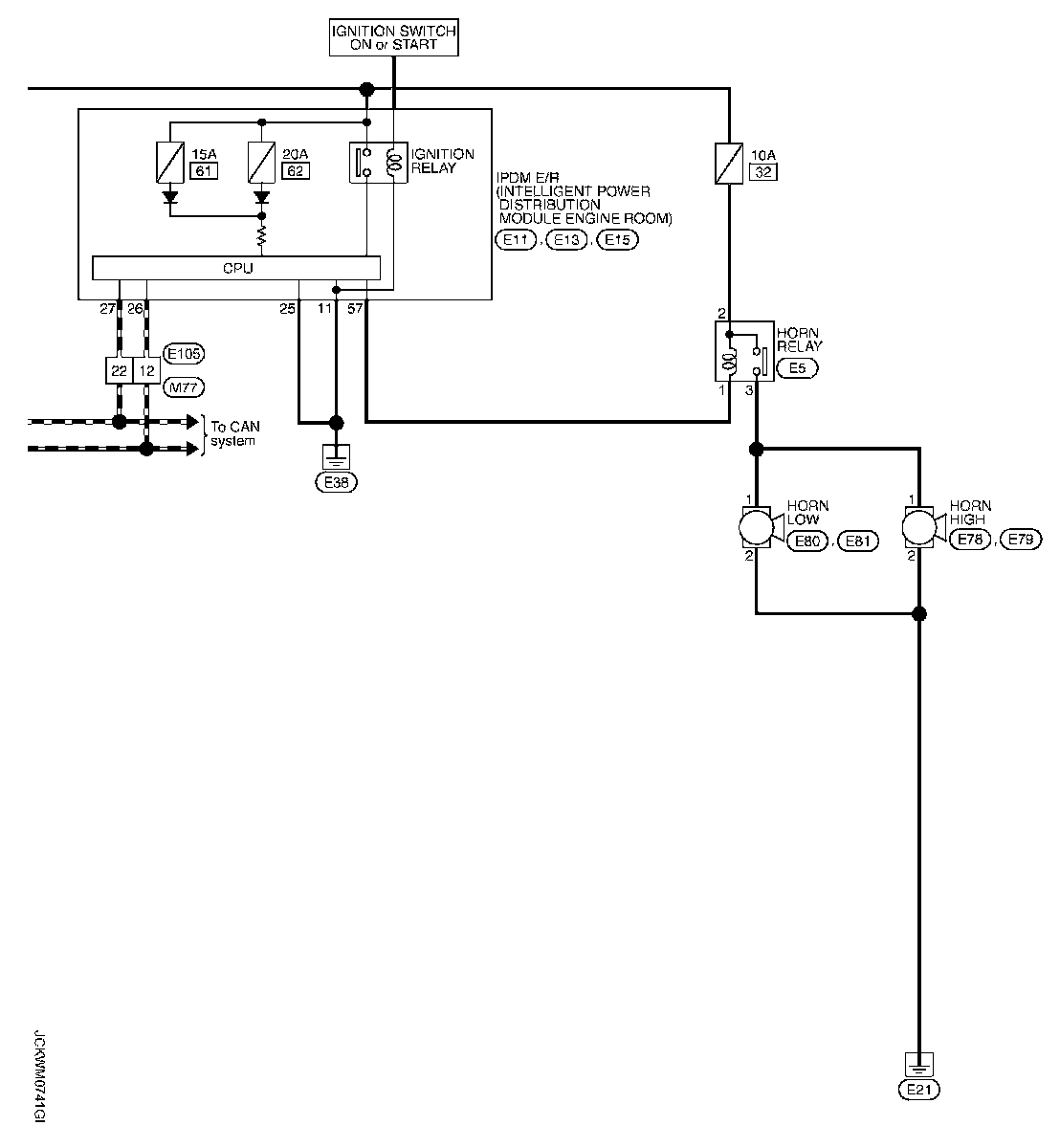

Wiring Diagram - Remote Keyless Entry System - Part 3:

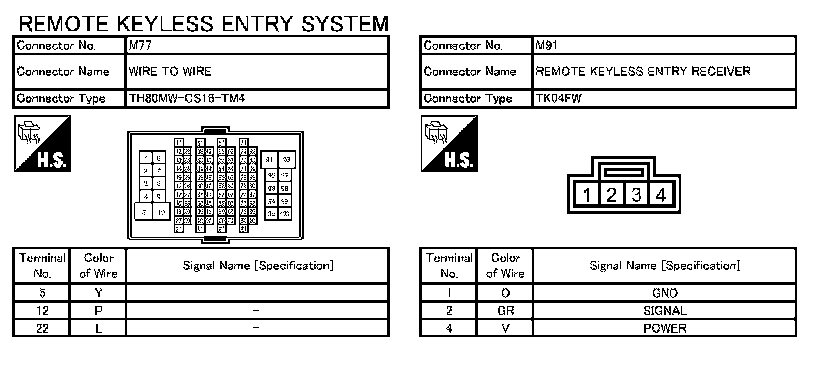

Wiring Diagram - Remote Keyless Entry System - Part 4:

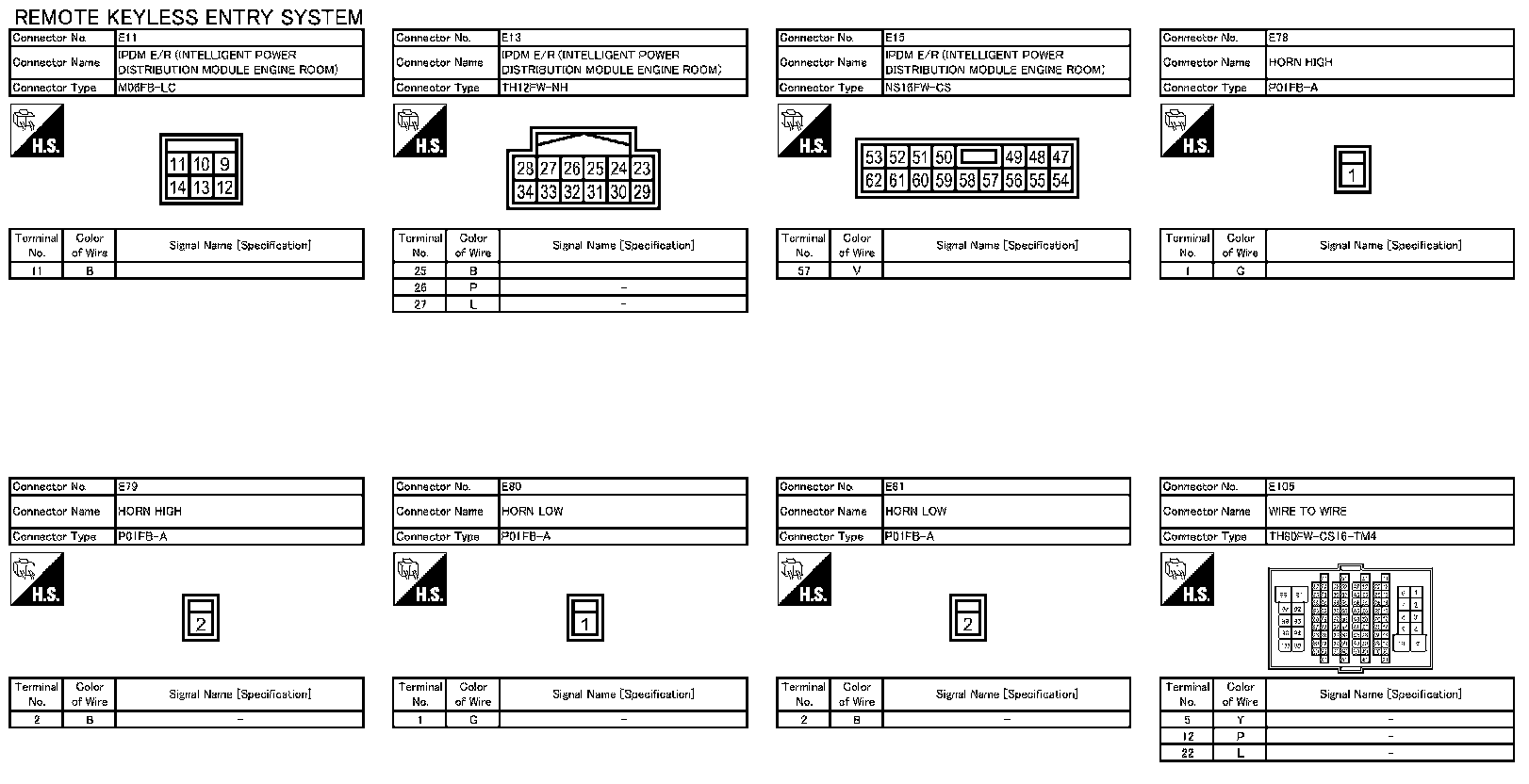

Wiring Diagram - Remote Keyless Entry System - Part 5:

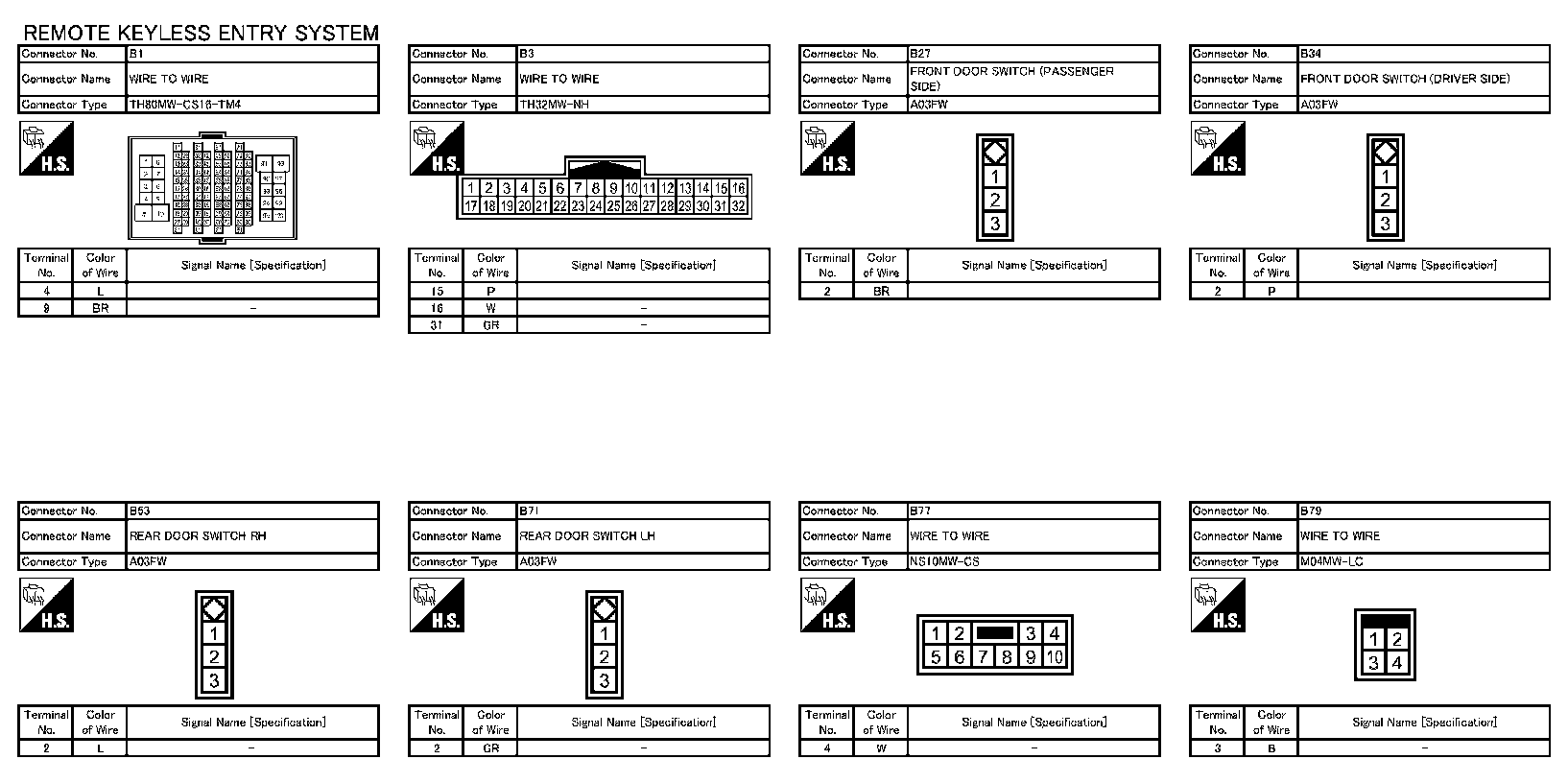

Wiring Diagram - Remote Keyless Entry System - Part 6:

Wiring Diagram - Remote Keyless Entry System - Part 7:
