Power Door Lock Control System

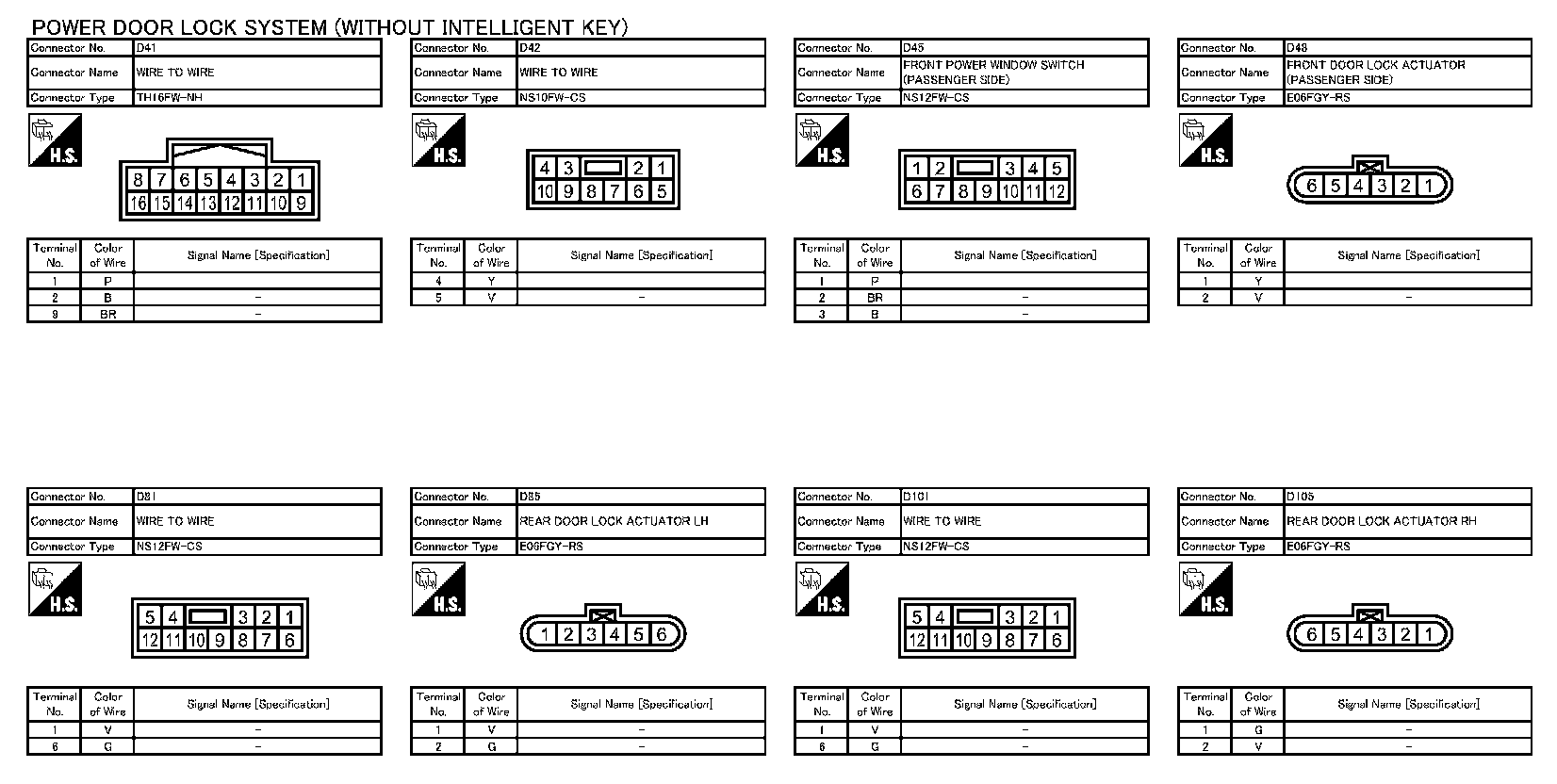

Wiring Diagram - Power Door Lock System (Without Intelligent Key) - Part 1:

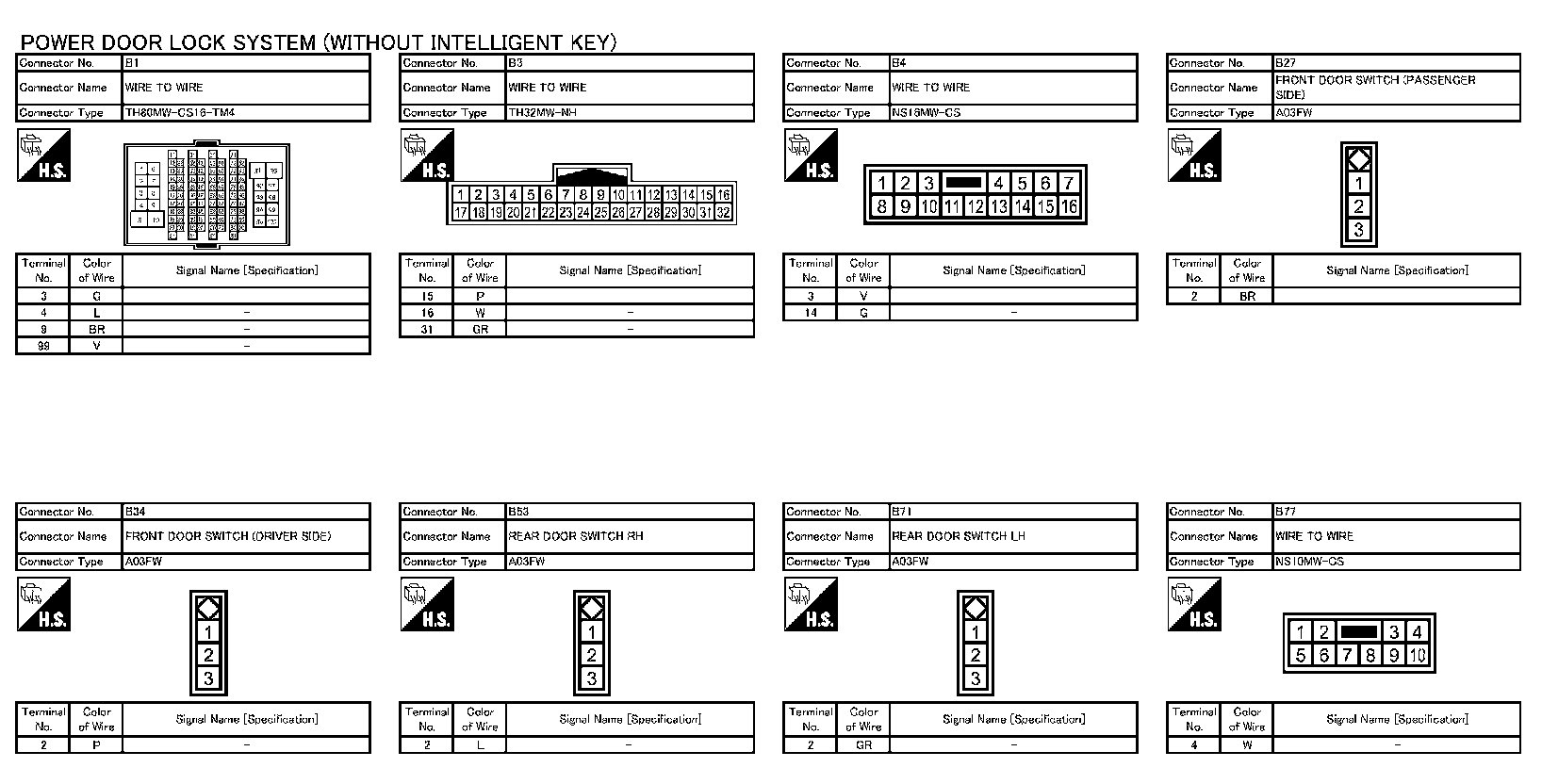

Wiring Diagram - Power Door Lock System (Without Intelligent Key) - Part 2:

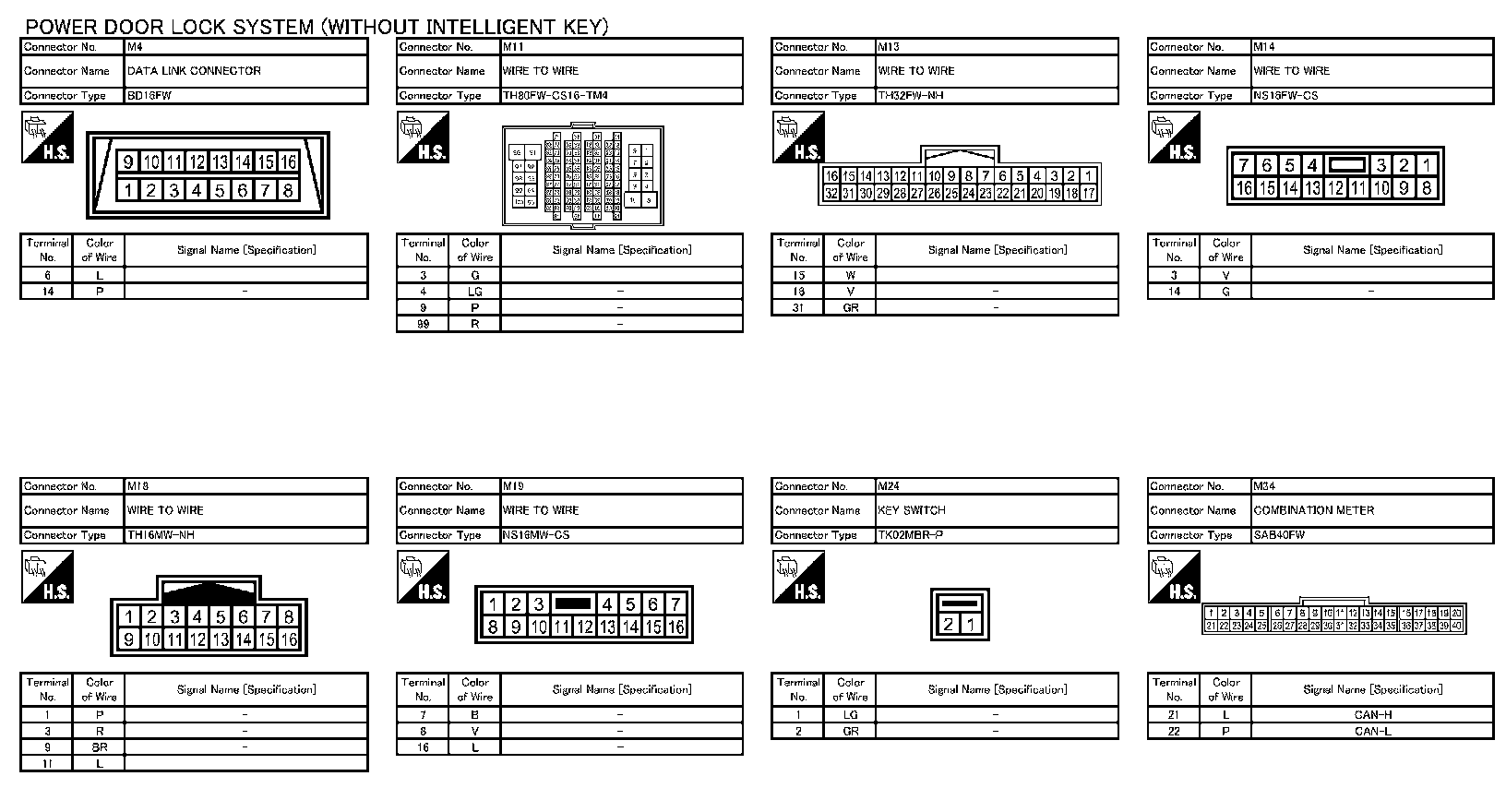

Wiring Diagram - Power Door Lock System (Without Intelligent Key) - Part 3:

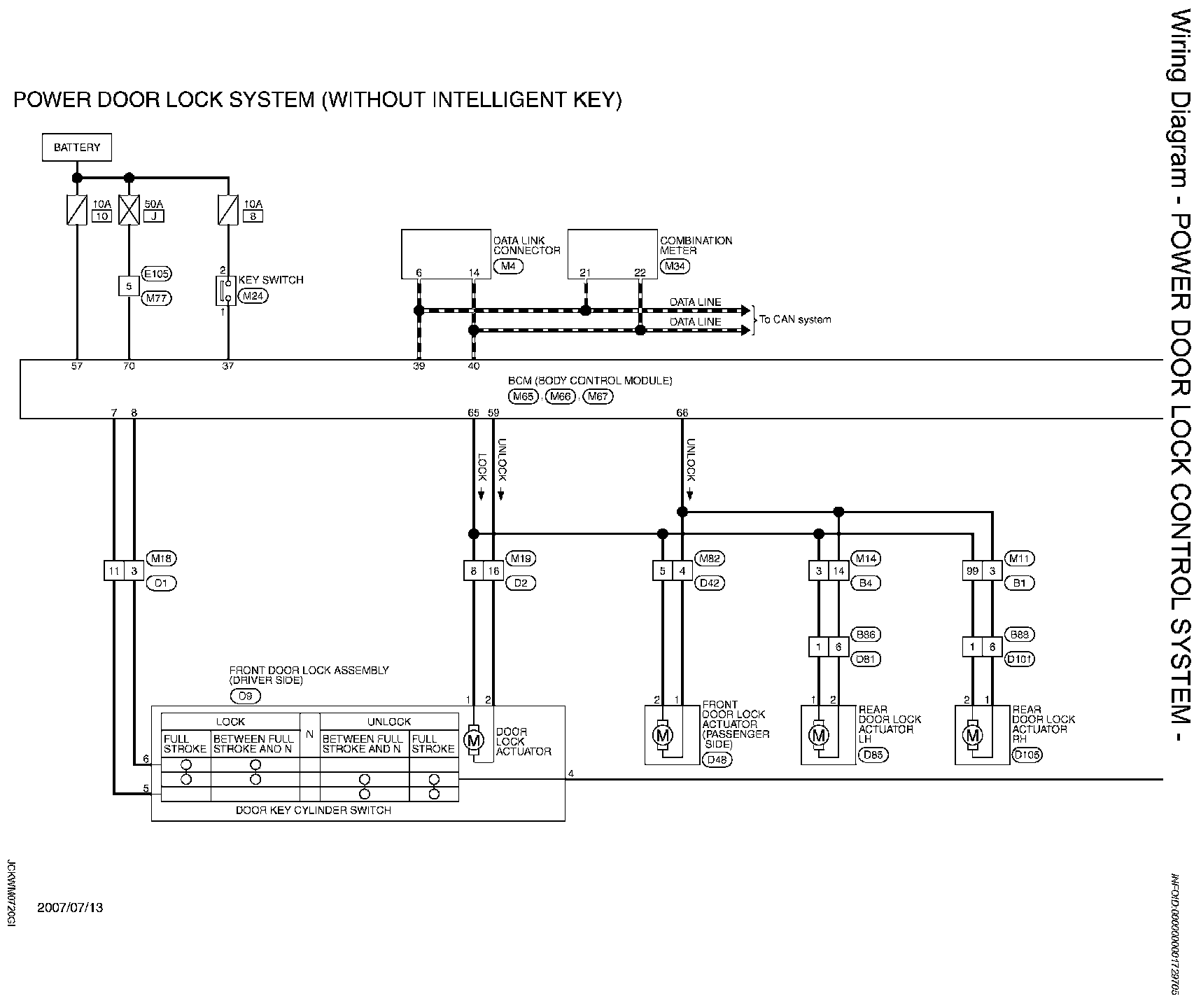

Wiring Diagram - Power Door Lock System (Without Intelligent Key) - Part 4:

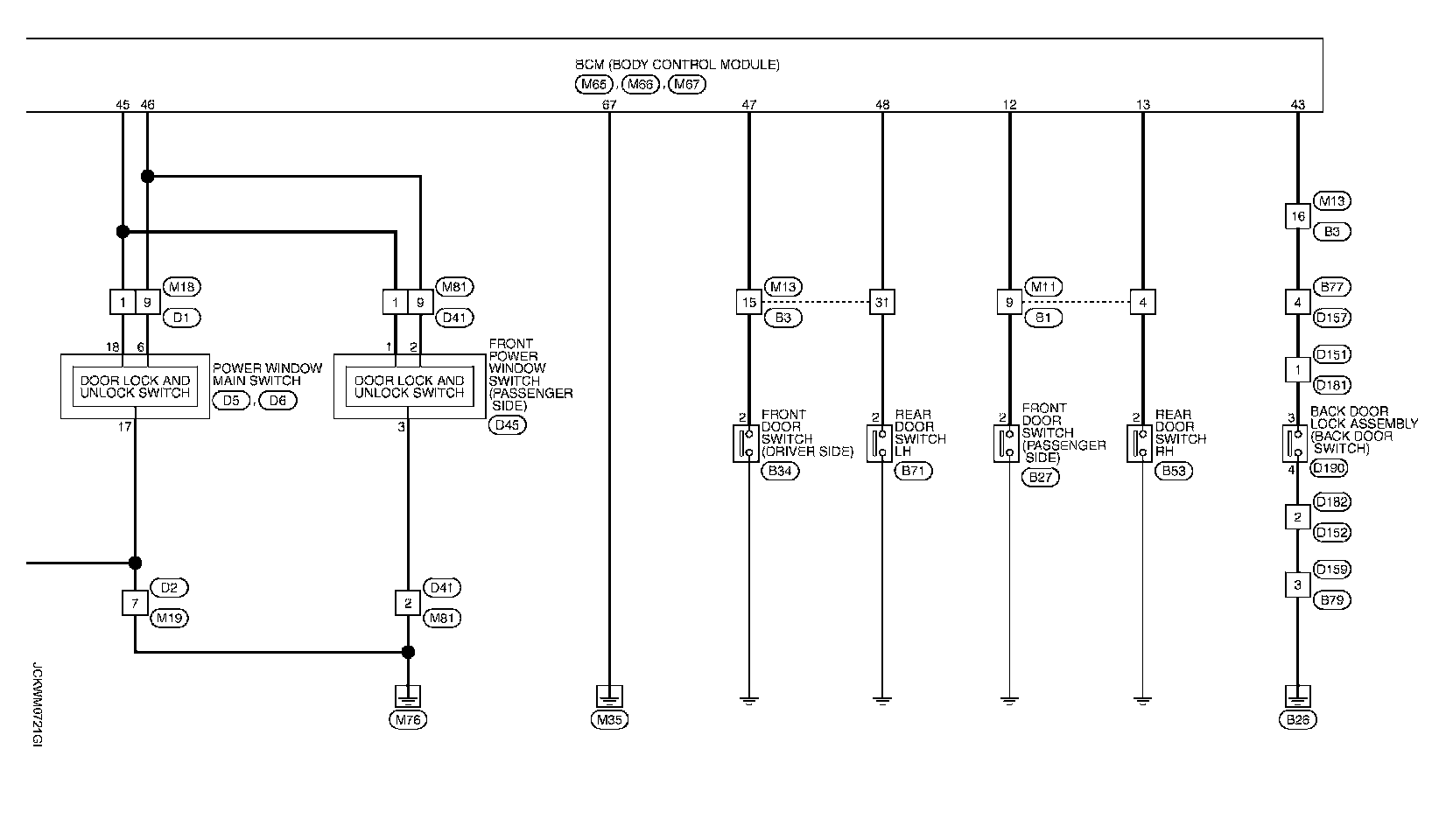

Wiring Diagram - Power Door Lock System (Without Intelligent Key) - Part 5:

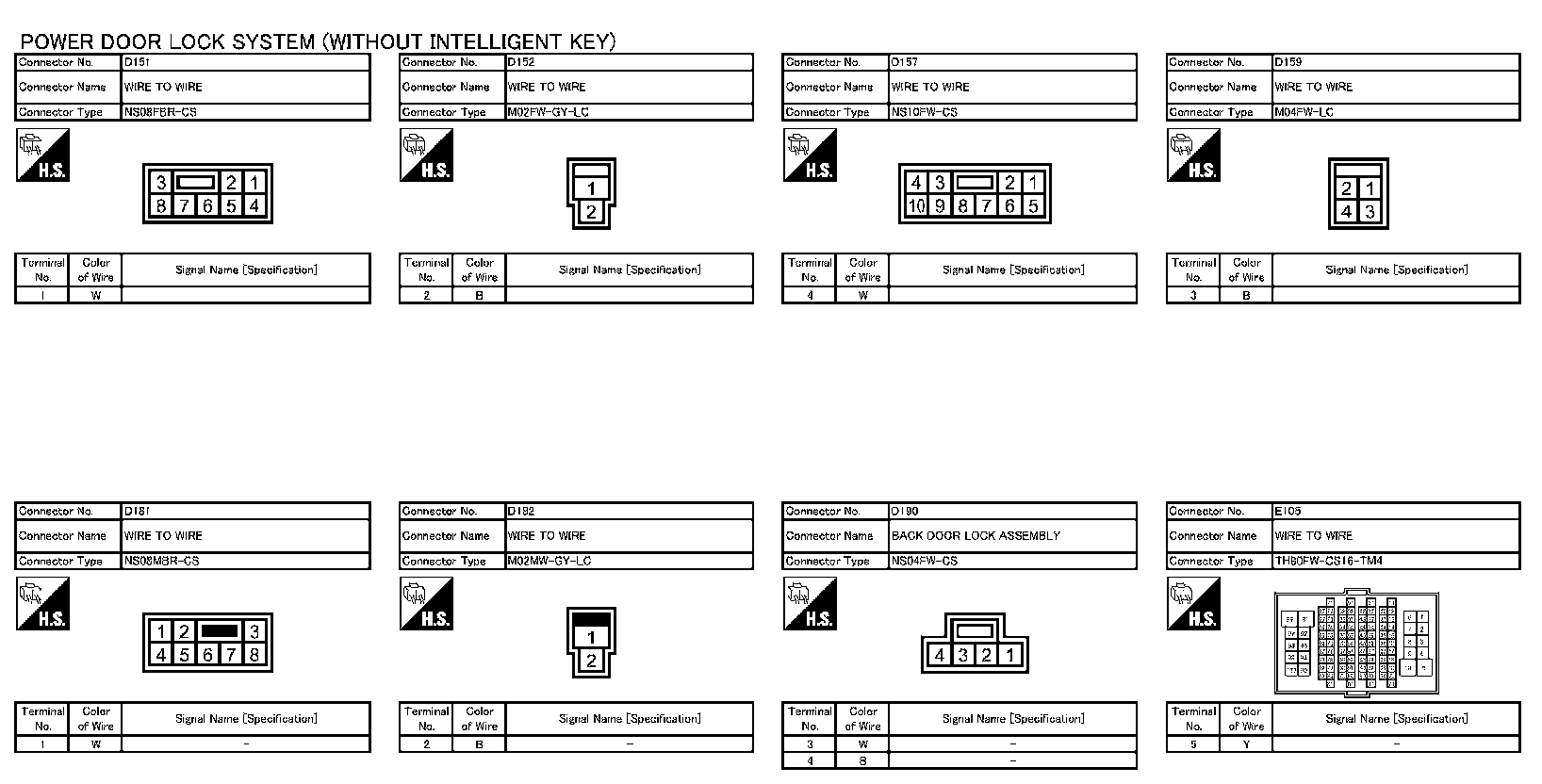

Wiring Diagram - Power Door Lock System (Without Intelligent Key) - Part 6:

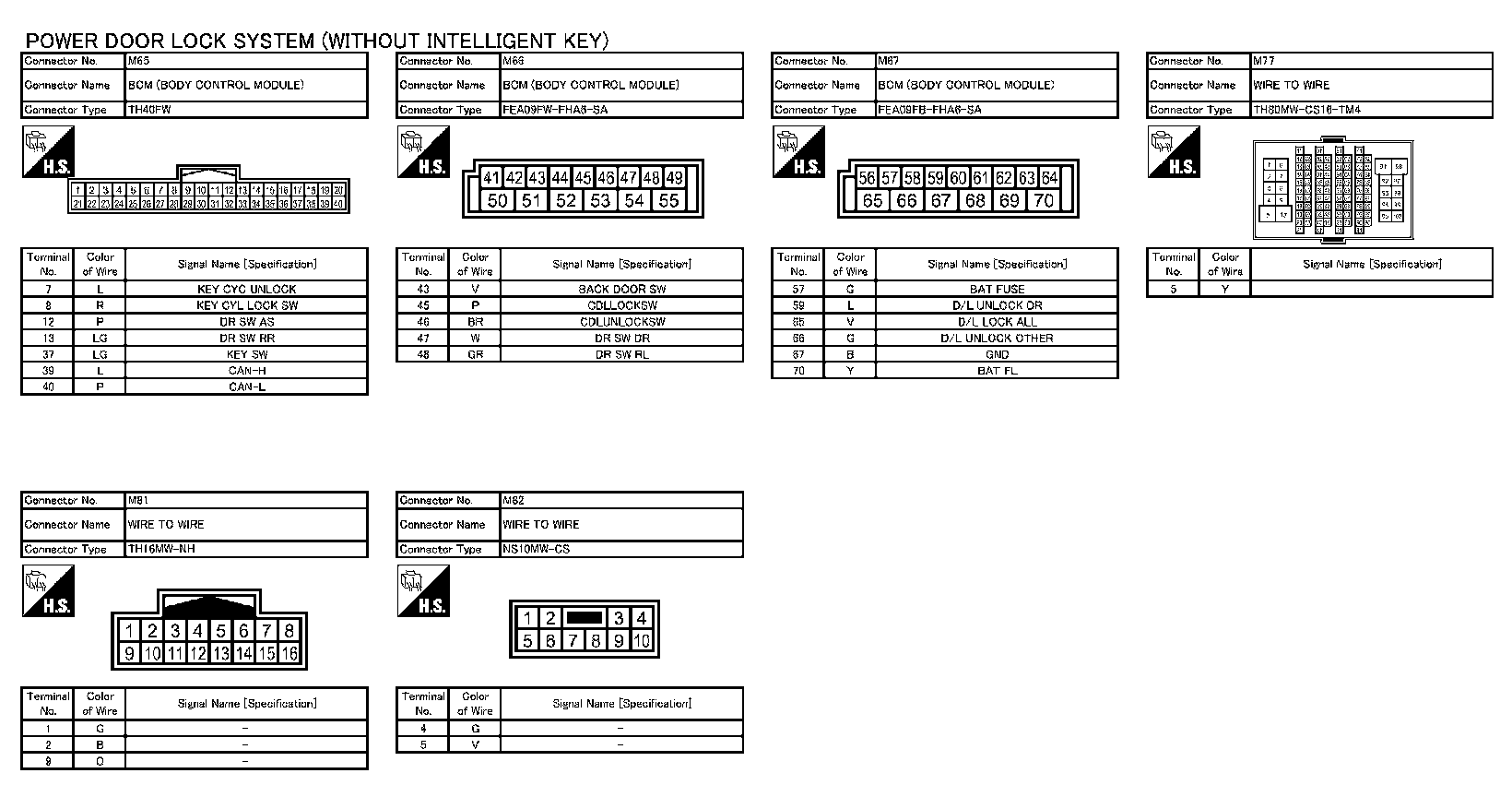

Wiring Diagram - Power Door Lock System (Without Intelligent Key) - Part 7:

Wiring Diagram - Power Door Lock System (Without Intelligent Key) - Part 8:
