Accelerator Pedal Position Sensor: Service and Repair

ON-VEHICLE REPAIR

ACCELERATOR CONTROL SYSTEM

Exploded View

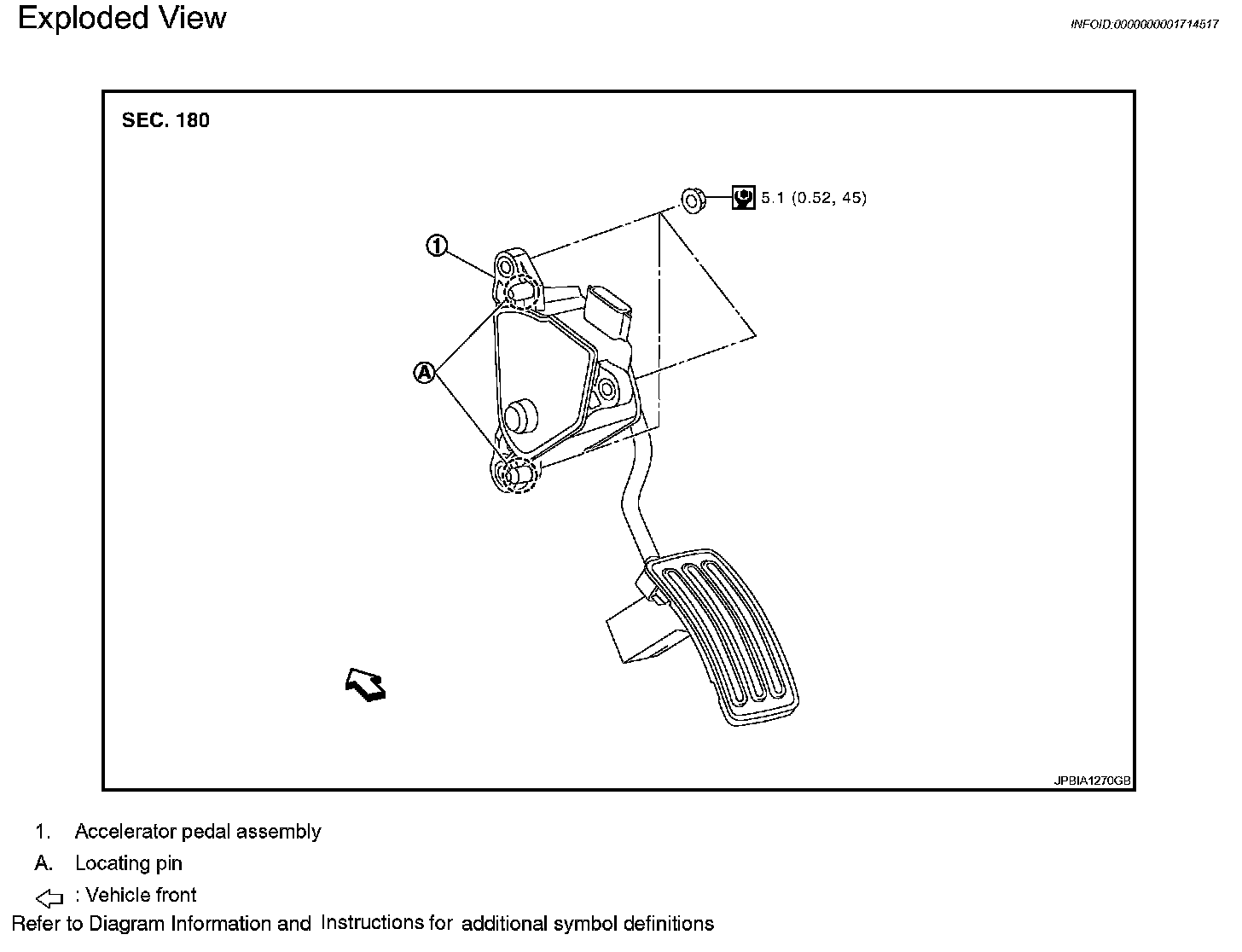

Exploded View ACC-3:

Removal and Installation

REMOVAL
1. Disconnect accelerator pedal position sensor harness connector.
2. Remove accelerator pedal assembly mounting nuts.
3. Loosen brake pedal assembly mounting nuts.

NOTE: Brake pedal assembly does not have to be removed from the vehicle.

4. Remove accelerator pedal assembly.

CAUTION:
- Never disassemble accelerator lever. Never remove accelerator pedal position sensor from accelerator lever.
- Avoid impact from dropping etc. during handling.
- Be careful to keep accelerator lever away from water.

INSTALLATION
Note the following, and install in the reverse order of removal.
- Insert locating pin into vehicle side to position accelerator pedal assembly. Tighten mounting nuts to accelerator pedal assembly.

Inspection

INSPECTION AFTER INSTALLATION
- Check that accelerator pedal moves smoothly within the whole operation range when it is depressed fully and released.
- Check that accelerator pedal returns securely to the fully released position.
- For the electrical inspection of accelerator pedal position sensor. Refer to EC-392, "Description". P2138

CAUTION: When harness connector of accelerator pedal position sensor is disconnected, perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING". Refer to EC-27, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Description" (for California), EC-929, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Description" (for Mexico) or EC-501, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Description" (Except for California and Mexico). Testing and Inspection
