Power Distribution Module: Service and Repair

ON-VEHICLE REPAIR

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

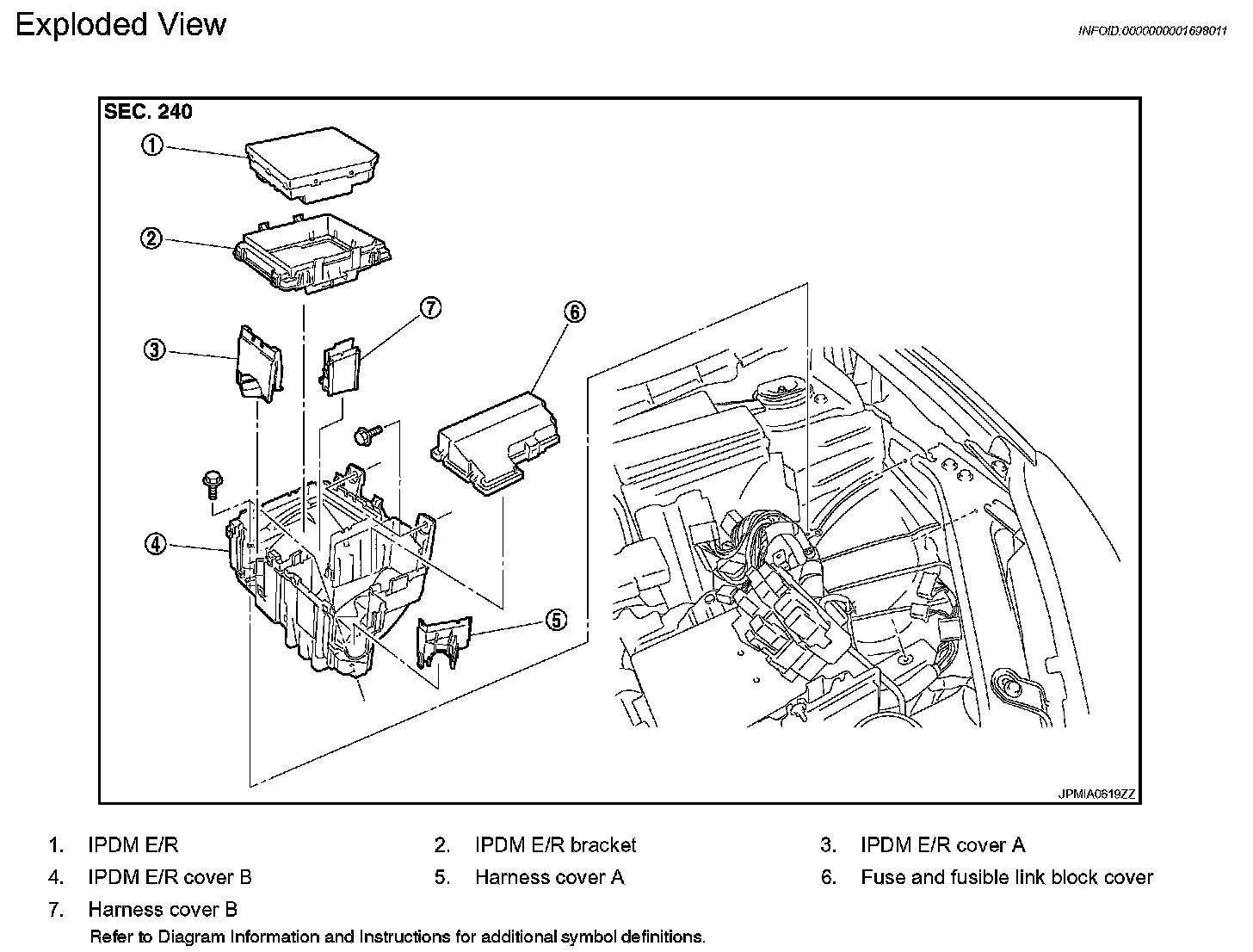

Exploded View

Exploded View PCS-28:

Removal and Installation

CAUTION: IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL
1. Remove air duct (inlet).
2. Remove battery.

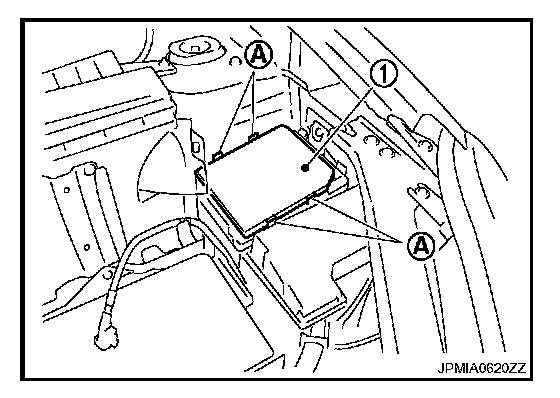

3. Remove IPDM E/R (1) while pushing and opening pawls (A).
4. Disconnect connectors from IPDM E/R.
5. Remove fuse and fusible link block cover.

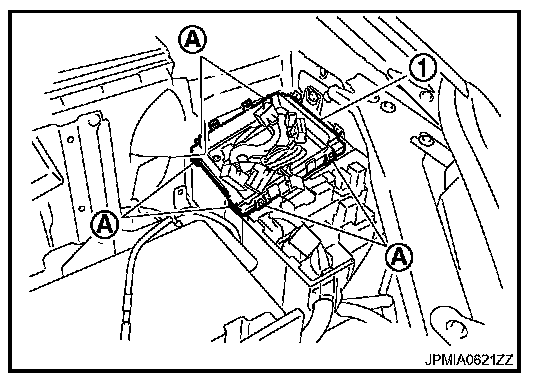

6. Unlock all pawls (A) of IPDM E/R bracket, and remove IPDM E/ R bracket (1).
7. Unlock pawls of IPDM E/R cover A, harness cover A and harness cover B, remove them.
8. Disconnect connectors connected to fuse and fusible link block upper side, and remove fuse and fusible link block.

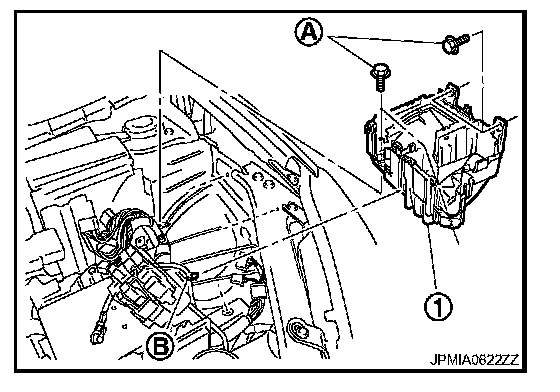

9. Remove IPDM E/R cover B mounting bolts (A) and battery cable fixed clip (B), and remove IPDM E/R cover B (1).

INSTALLATION
Install in the reverse order of removal.
