Without 7 Inch Display





COMPRESSOR CONTROL FUNCTION


Component Part Location

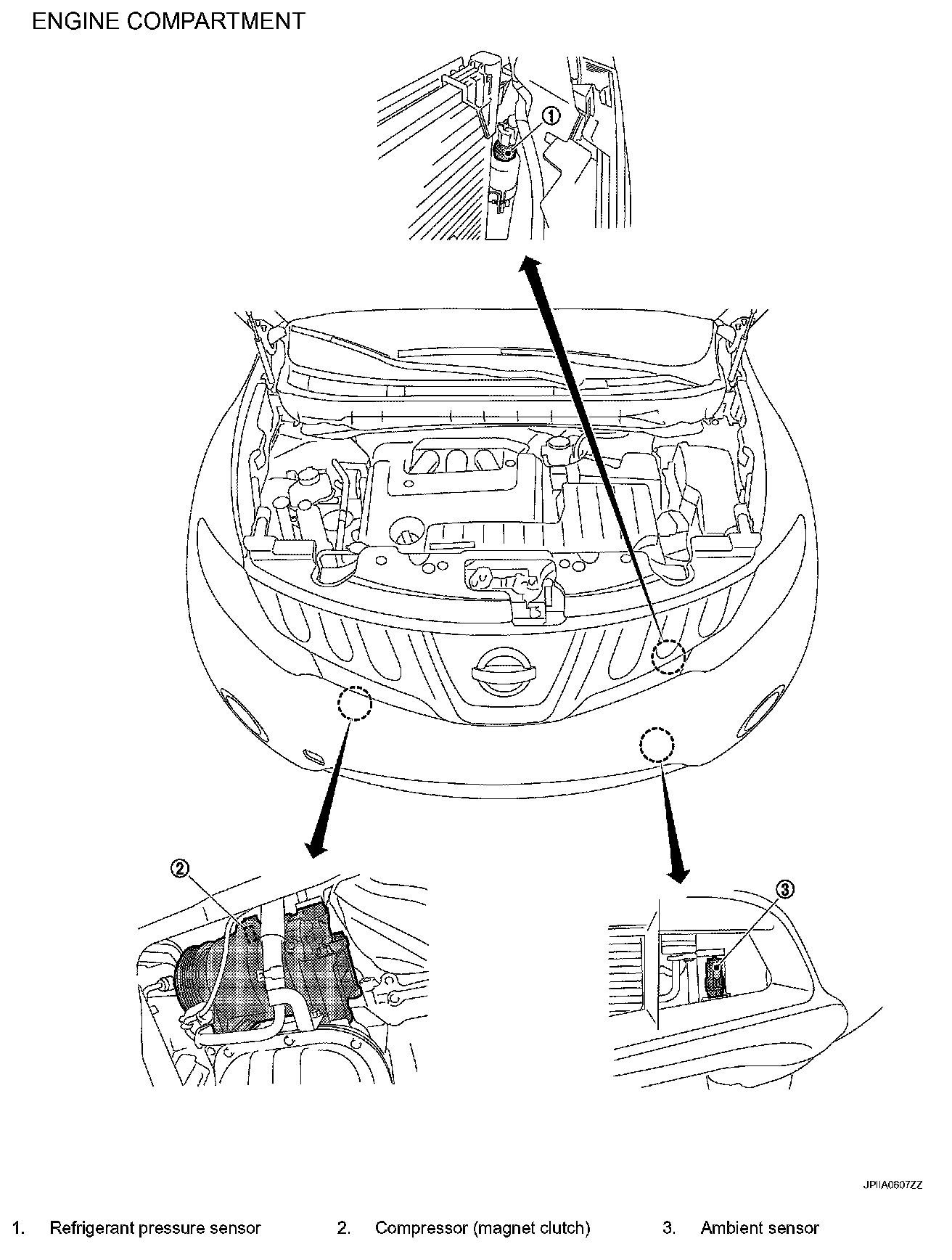

ENGINE COMPARTMENT

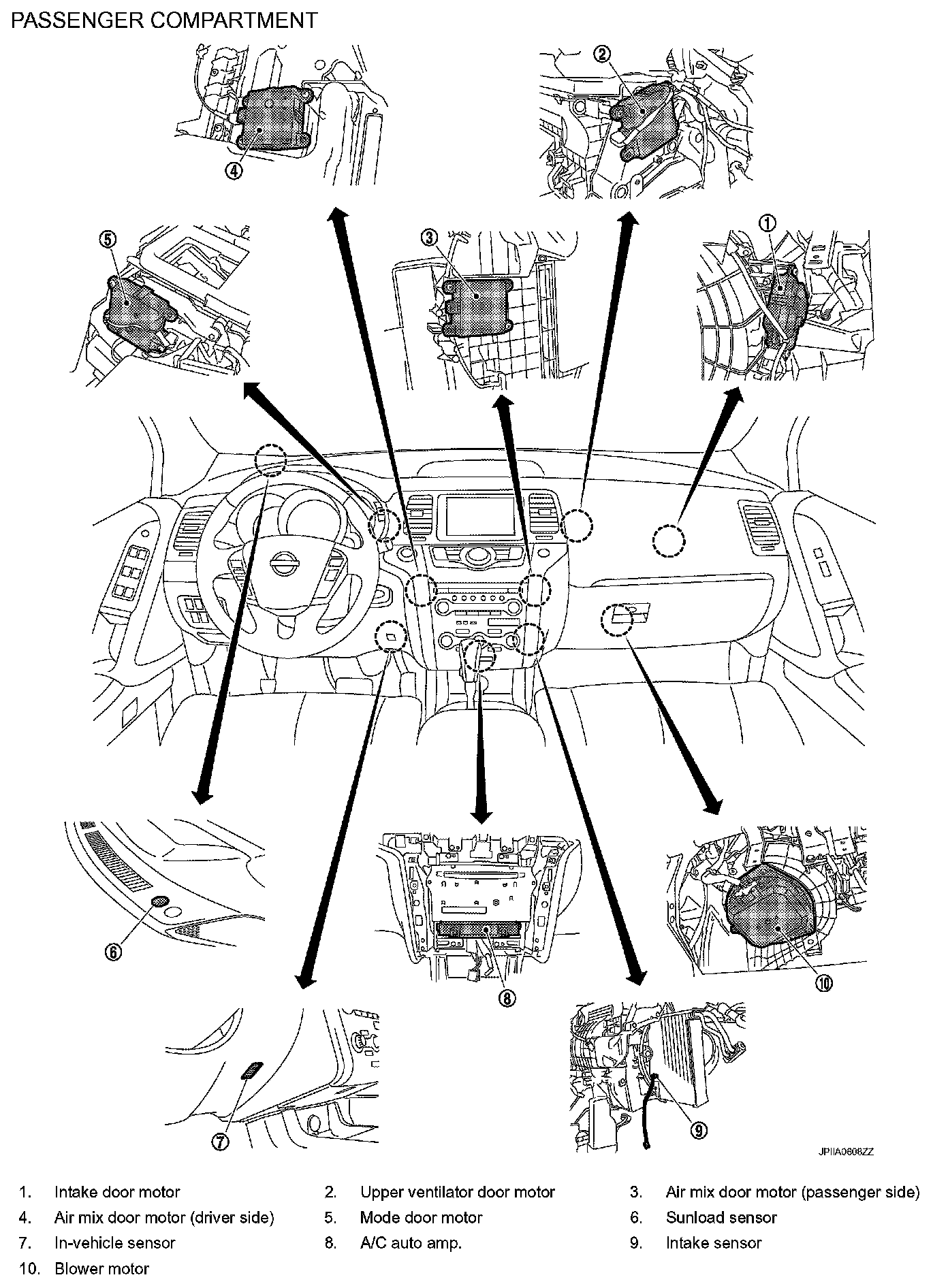

PASSENGER COMPARTMENT
