System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)


Cylinder Block

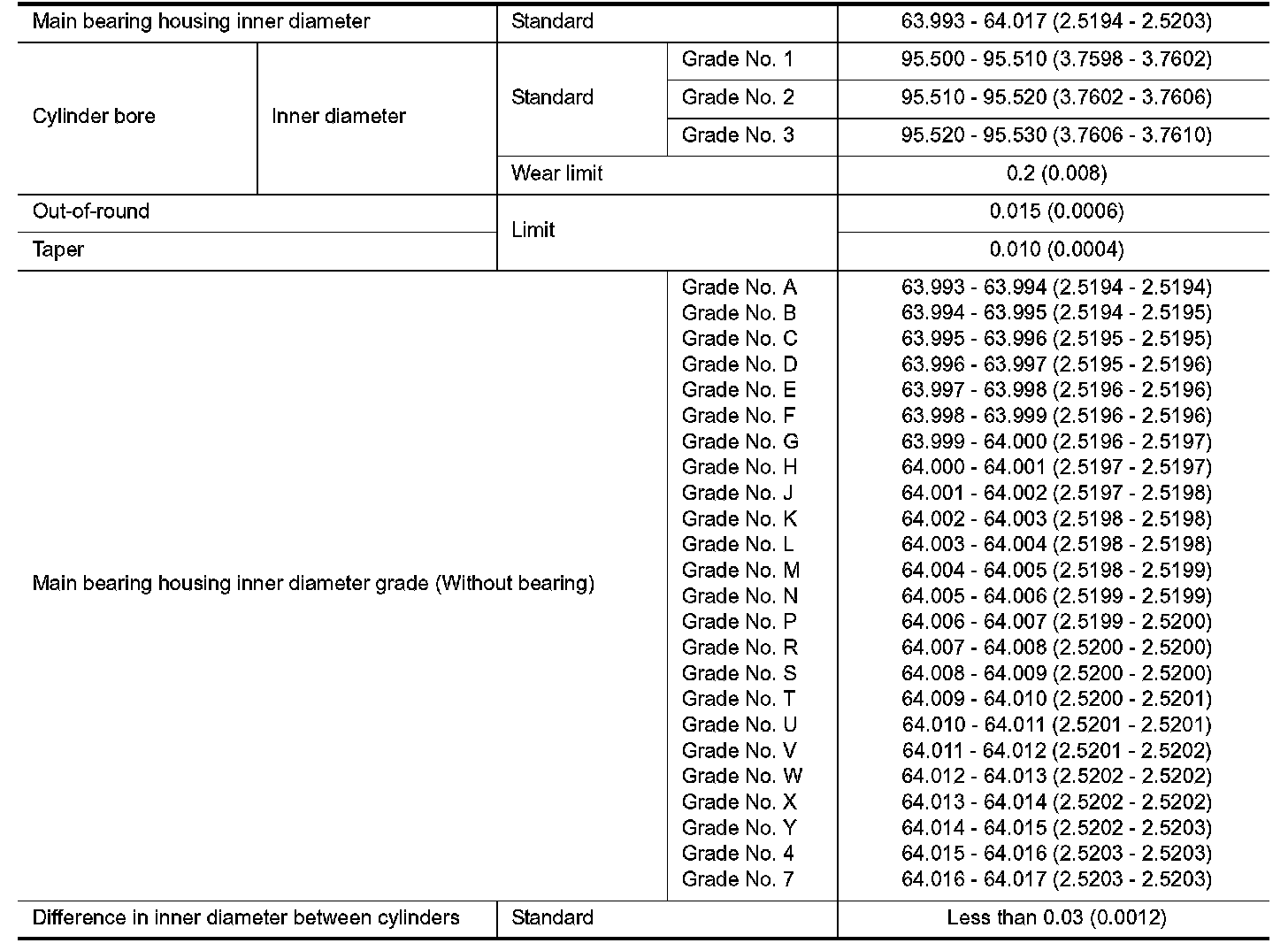

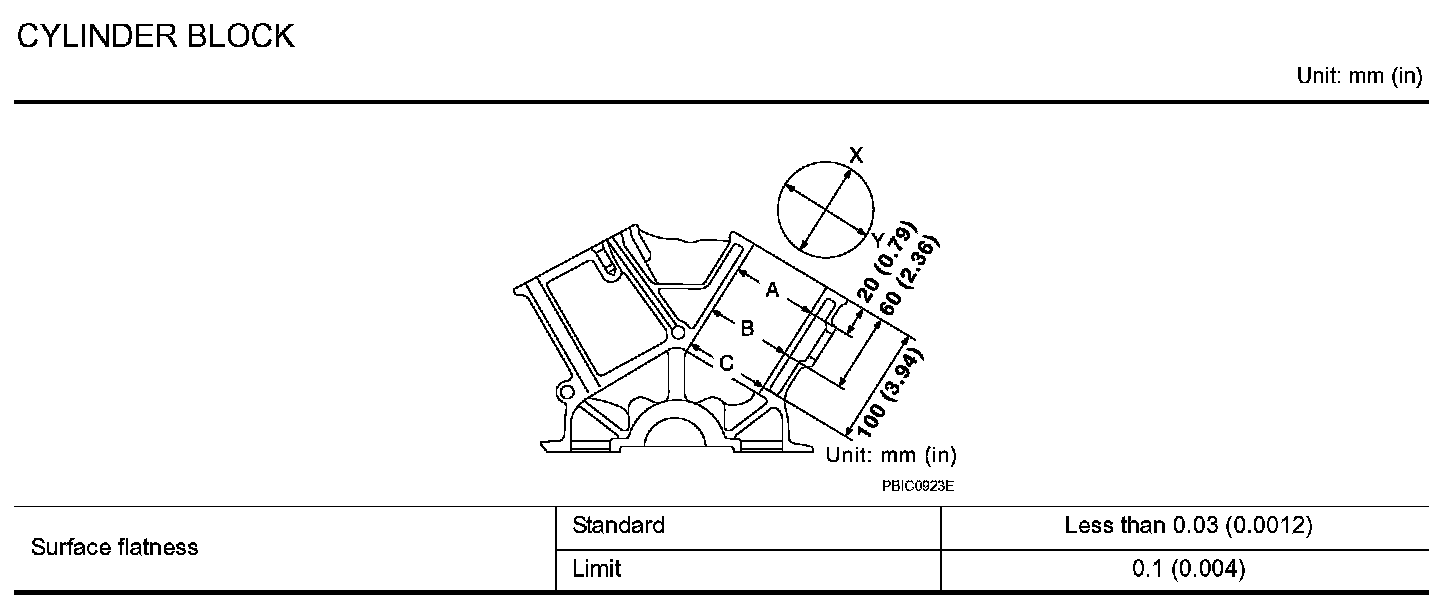

CYLINDER BLOCK

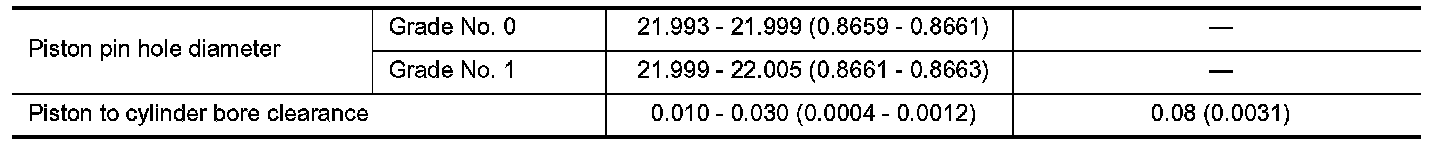

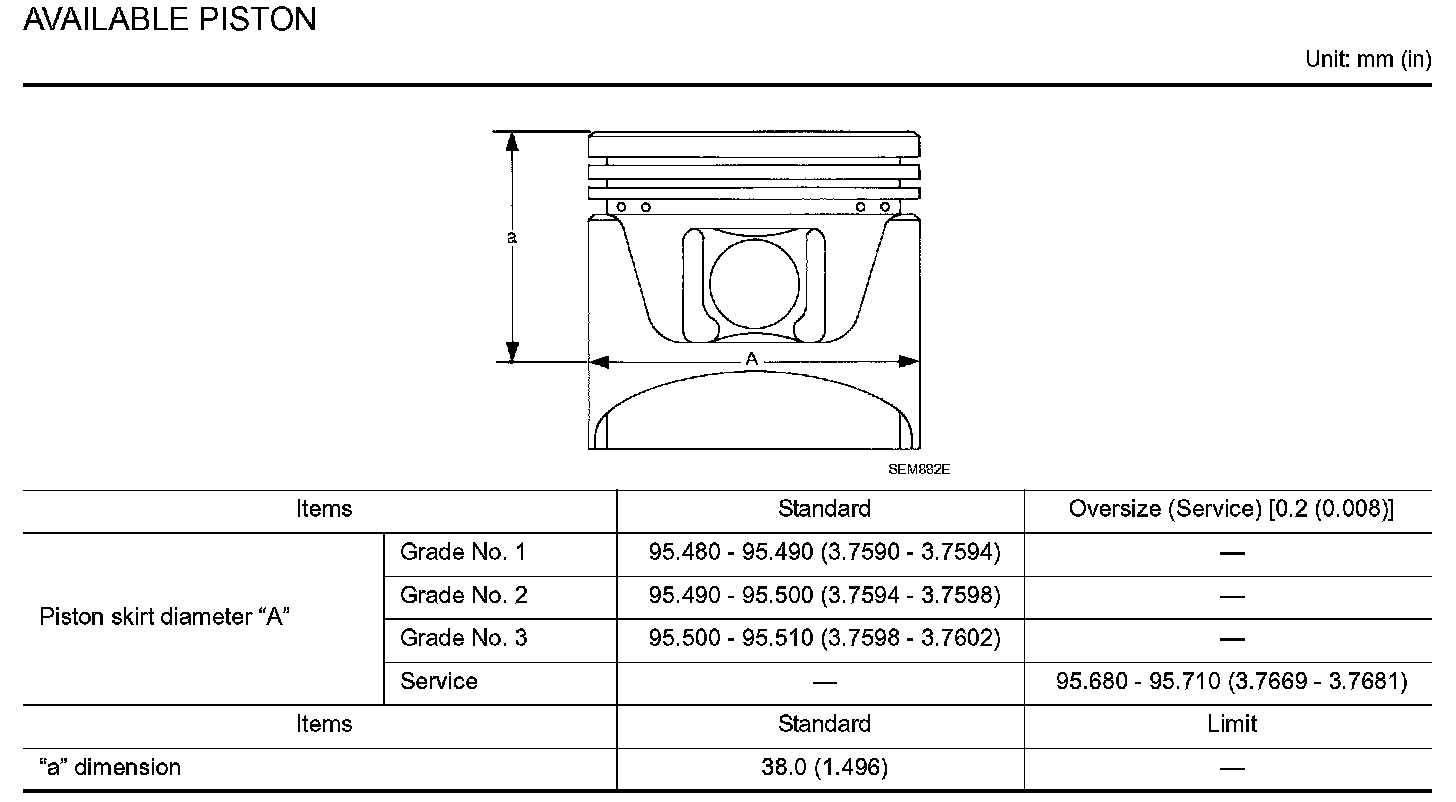

AVAILABLE PISTON

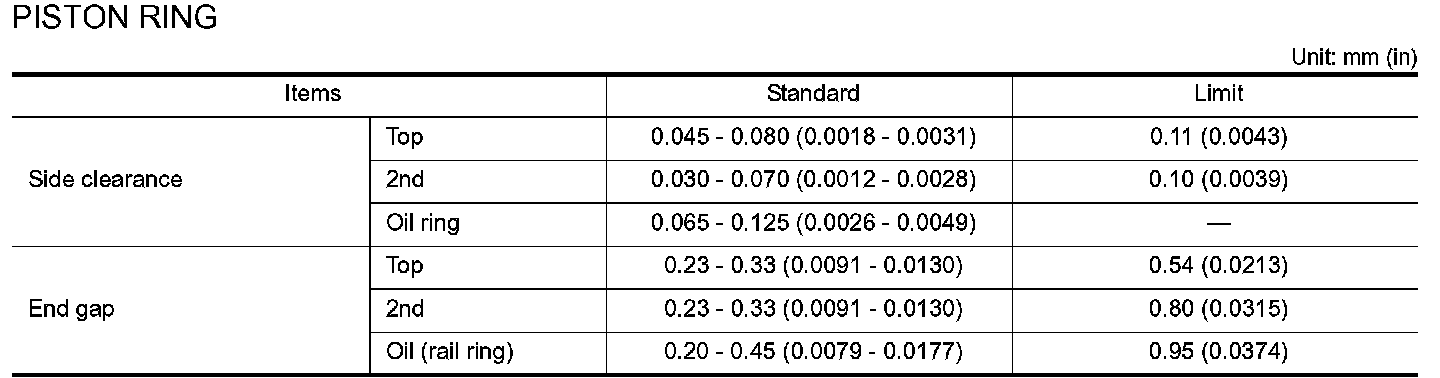

PISTON RING

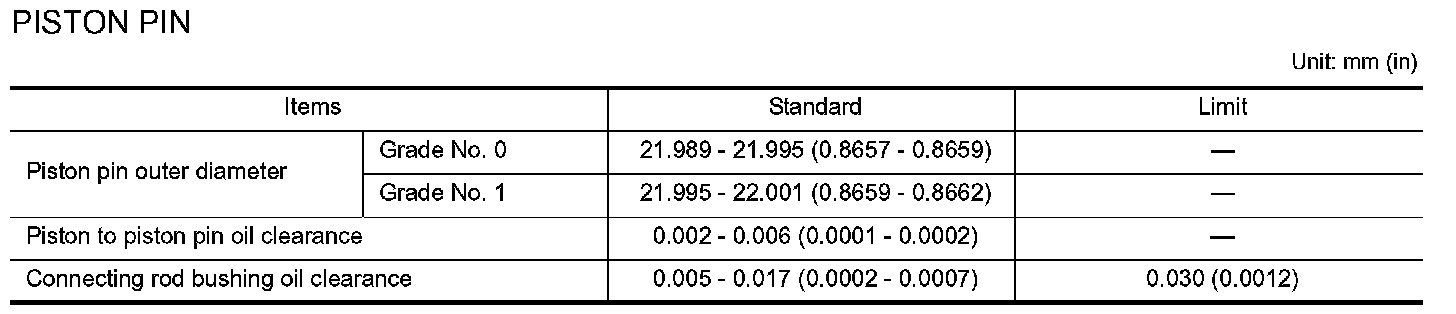

PISTON PIN

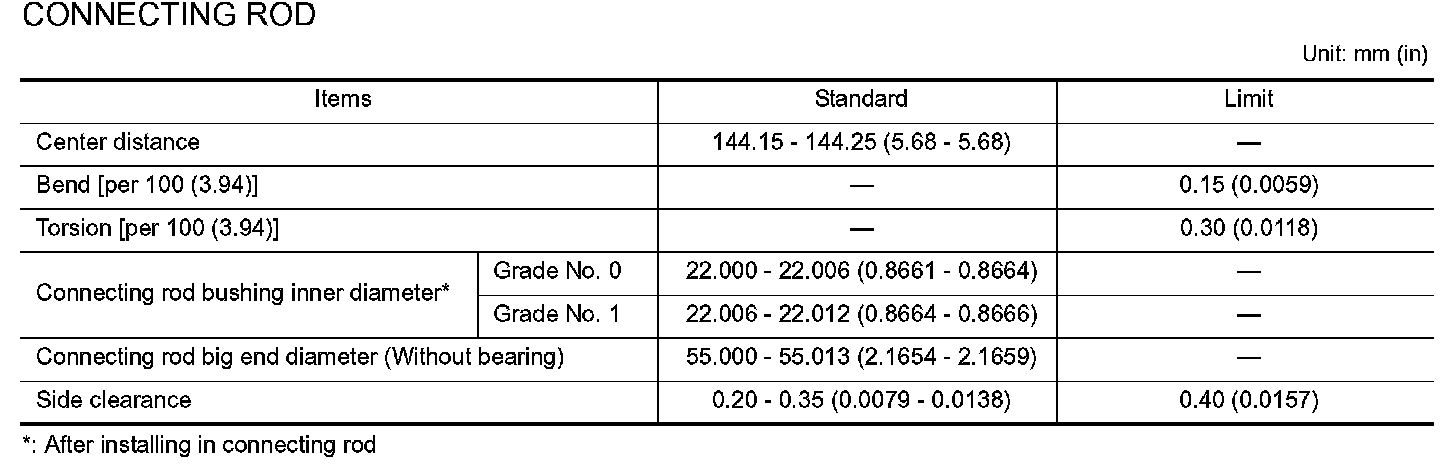

CONNECTING ROD

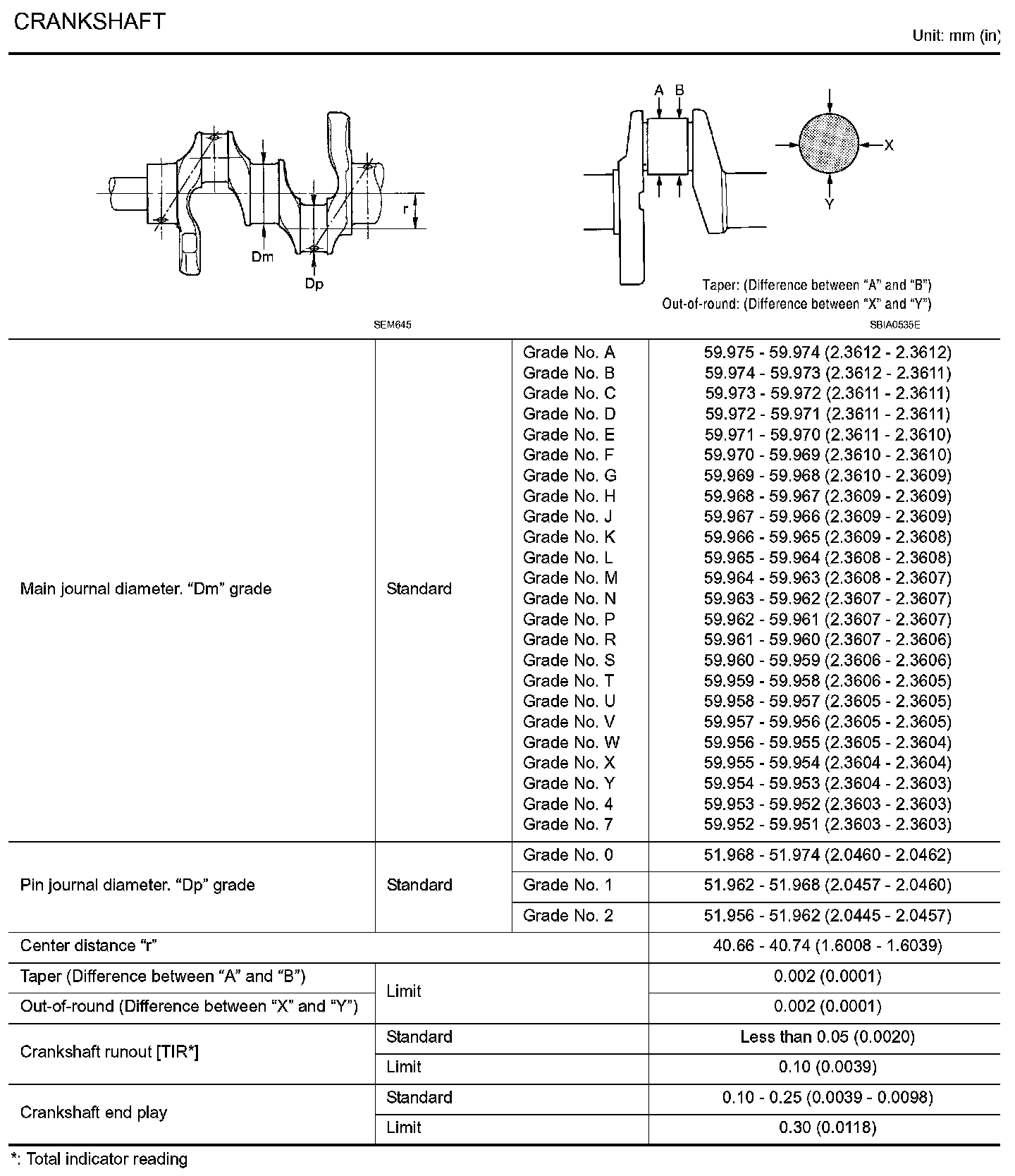

CRANKSHAFT






Cylinder Head

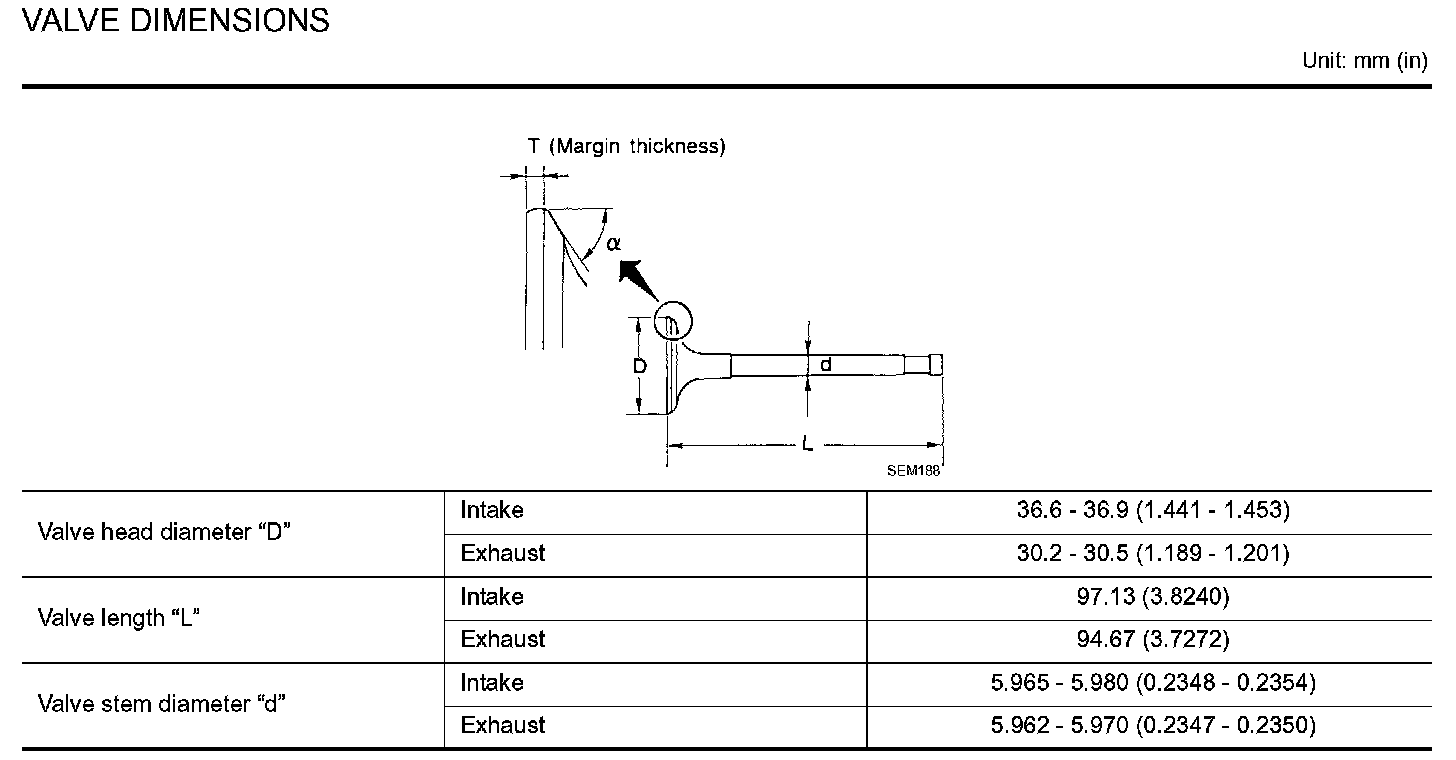

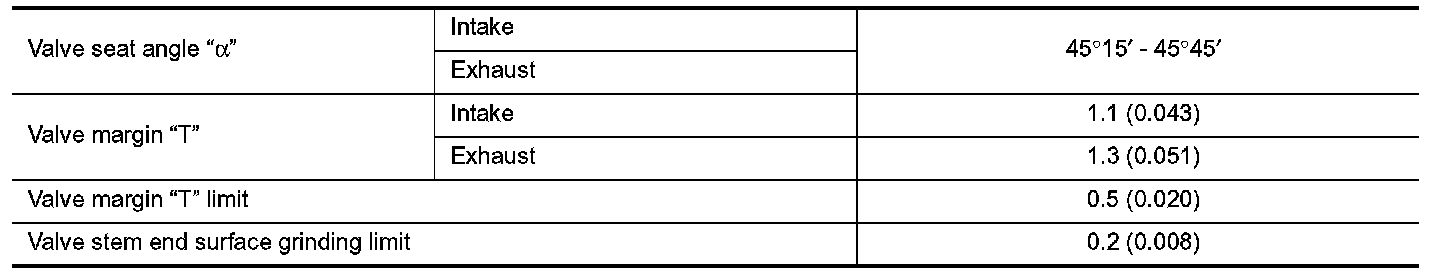

Valve Dimensions

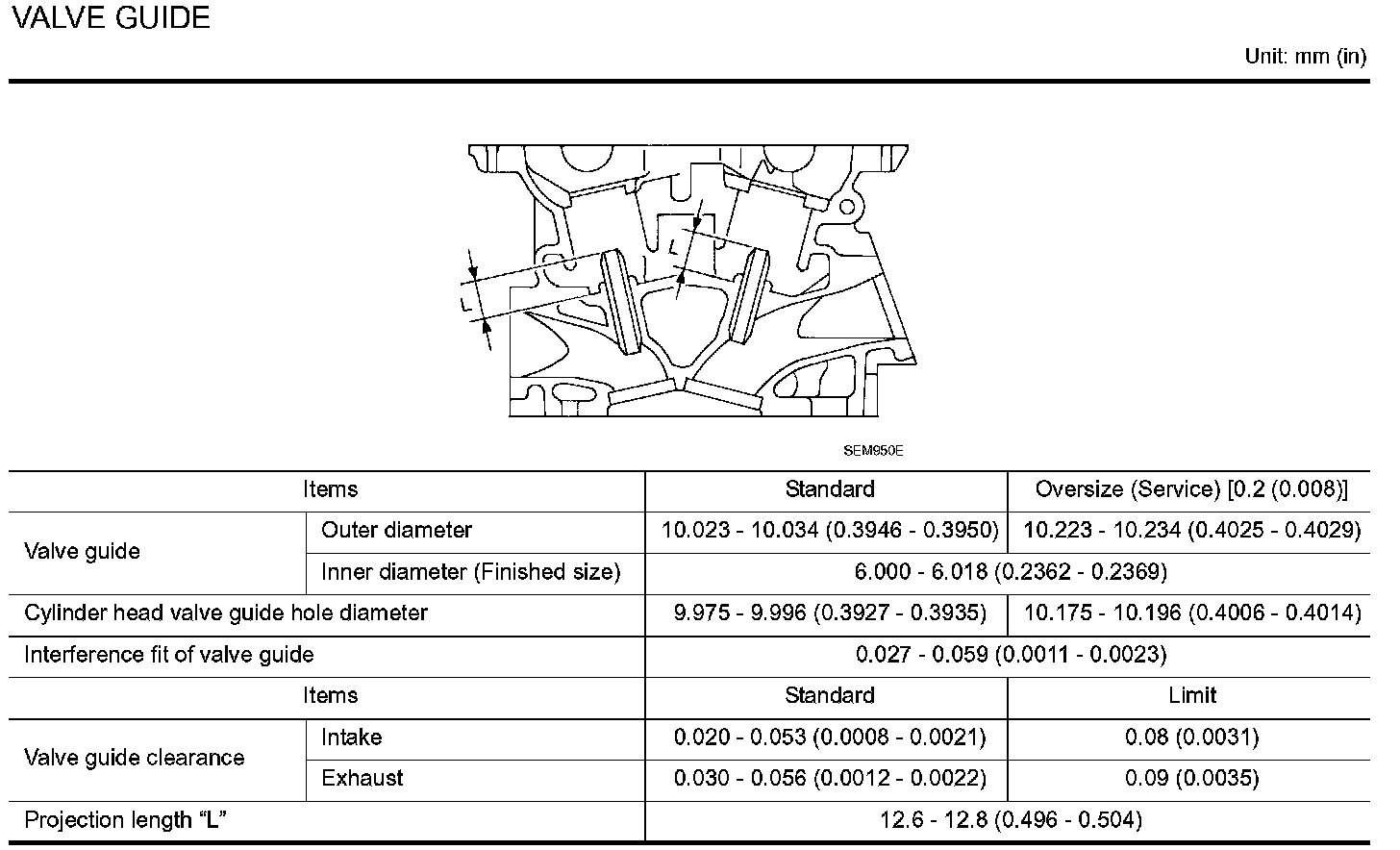

Valve Guide

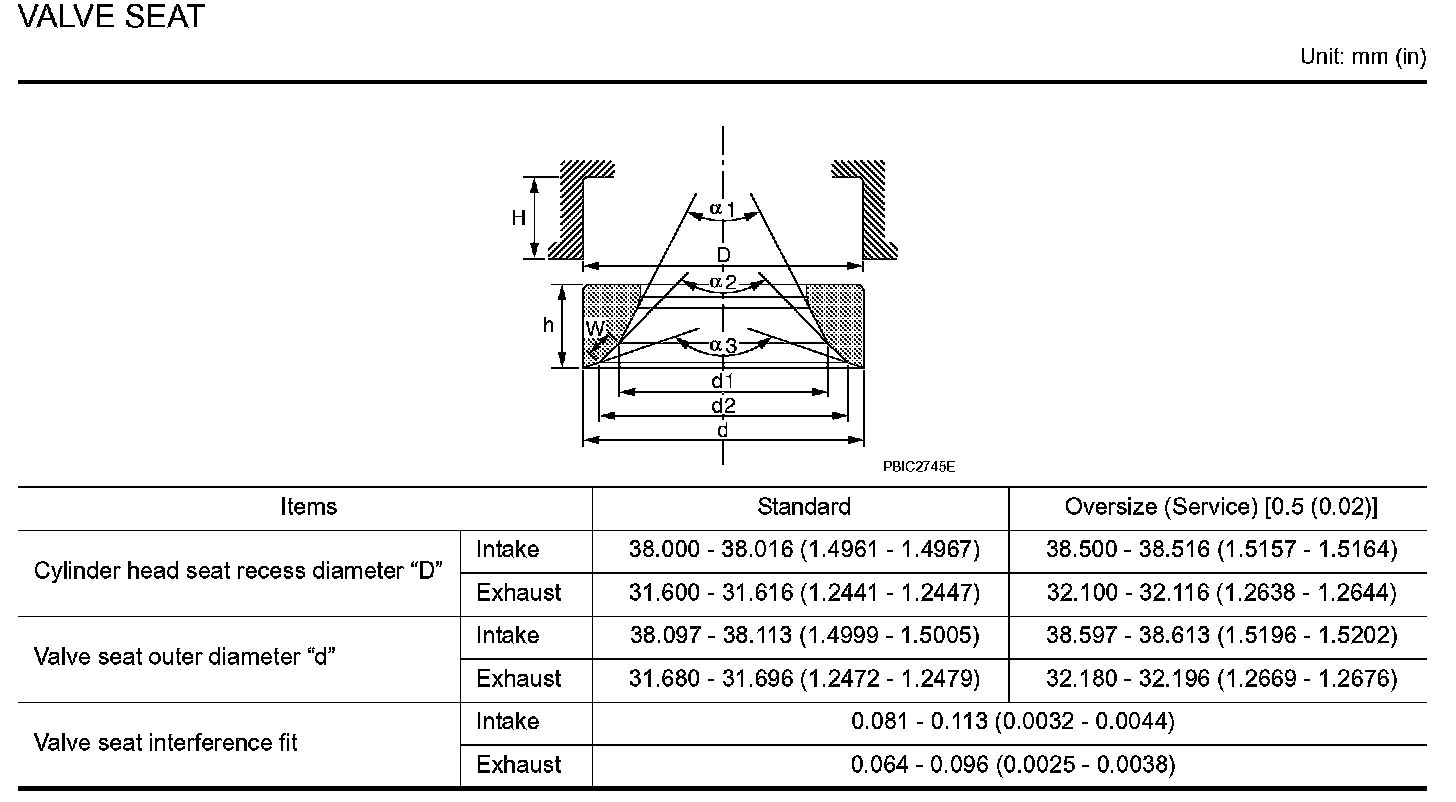

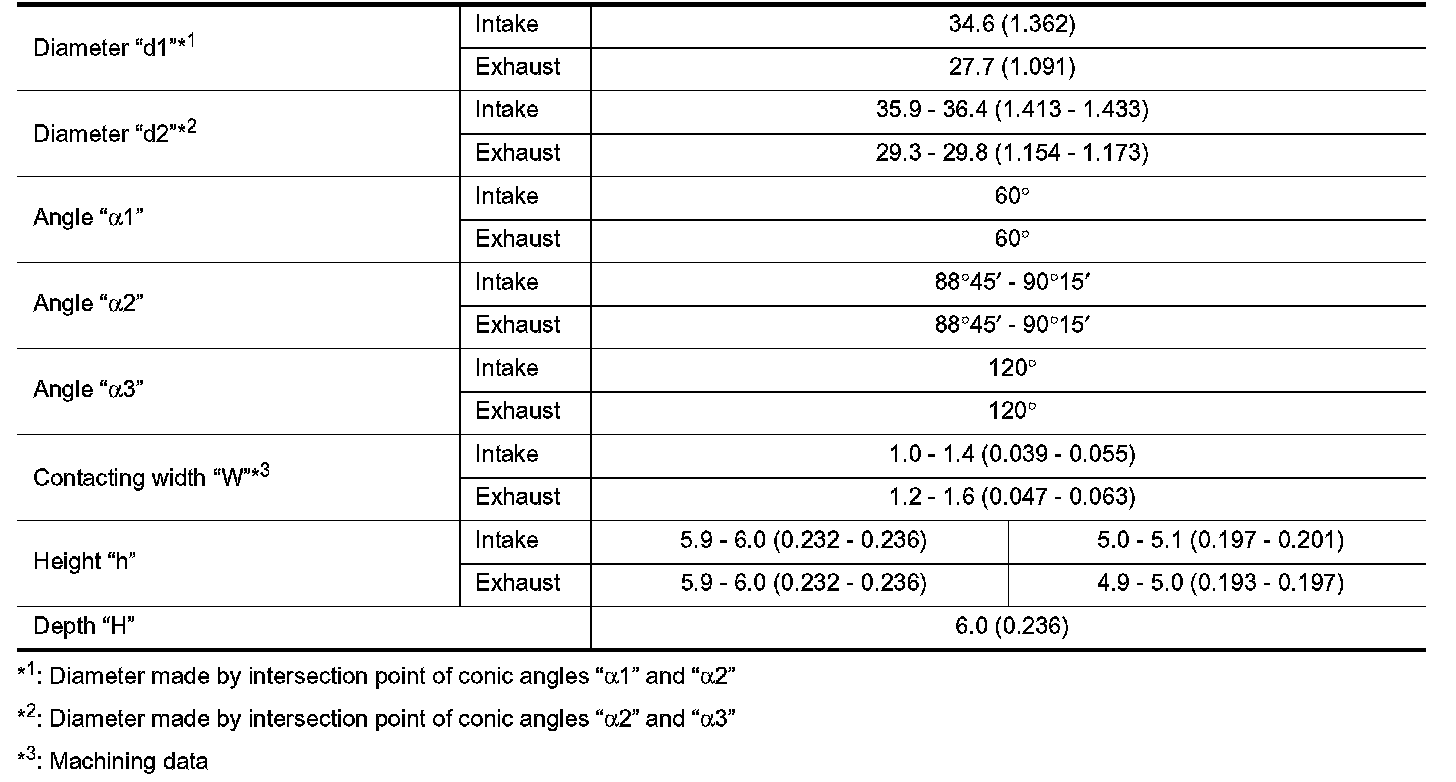

Valve Seat

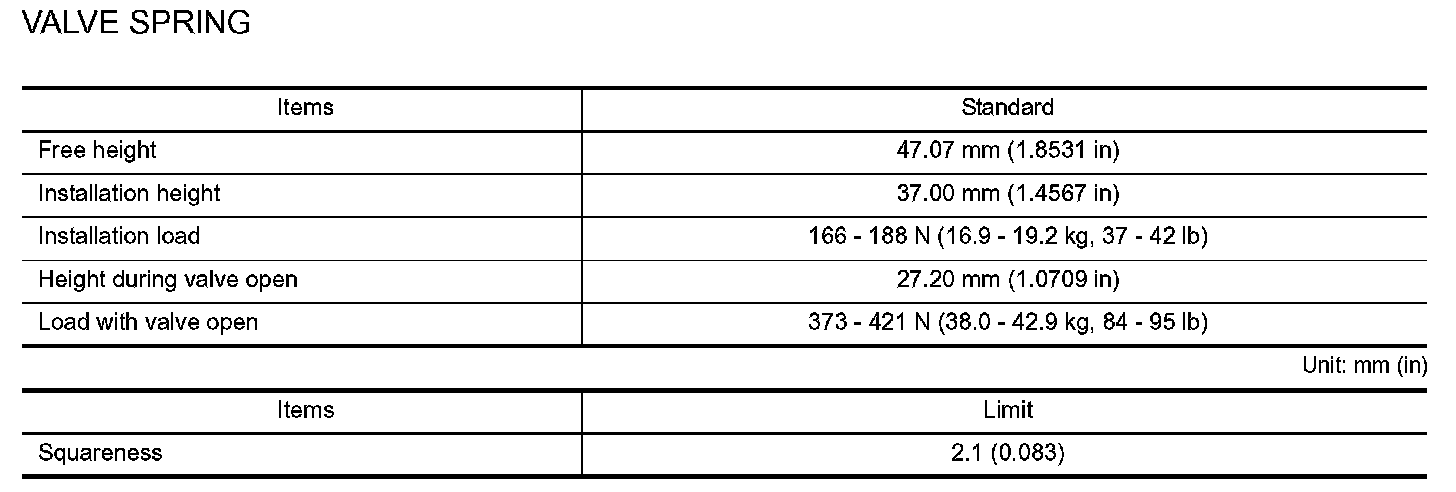

Valve Spring







Main Bearing

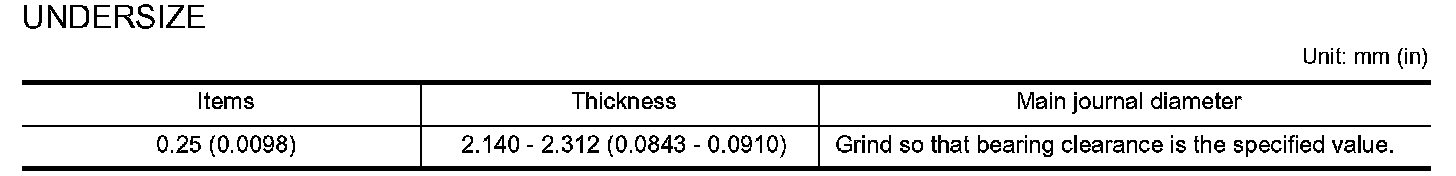

Undersize

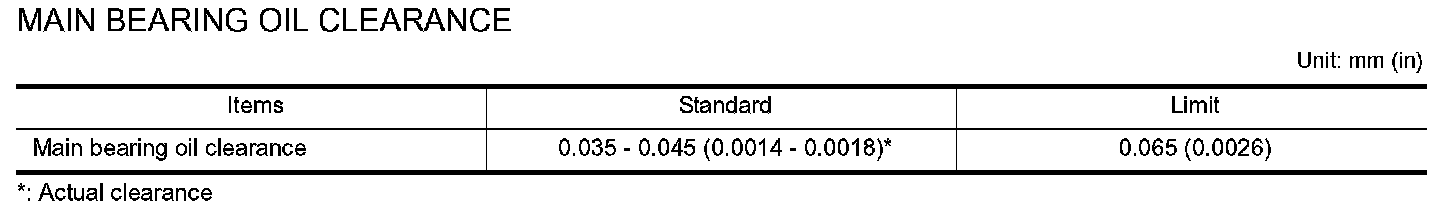

Main Bearing Oil Clearance

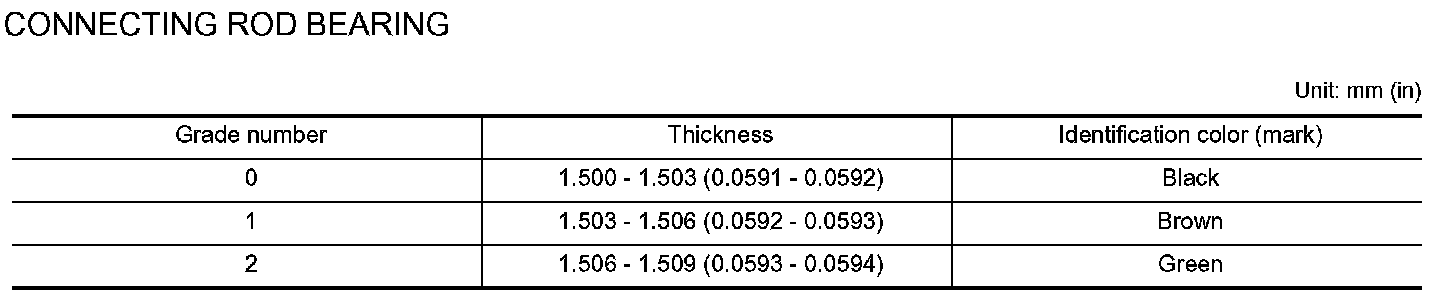

Connecting Rod Bearing

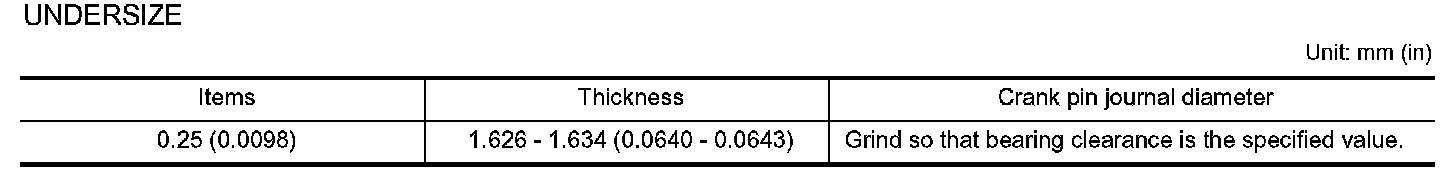

Undersize

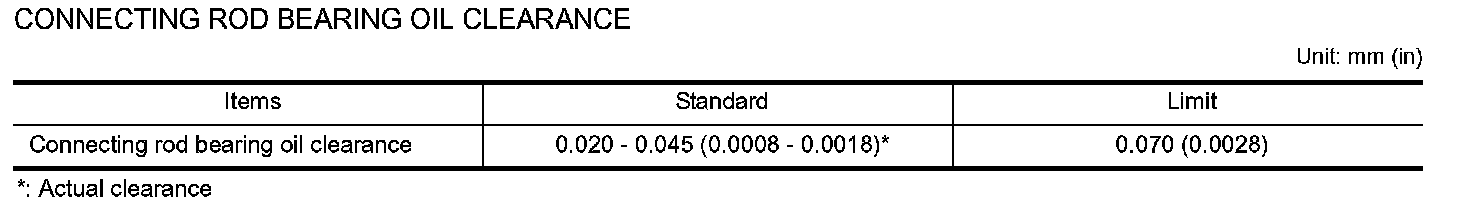

Connecting Rod Bearing Oil Clearance







Main Bearing Cap

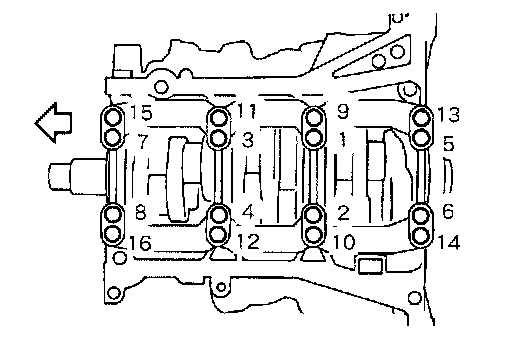

Install main bearing cap bolts in numerical order as shown in the figure as follows

Arrow indicates Engine front

Tighten main bearing cap bolts in several different steps.

Torque: 35.3 N.m (3.6 kg-m, 26 ft-lb)

Turn all main bearing cap bolts 90 degrees clockwise (angle tightening).


Crankshaft Pulley

Tighten crankshaft pulley bolt.

Torque: 44.1 N.m (4.5 kg-m, 33 ft-lb)
