Timing Cover

FRONT TIMING CHAIN CASE

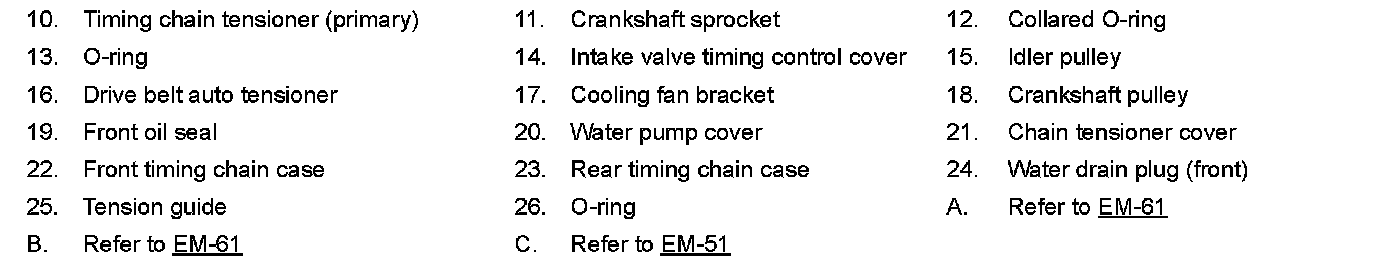

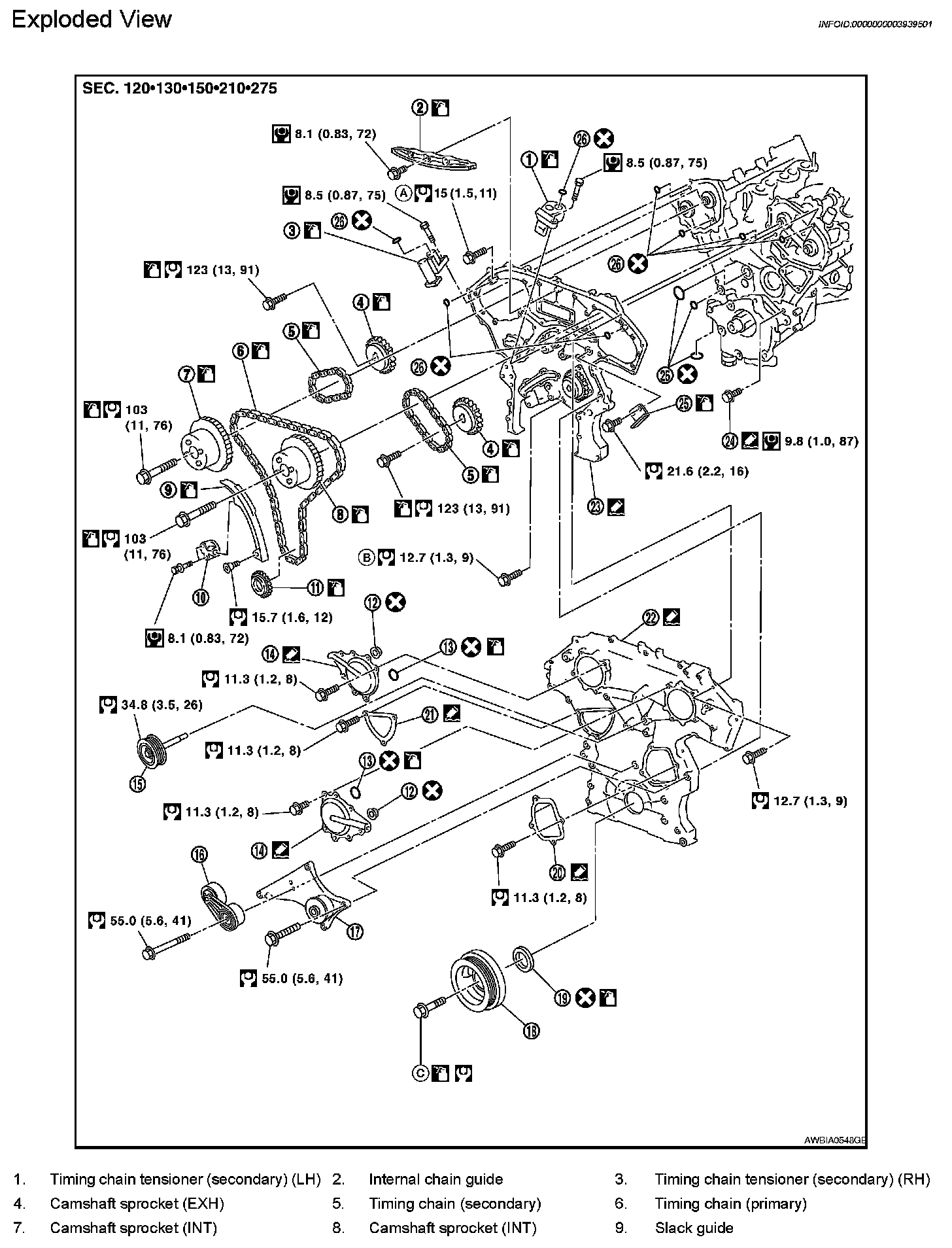

Exploded View

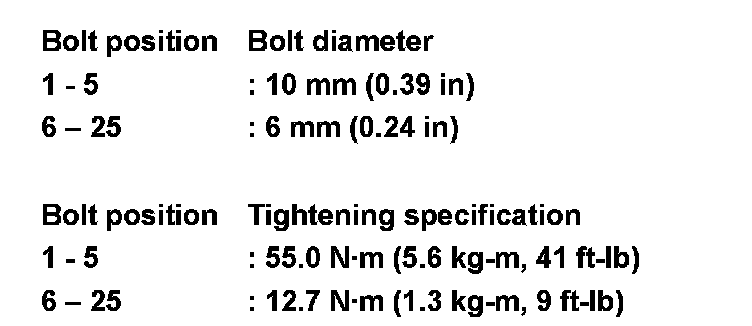

Tighten bolts to the specified torque in numerical order as shown.
After all bolts are tightened, retighten them to the specified torque in numerical order as shown.
- There are four type of bolts.
