Control Module HVAC: Service and Repair

CONTROL UNIT


Removal and Installation


FRONT AIR CONTROL (MANUAL A/C)

Removal
1. Remove cluster lid C. Refer to Exploded View.





2. Remove the four screws securing the front air control to cluster lid C.
3. Remove the front air control.

Installation
Installation is in the reverse order of removal.

A/C AND AV SWITCH ASSEMBLY (AUTOMATIC A/C)

Removal and Installation
The front A/C switch is integrated into the A/C and AV switch assembly in cluster lid C in the instrument panel. Refer to Exploded View.

A/C AUTO AMP. (AUTOMATIC A/C)

Removal
1. Remove the display unit. Refer to Mid Audio.

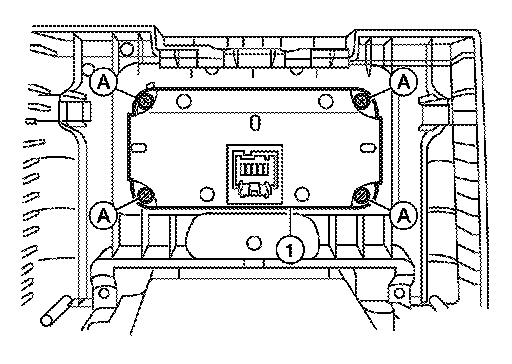

2. Remove the four A/C auto amp. screws (A) and remove the A/C auto amp. (1) from the back of the display unit (2).

Installation
Installation is in the reverse order of removal.

REAR AIR CONTROL (FRONT)

Removal
1. Remove the front roof console finisher from the front roof console. Refer to Service and Repair.

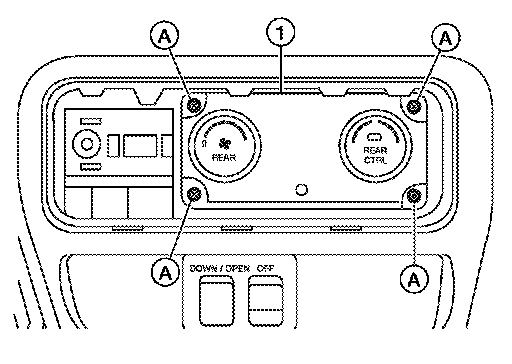

2. Remove the four rear air control (front) screws (A), disconnect the rear air control (front) connector and remove the rear air control (front) (1) from the front roof console.

Installation
Installation is in the reverse order of removal.

REAR AIR CONTROL (REAR)

Removal
1. Remove the rear finisher assembly from the center console. Refer to Exploded View.





2. Remove the four rear air control (rear) screws (A) and remove the rear air control (rear) (1) from the rear finisher assembly.

Installation
Installation is in the reverse order of removal.
