A/T Shift Lock System
A/T Shift Lock System
A/T SHIFT LOCK SYSTEM

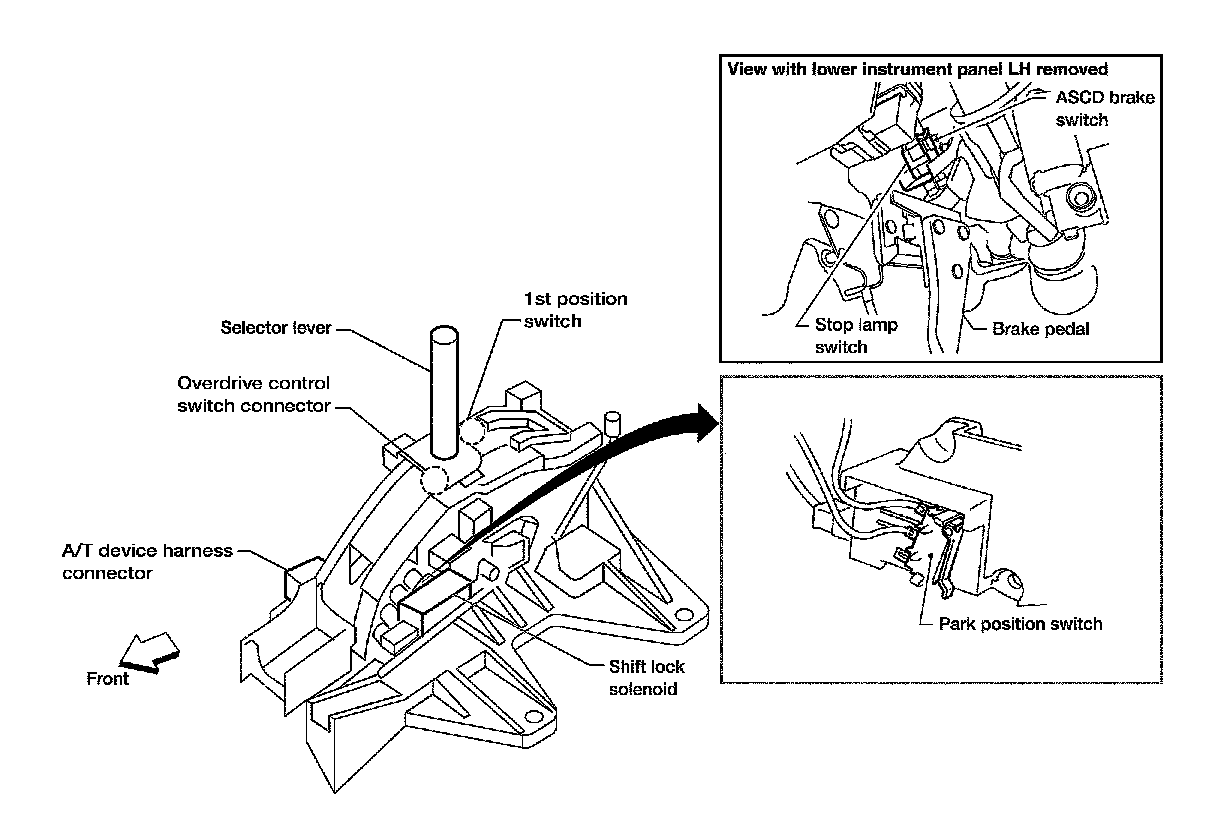

Shift Lock System Electrical Parts Location (Without Manual Mode)
