Timing Cover

Front Cover

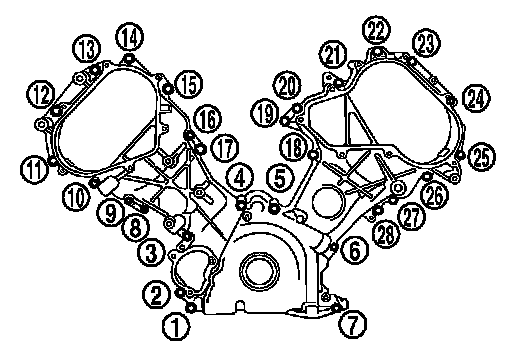

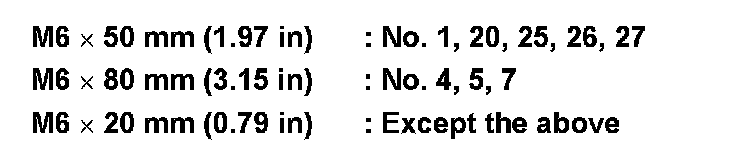

Install the bolts in the numerical order shown.











After tightening, re-tighten to the specified torque.

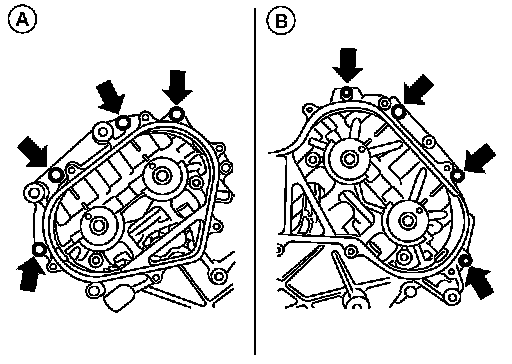

Tighten the RH (A) and LH (B) front cover bolts (4 for each bank) as shown to the specified torque.

Front cover bolts 11.0 N.m (1.1 kg-m, 8 ft-lb)
