Power Distribution Module: Service and Repair

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)


Removal and Installation of IPDM E/R


REMOVAL
1. Disconnect the negative battery terminal.

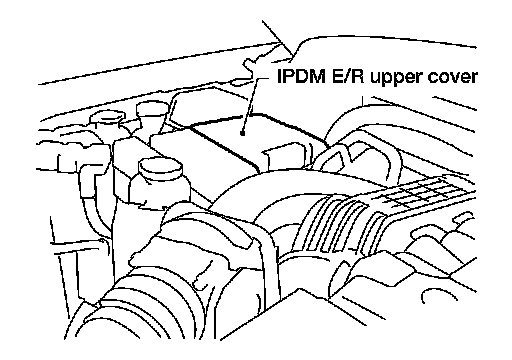

2. Remove the IPDM E/R upper cover.

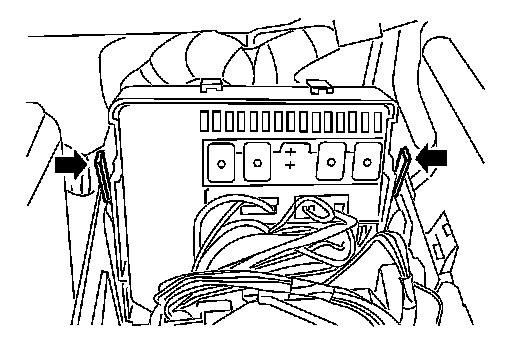

3. Release 2 clips and pull the IPDM E/R up from case.





4. Disconnect the IPDM E/R connectors and remove the IPDM E/R.

INSTALLATION
Installation is in the reverse order of removal.
