Multifunction Remote ENT

DIAGNOSIS SYSTEM (BCM)


MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)


BCM CONSULT-III FUNCTION

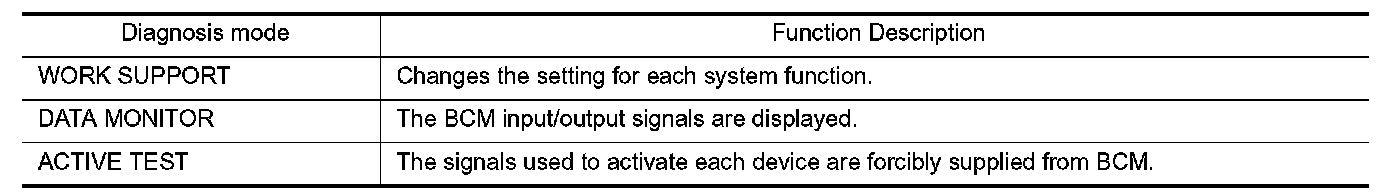

CONSULT-III performs the following functions via CAN communication with BCM.

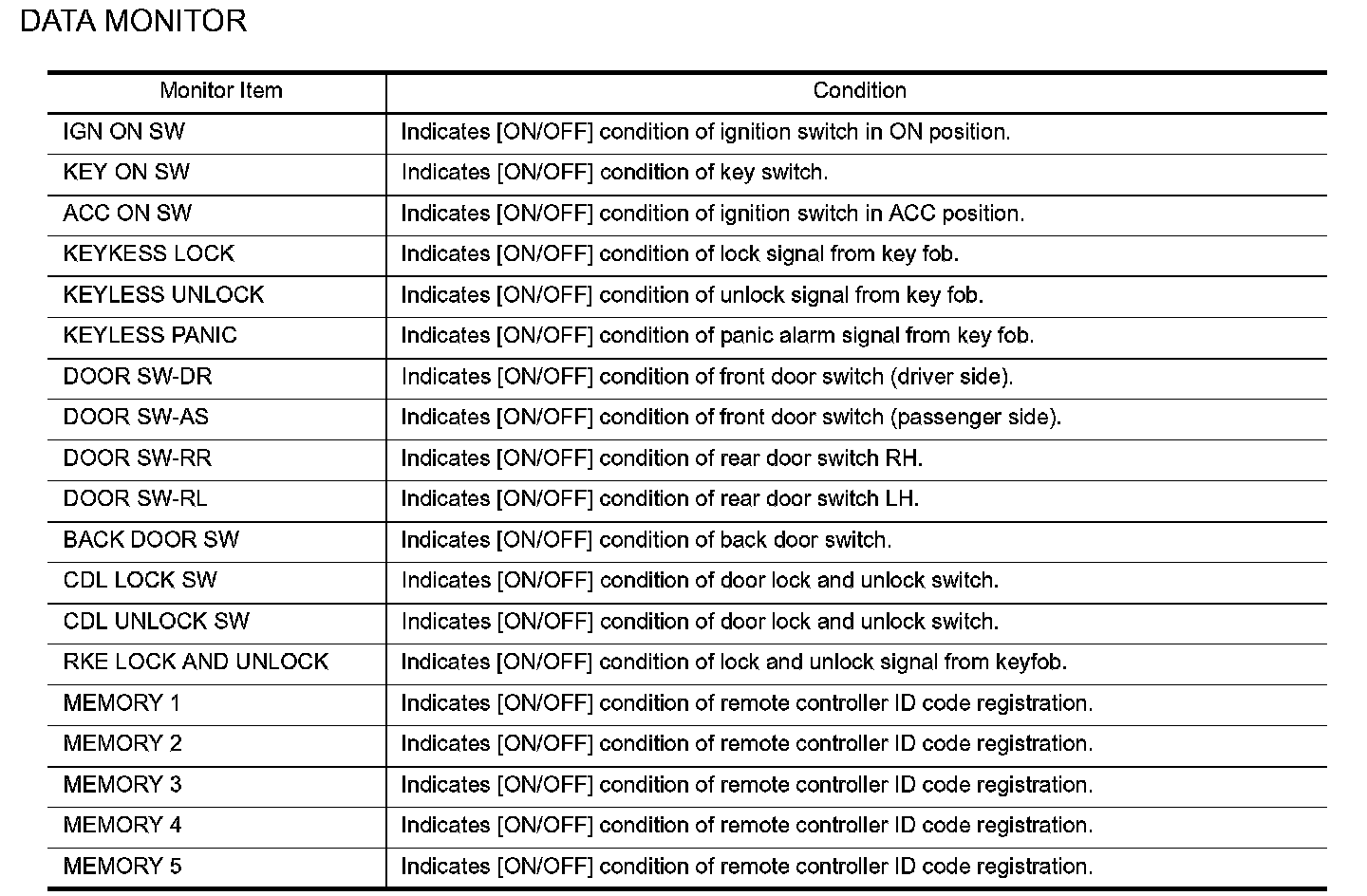

DATA MONITOR

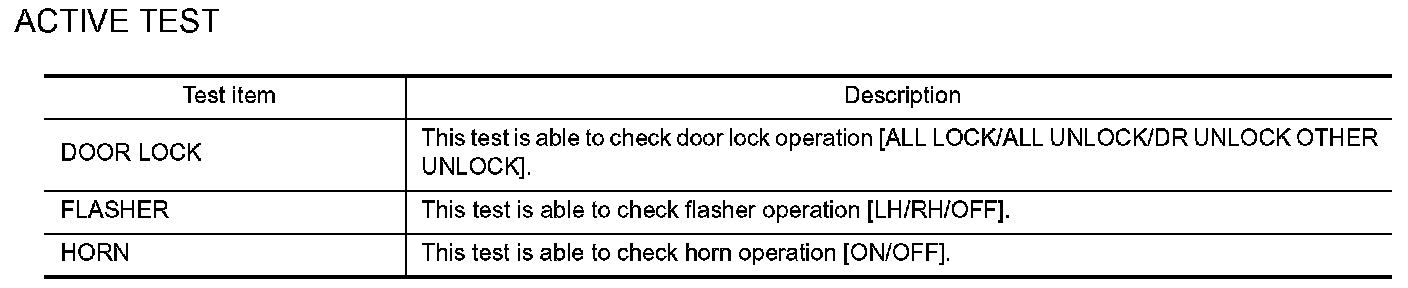

ACTIVE TEST

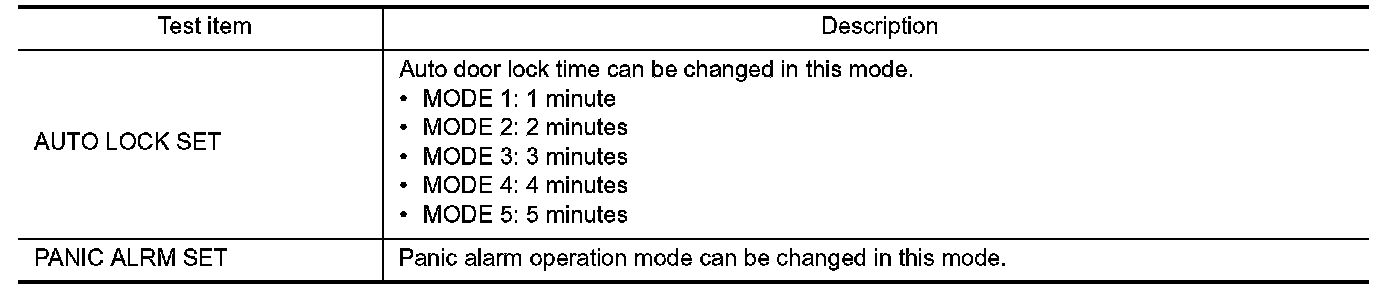

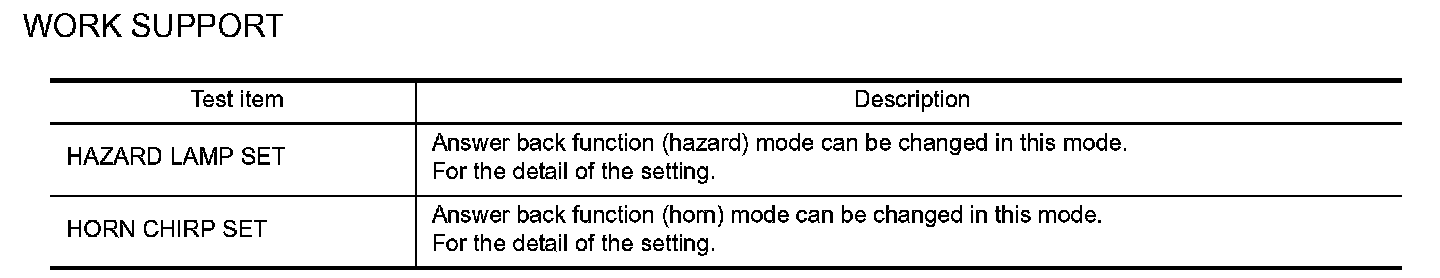

WORK SUPPORT
