Configuration List





INSPECTION AND ADJUSTMENT


CONFIGURATION (BCM) : Configuration list

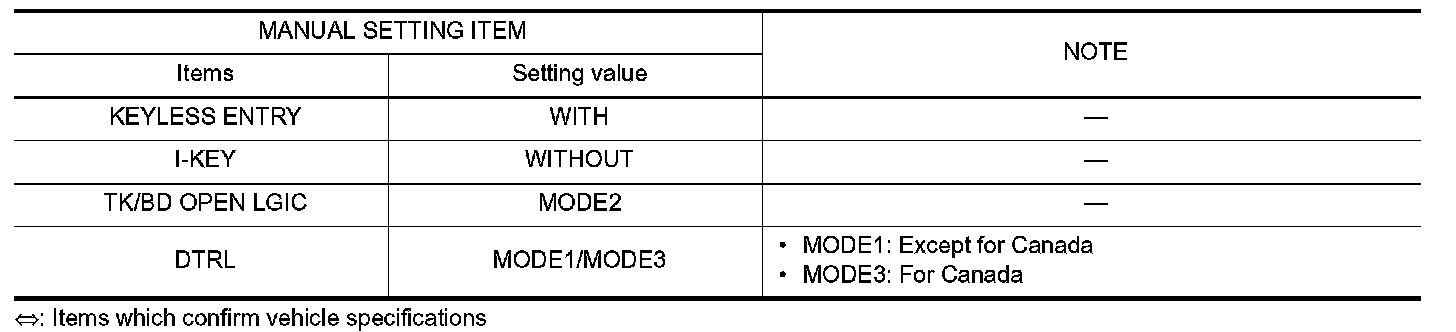

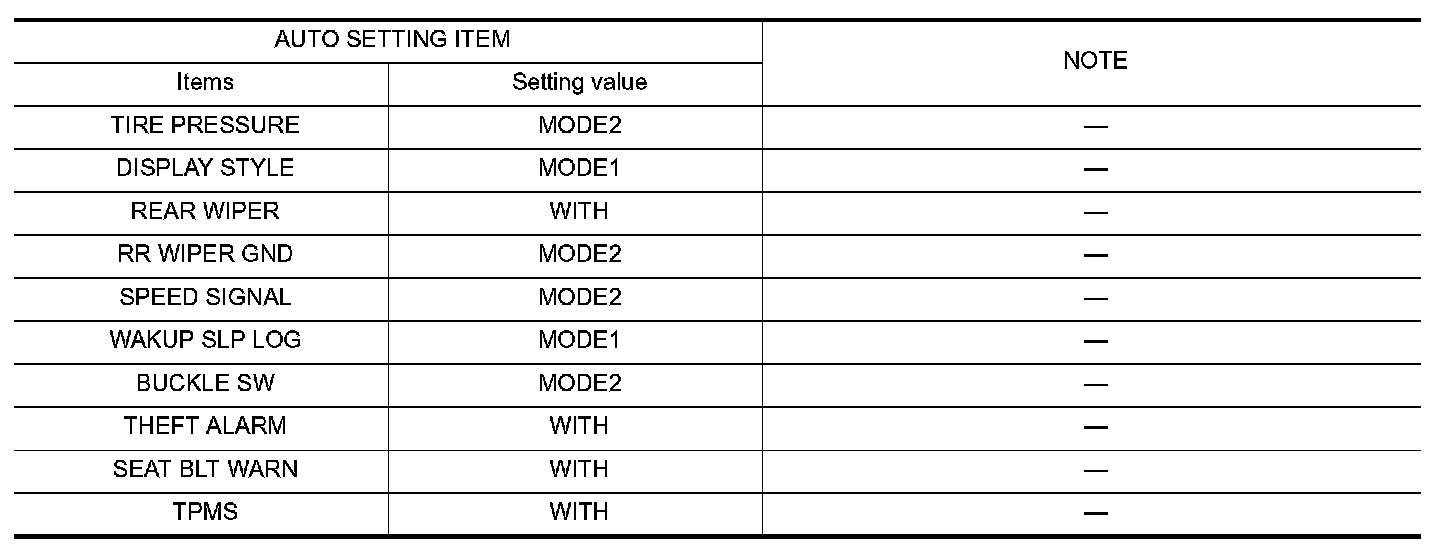

EXCEPT FOR MEXICO, WITHOUT I-KEY

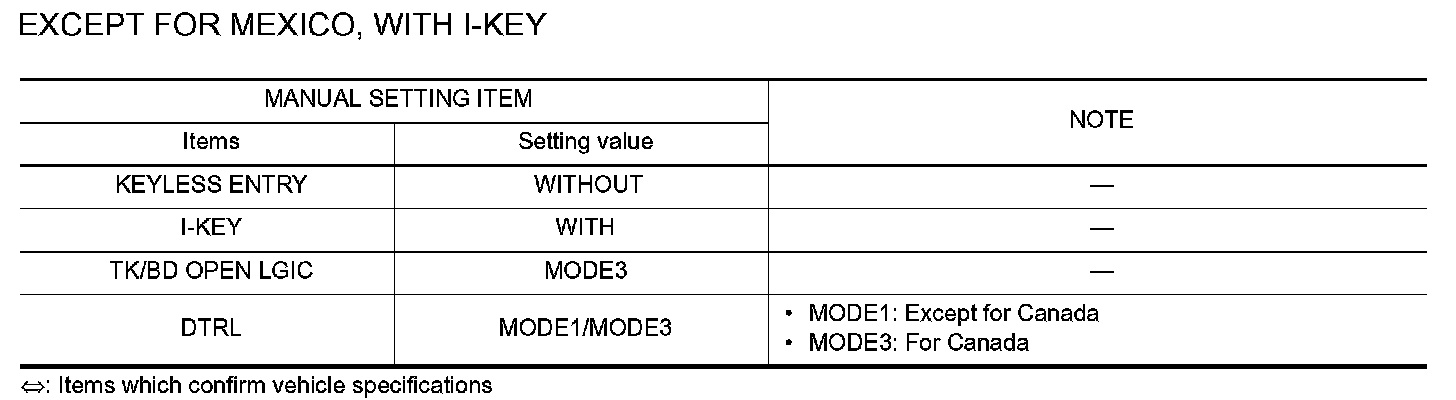

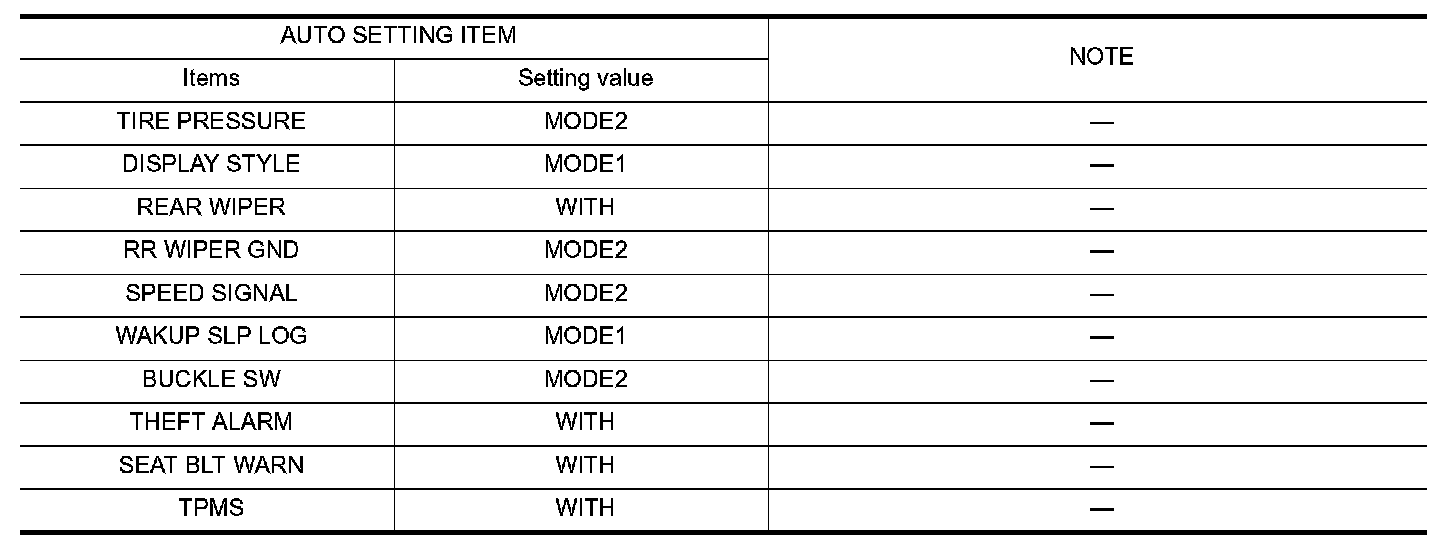

EXCEPT FOR MEXICO, WITH I-KEY

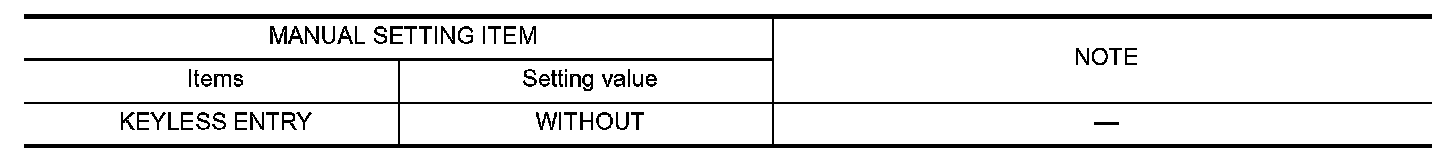

FOR MEXICO
