Control Module HVAC: Service and Repair

CONTROL UNIT


Removal and Installation


FRONT AIR CONTROL (MANUAL A/C)

Removal
1. Remove the AT finisher. Exploded View
2. Remove the cup holder.





3. Remove cluster lid C. Exploded View.

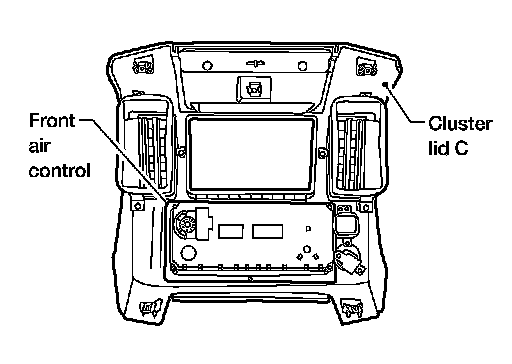

4. Remove the 4 screws securing the front air control to cluster lid C.
5. Remove the front air control.

Installation
Installation is in the reverse order of removal.

A/C AND AV SWITCH ASSEMBLY (AUTOMATIC A/C)

Removal and Installation
The front A/C switch is integrated into the A/C and AV switch assembly in cluster lid C in the instrument panel. Audio Unit Base, Removal And Installation Bose Audio Without Navigation Bose without Navi, Removal And Installation Bose Audio With Navigation Bose with Navi.

A/C AUTO AMP. (AUTOMATIC A/C)

Removal
Remove the display unit. Audio Unit Base, Removal And Installation Bose Audio Without Navigation, Removal And Installation Bose Audio With Navigation.

Installation
Installation is in the reverse order of removal.

REAR AIR CONTROL (FRONT)

Removal
1. Remove the front roof console finisher from the front roof console. Service and Repair.

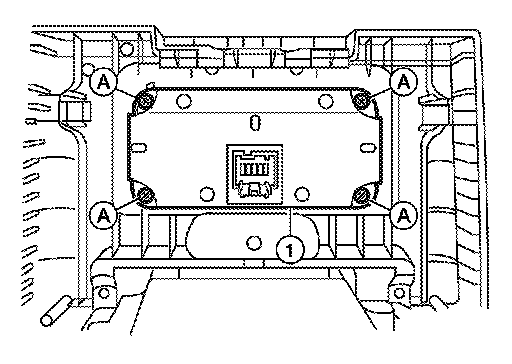

2. Remove the 4 rear air control (front) screws (A), disconnect the rear air control (front) connector and remove the rear air control
(front) (1) from the front roof console.

Installation
Installation is in the reverse order of removal.

REAR AIR CONTROL (REAR)

Removal
1. Remove the rear finisher assembly from the center console. Exploded View.

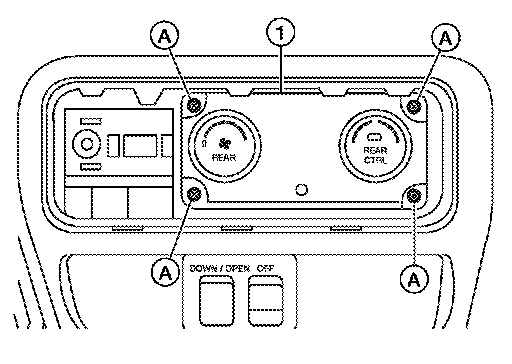

2. Remove the 4 rear air control (rear) screws (A) and the rear air control (rear) (1) from the rear finisher assembly.

Installation
Installation is in the reverse order of removal.
