Nissan-Datsun Truck
>>
2012
>>
Frontier 2WD L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Description and Operation
>>
A/T Control System
>>

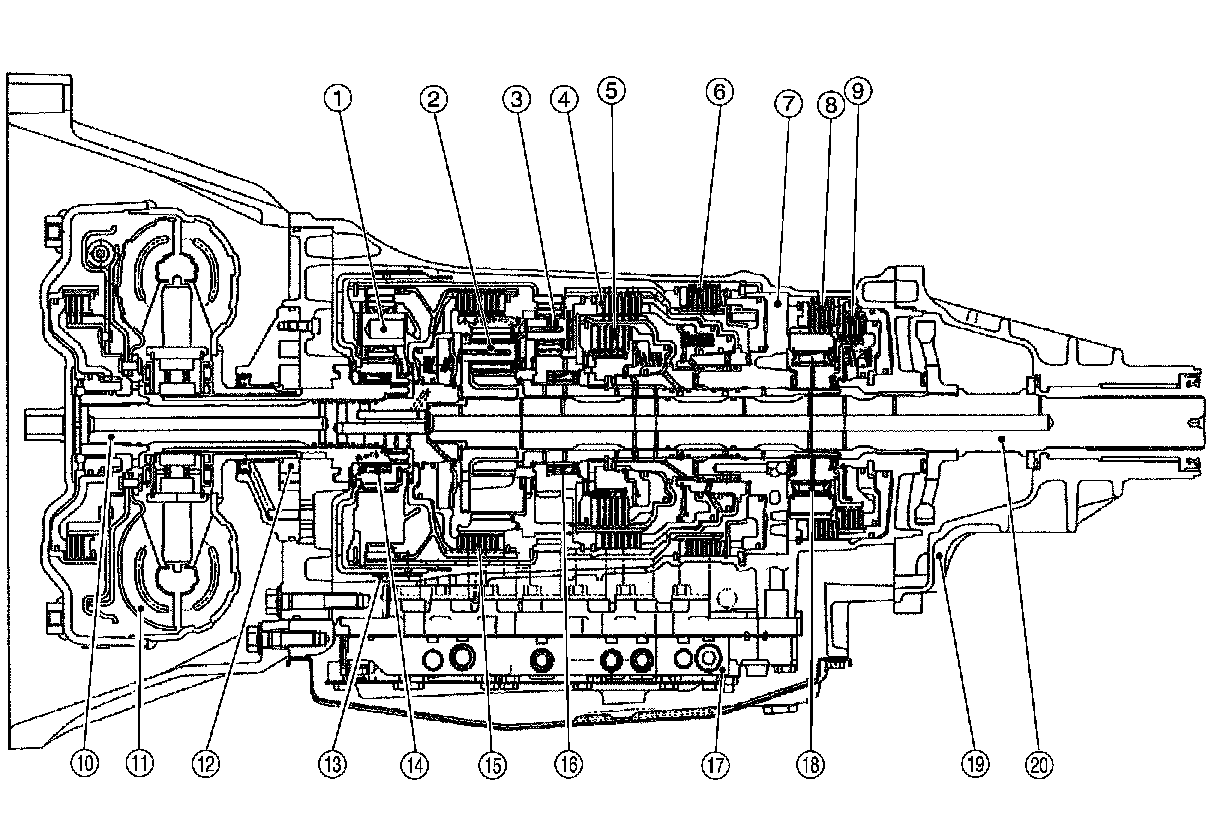

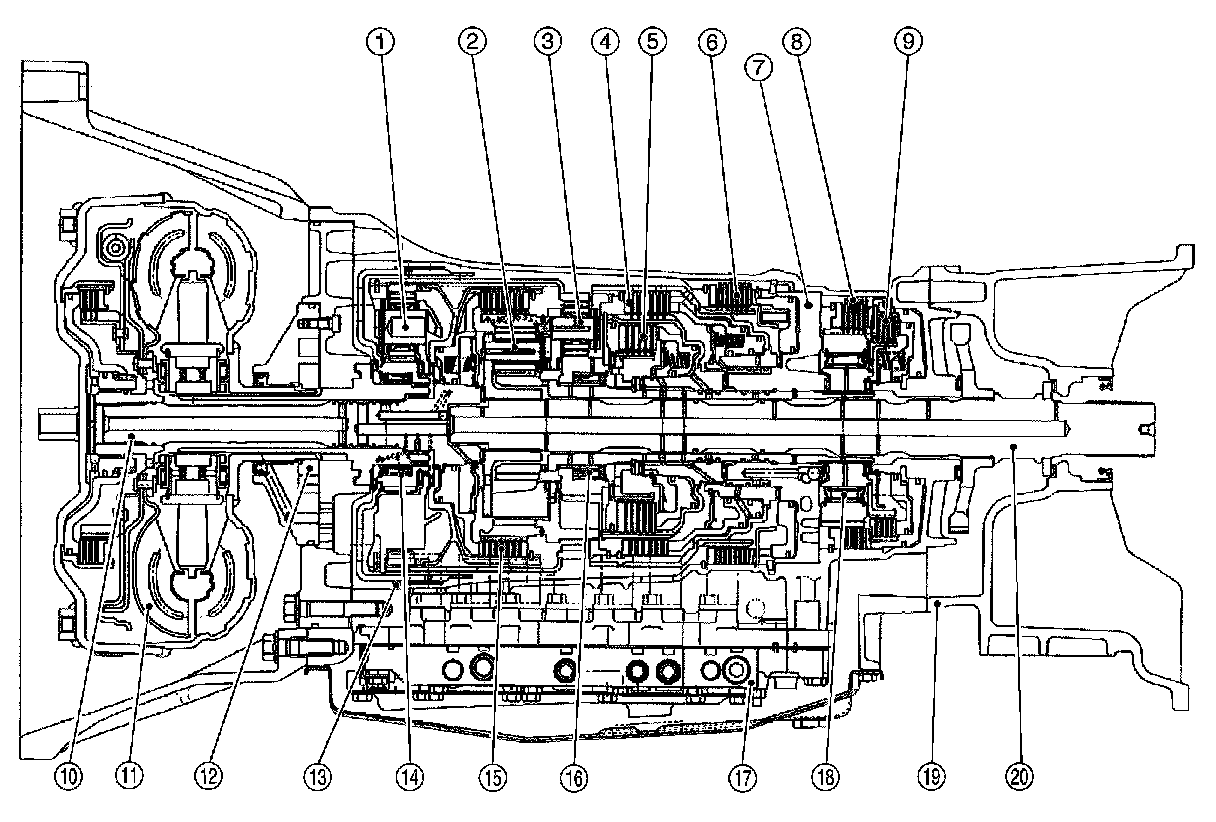

Cross-Sectional View
Cross-Sectional View
A/T CONTROL SYSTEM
Cross-Sectional View
