CONSULT Function (BCM - Intelligent Key)

DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)


BCM CONSULT FUNCTION

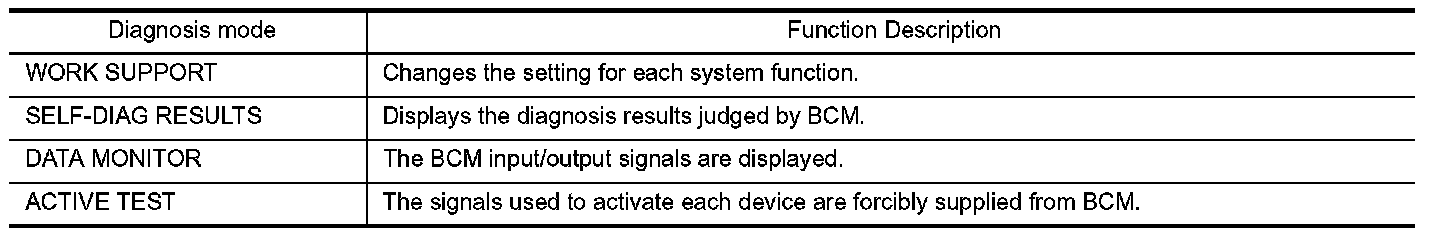

CONSULT performs the following functions via CAN communication with BCM.

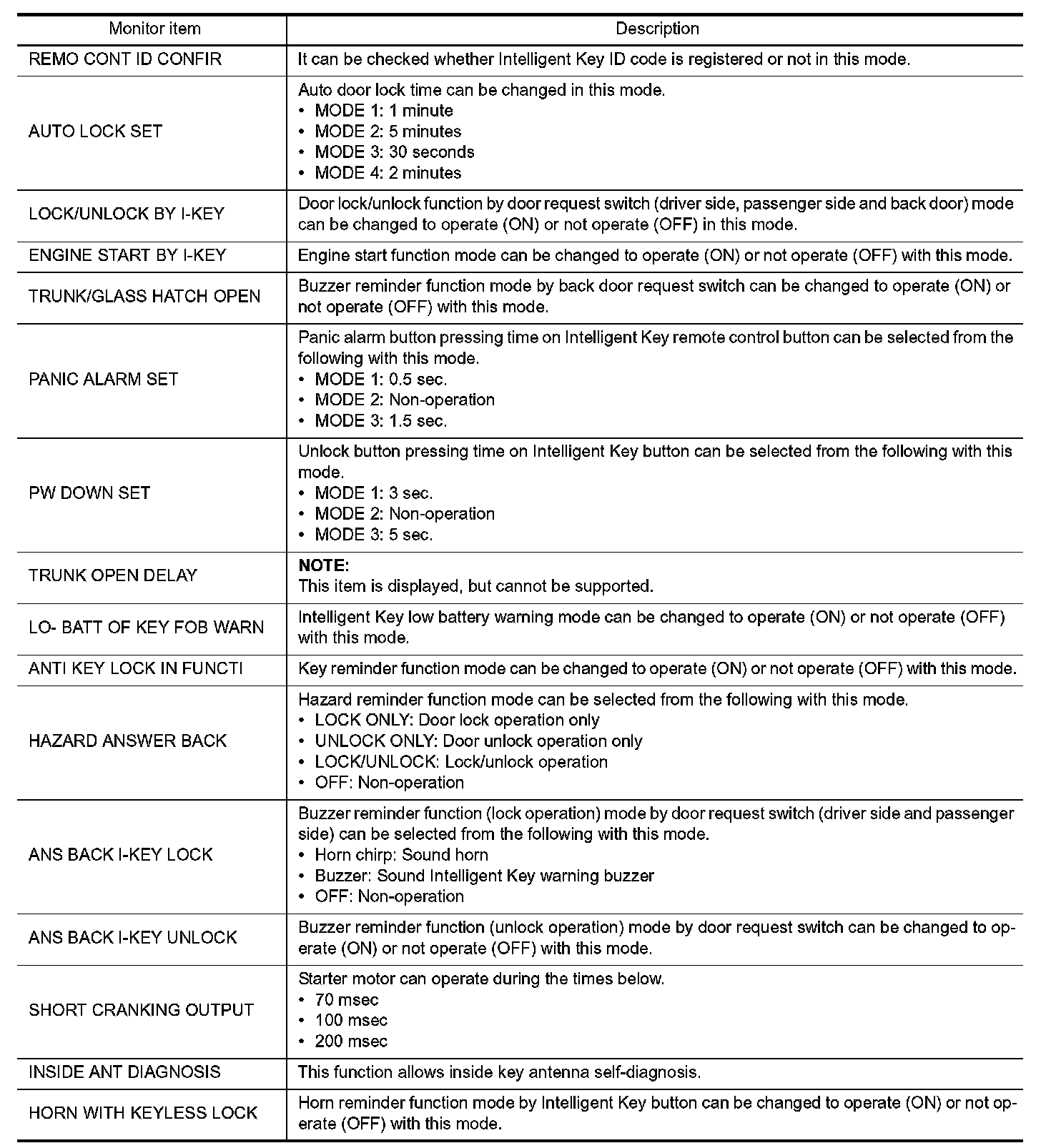

WORK SUPPORT







SELF-DIAG RESULT

Testing and Inspection.

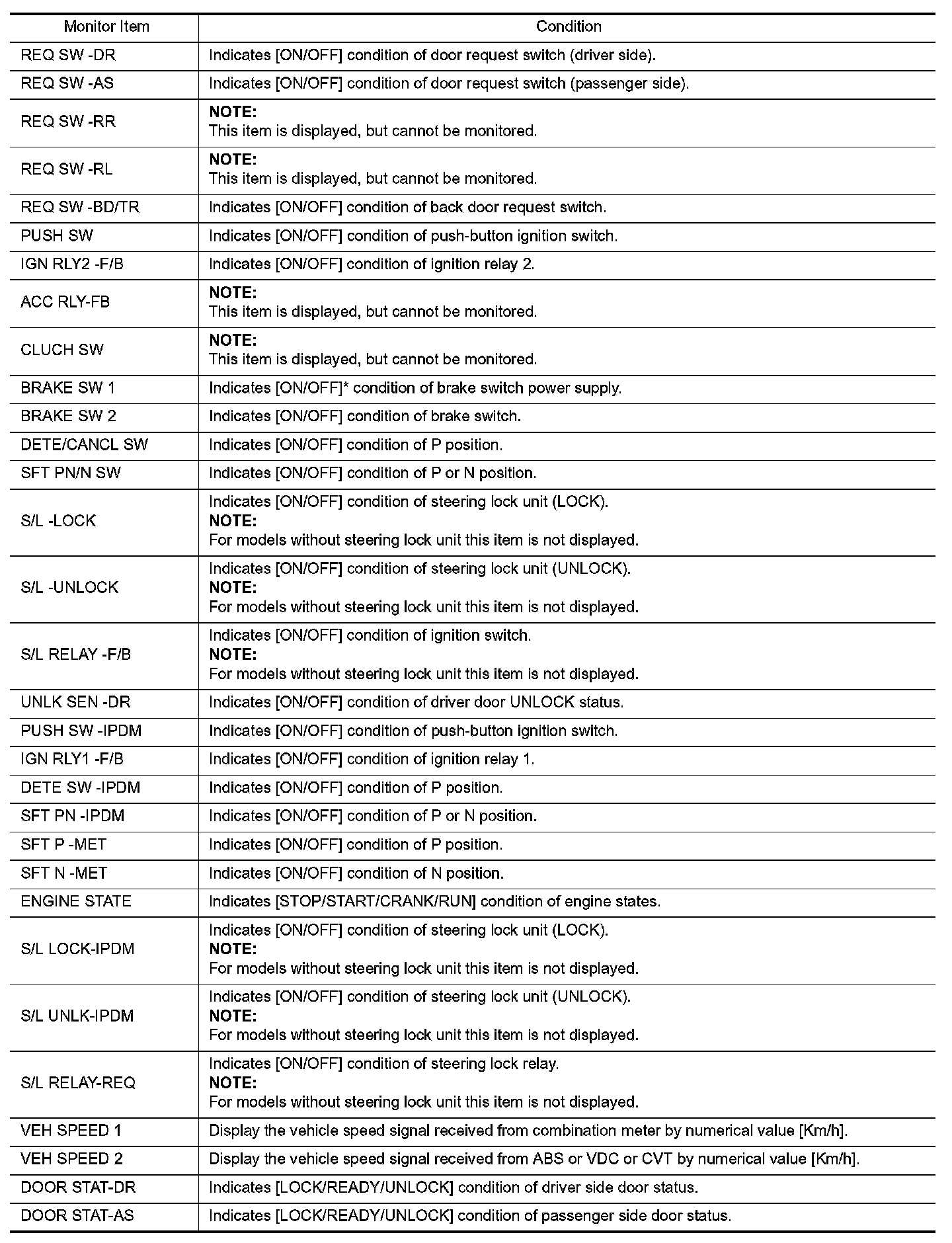

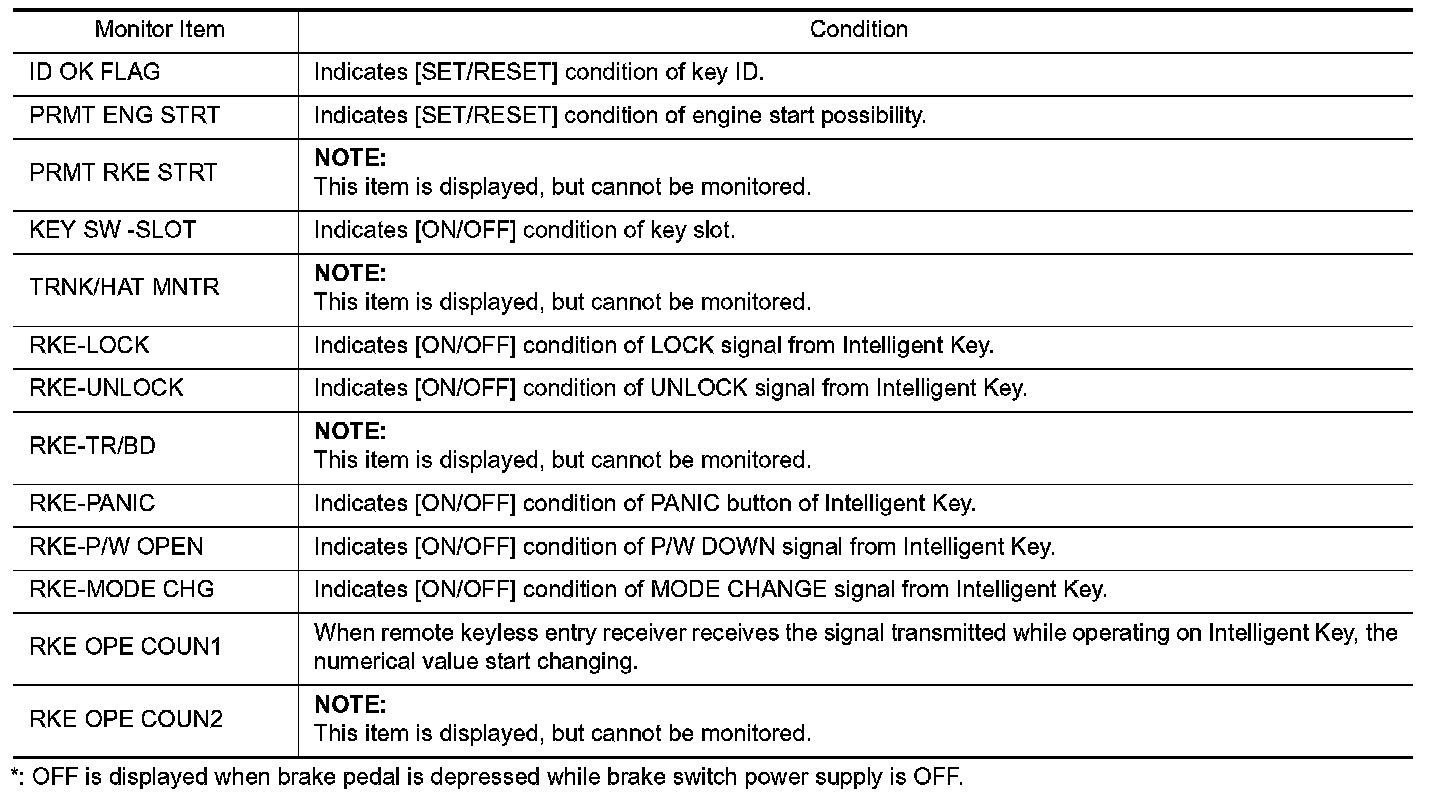

DATA MONITOR

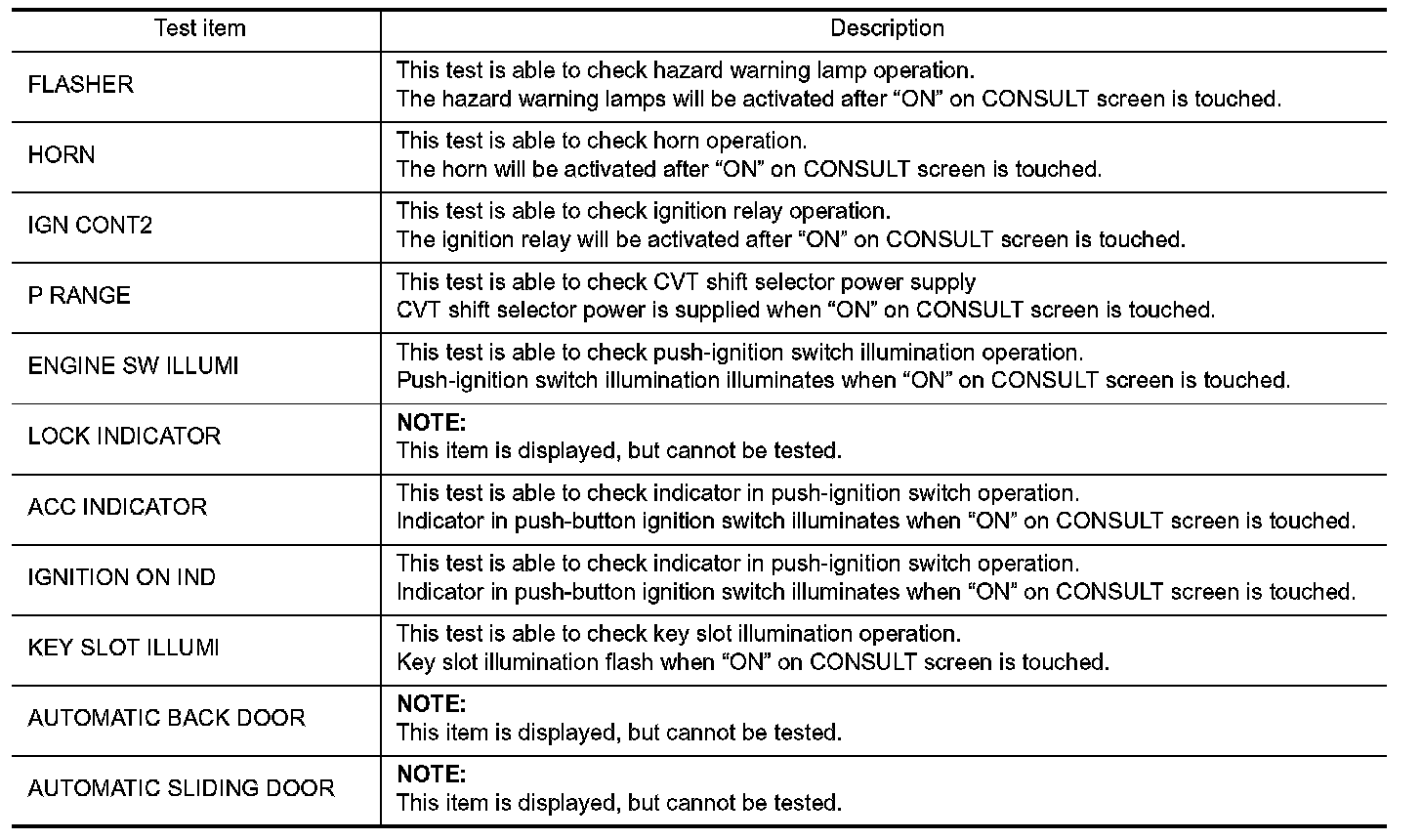

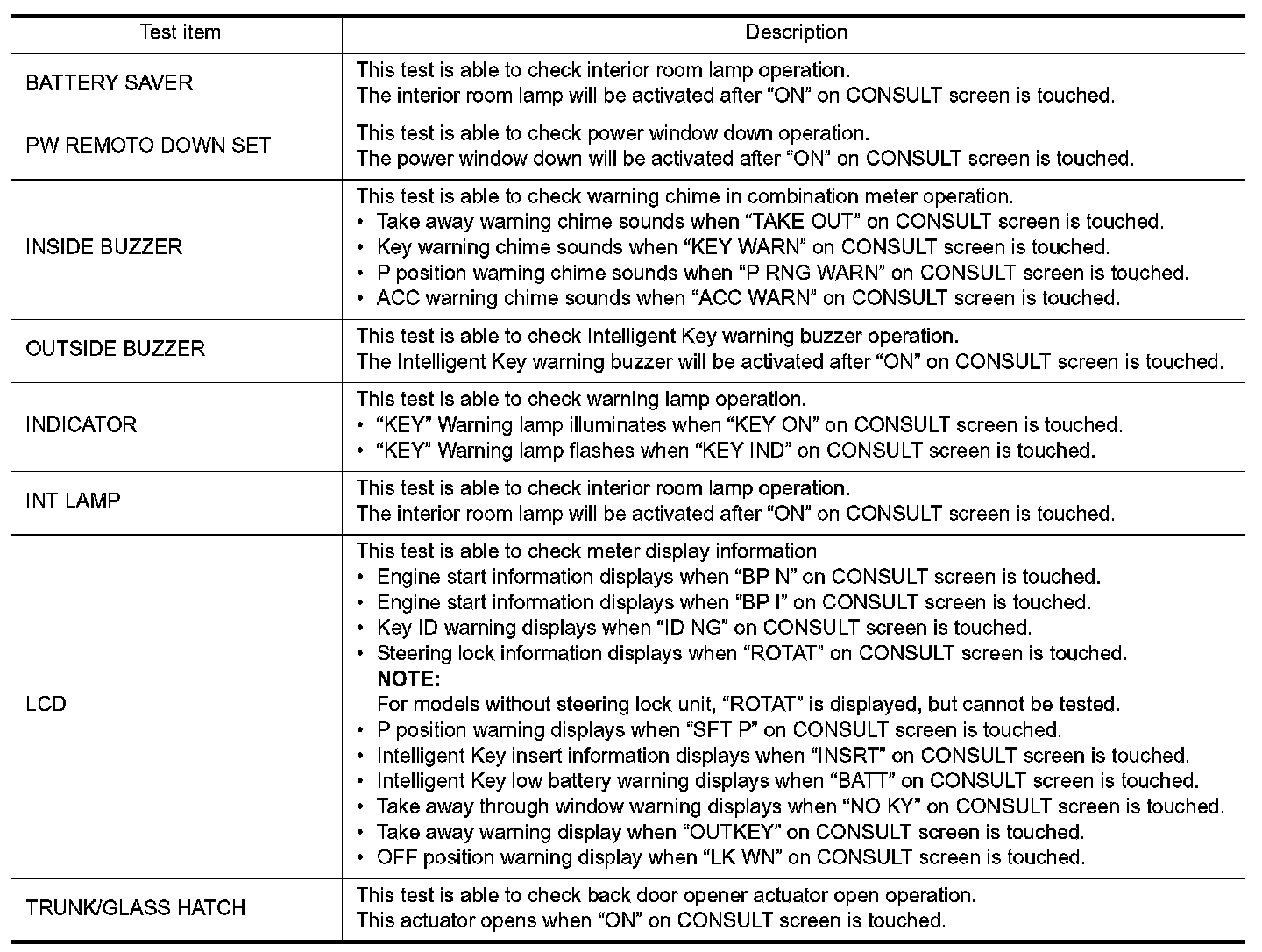

ACTIVE TEST
