Power Distribution Module: Service and Repair

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Removal and Installation of IPDM E/R


REMOVAL


CAUTION:
Never remove relays from an IPDM.
1.Disconnect the negative battery terminal.

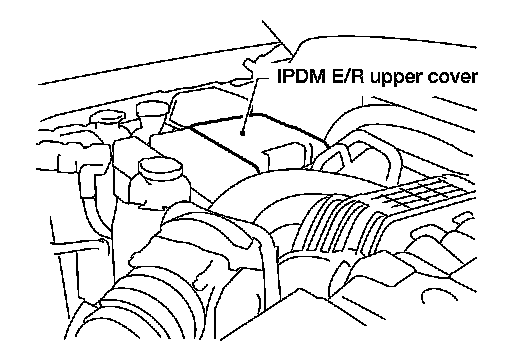

2.Remove the IPDM E/R upper cover.

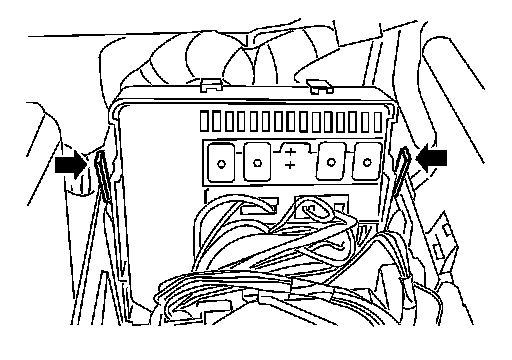

3.Release two clips and pull the IPDM E/R up from case.
4.Disconnect the IPDM E/R connectors and remove the IPDM E/
R.

INSTALLATION

Installation is in the reverse order of removal.
