Component Function Check

AUTOMATIC DOOR MAIN SWITCH

AUTOMATIC BACK DOOR CONTROL MODULE : Component Function Check


1. CHECK FUNCTION

1.Select "AUTO BACK DOOR" using CONSULT.
2.Select "MAIN SW" in "DATA MONITOR" mode.

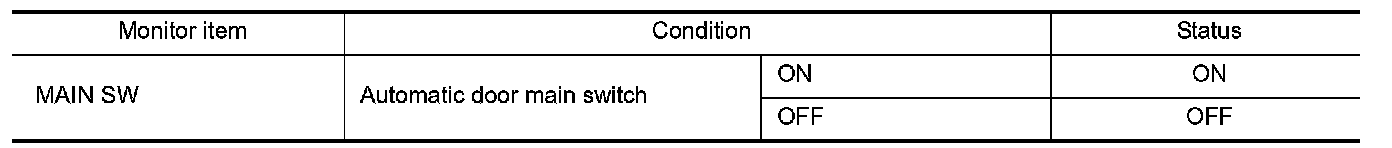

3.Check that the function operates normally according to the following conditions.





Is the inspection result normal?
YES- Automatic door main switch is OK.
NO- Diagnosis Procedure.
