FRONT A/C CONTROL
Removal and Installation
REMOVAL
1.Remove cluster lid C.
Removal And Installation
.

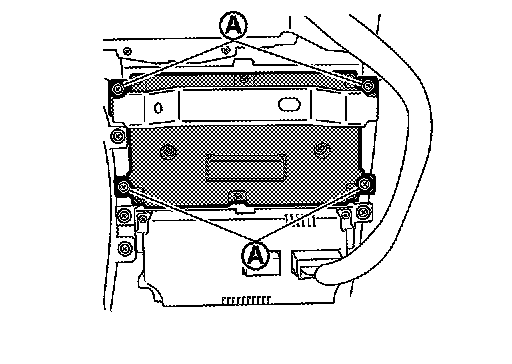

2.Remove fixing screws (A), and then remove front A/C control.
INSTALLATION
Install in the reverse order of removal.
