Rear A/C Control

REAR A/C CONTROL

Removal and Installation


REMOVAL

With Rear Display
1.Remove roof console. Removal And Installation.

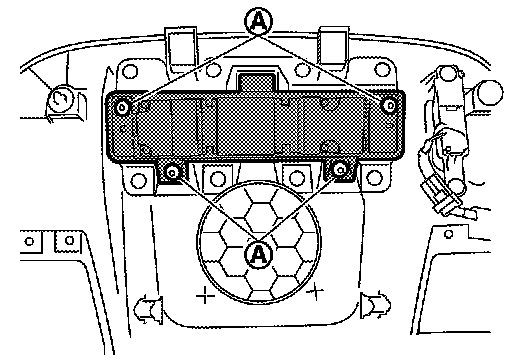

2.Remove fixing screws (A), and then remove rear A/C control.
Without Rear Display

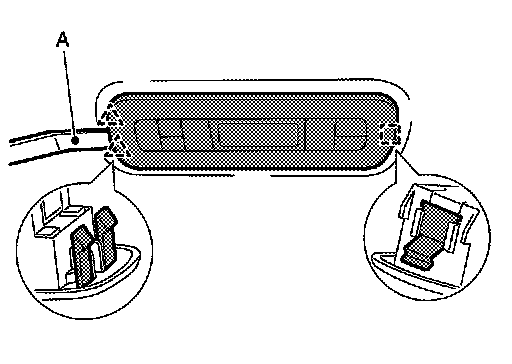

1.Disengage fixing pawls and metal clip using a remover tool (A).





2.Disconnect harness connector, and then remove rear A/C control.

INSTALLATION

Install in the reverse order of removal.
