Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (TCM)

CONSULT Function (TRANSMISSION)

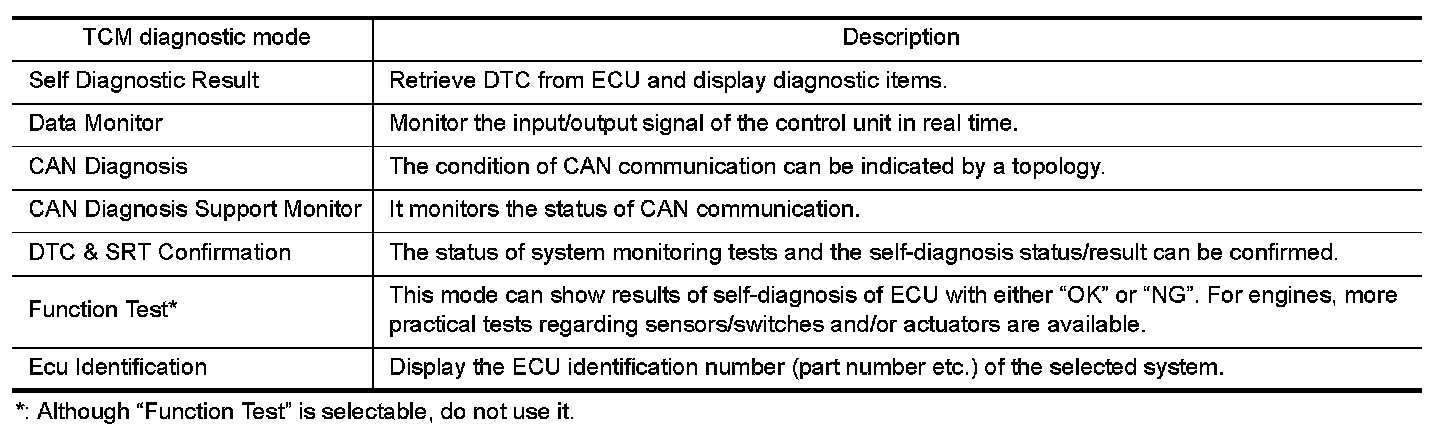

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

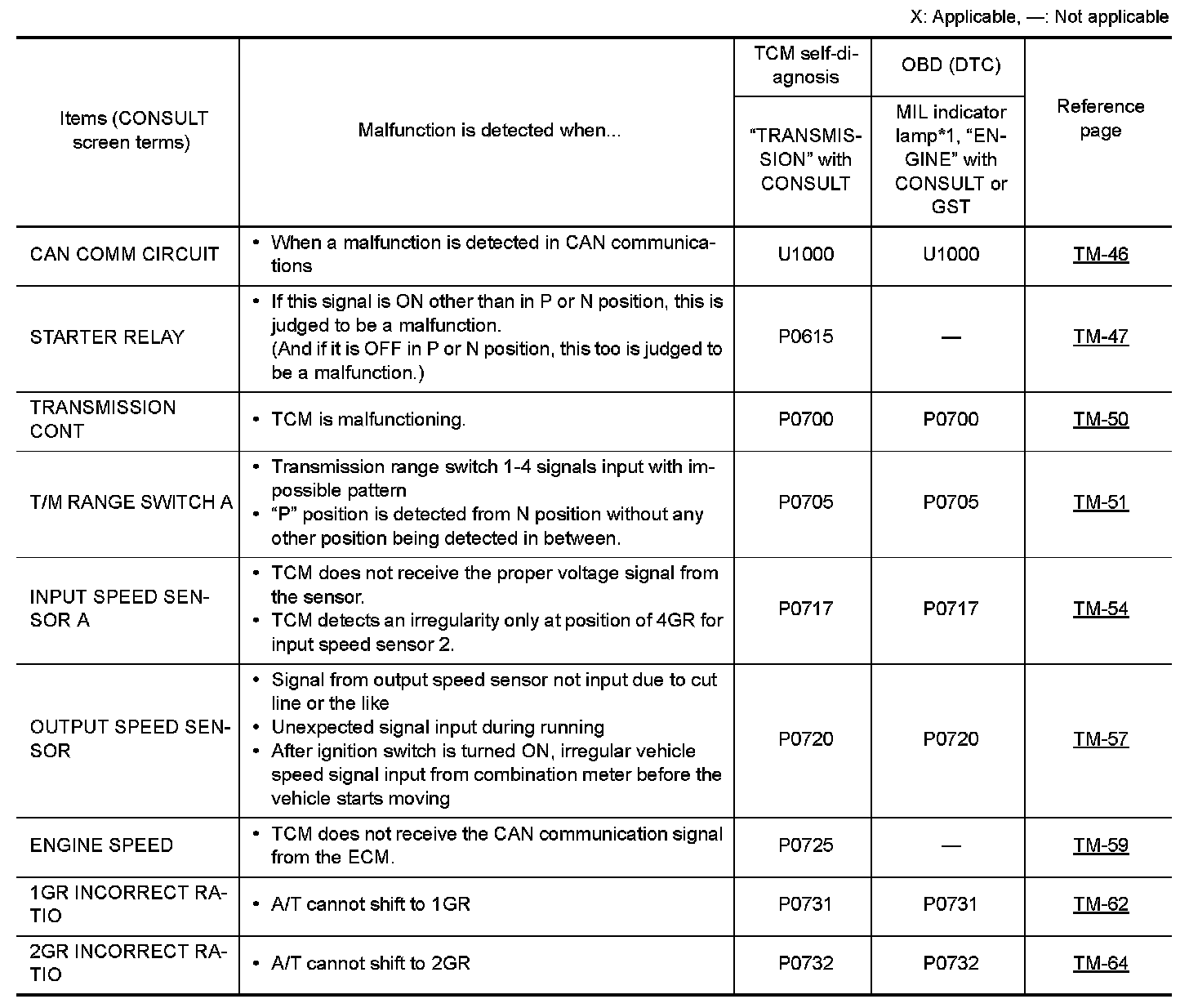

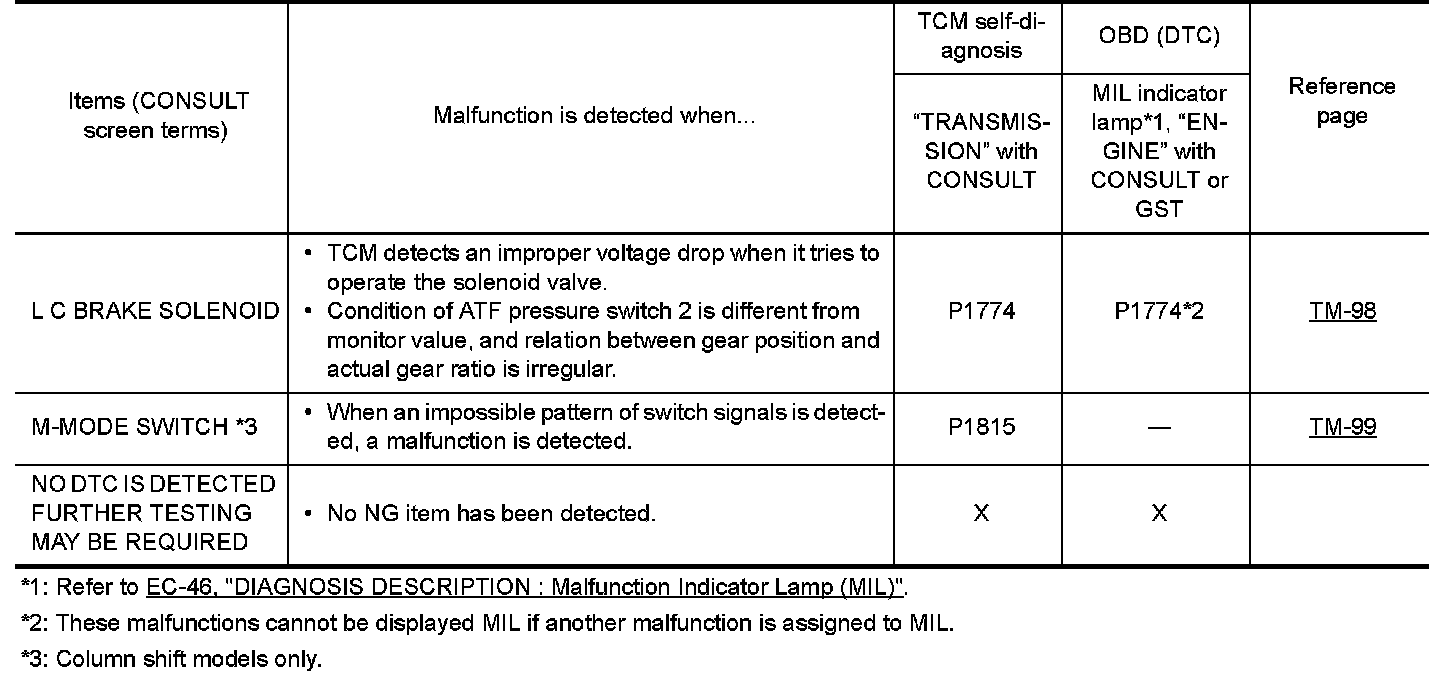

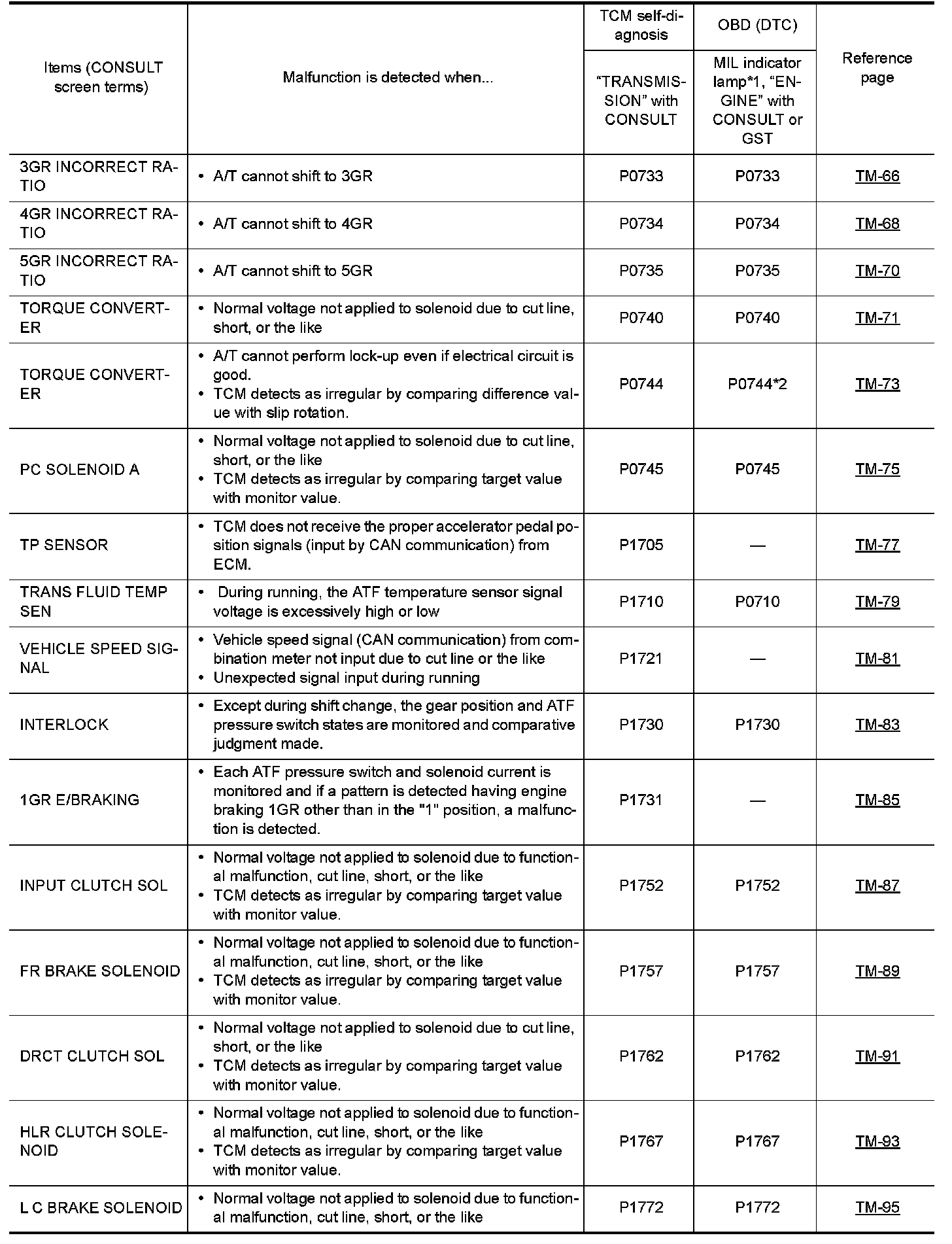

SELF-DIAGNOSTIC RESULT MODE

Display Items List
X: Applicable, -: Not applicable

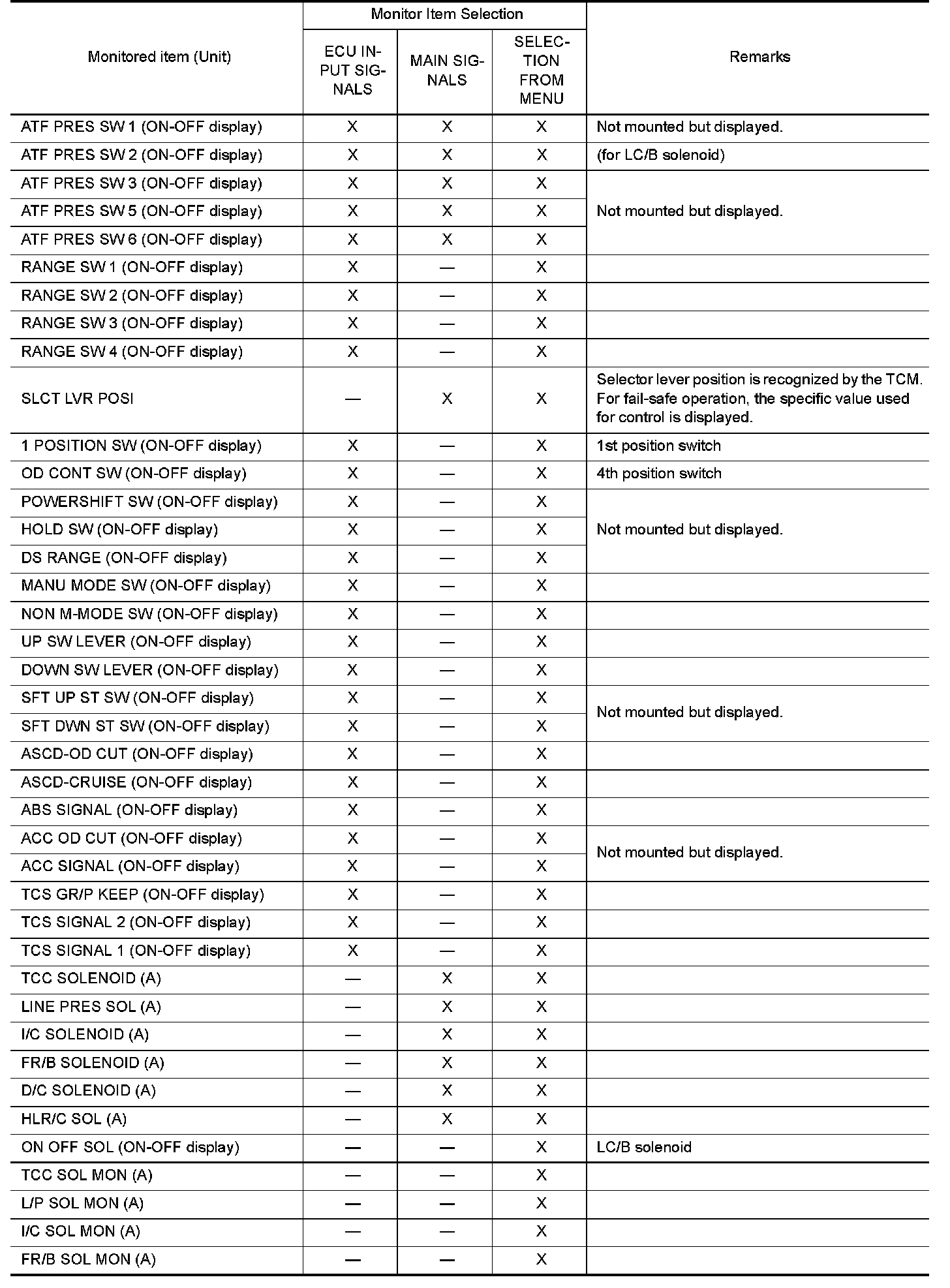

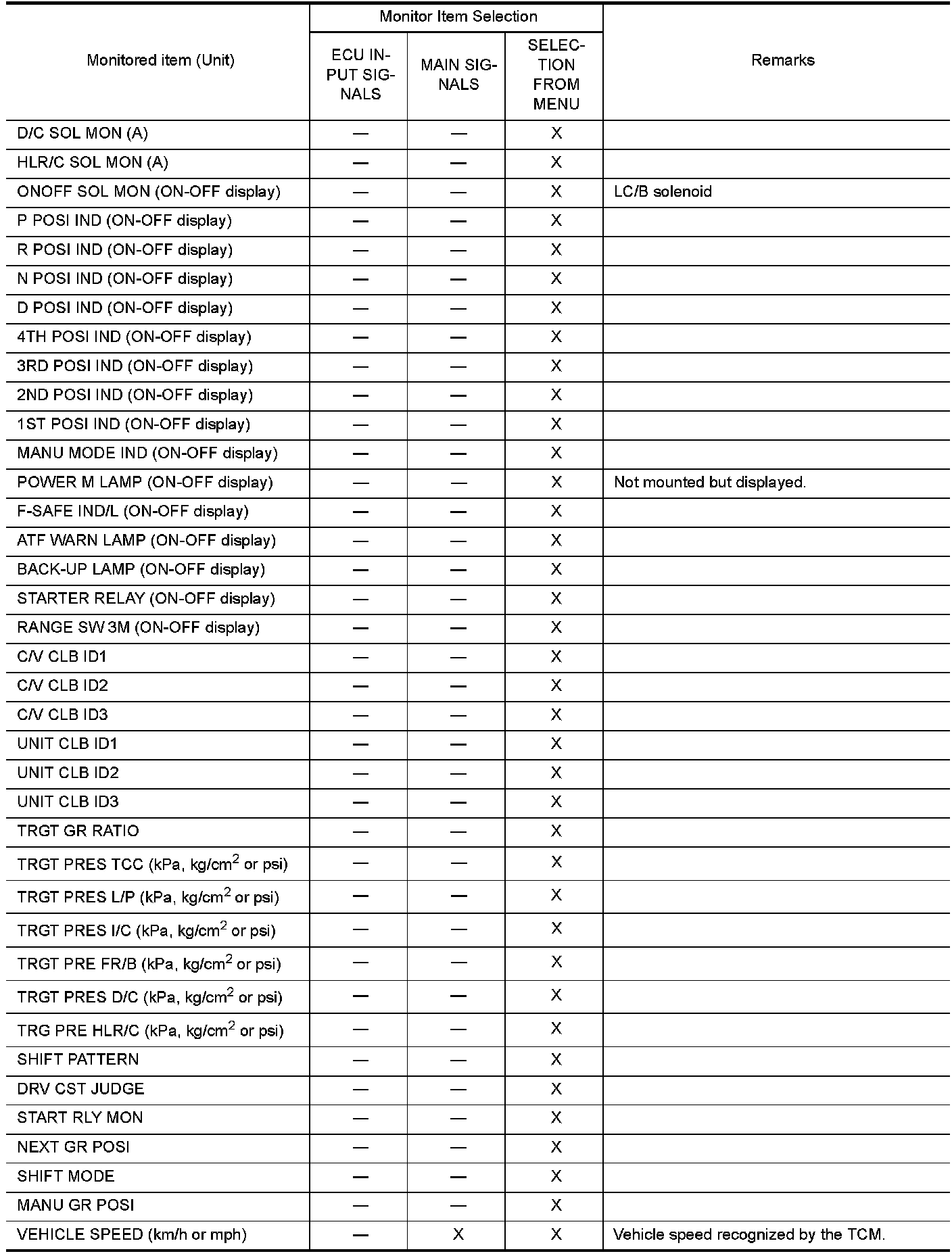

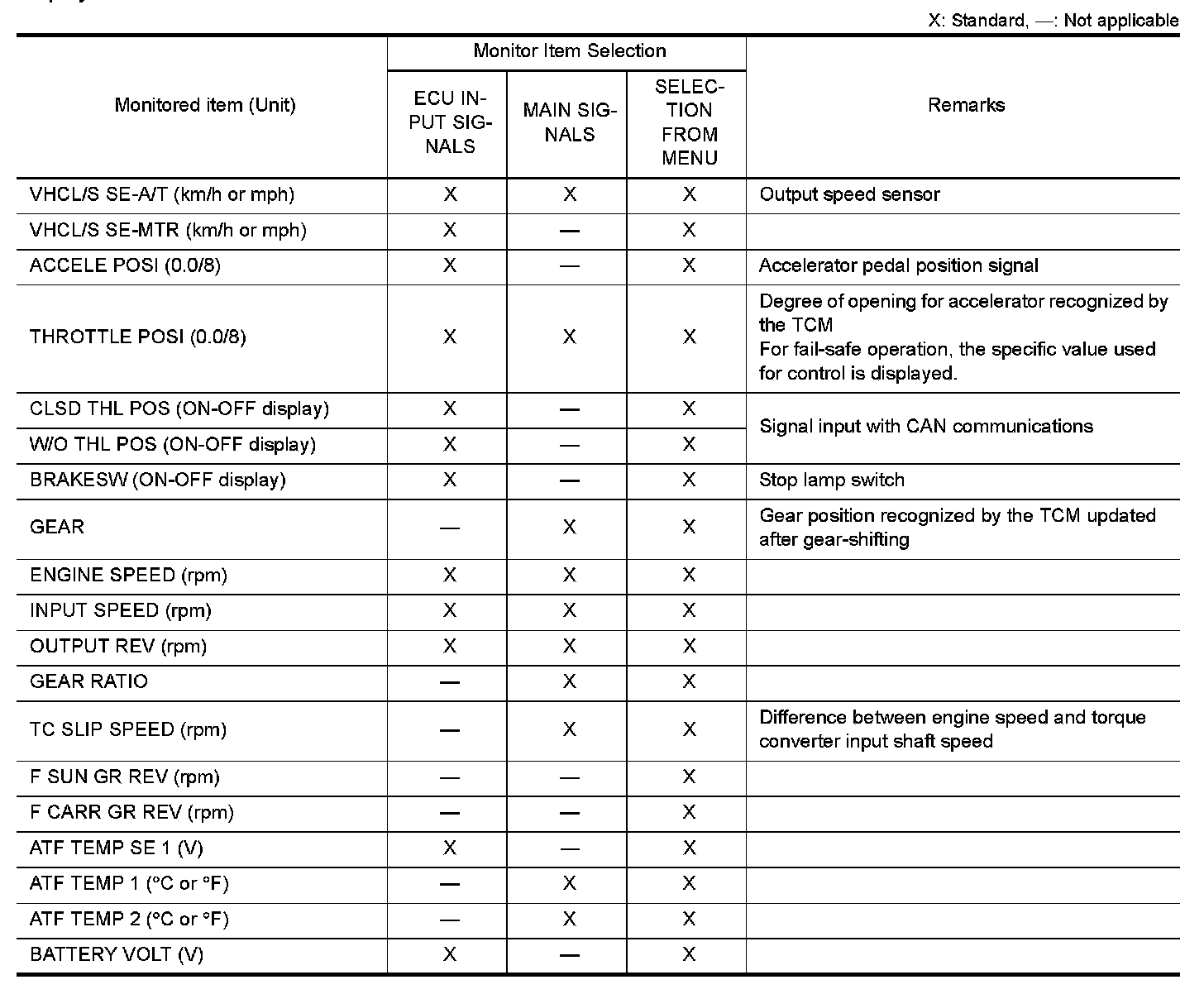

DATA MONITOR MODE

Display Items List
X: Standard, -: Not applicable
















DTC & SRT CONFIRMATION

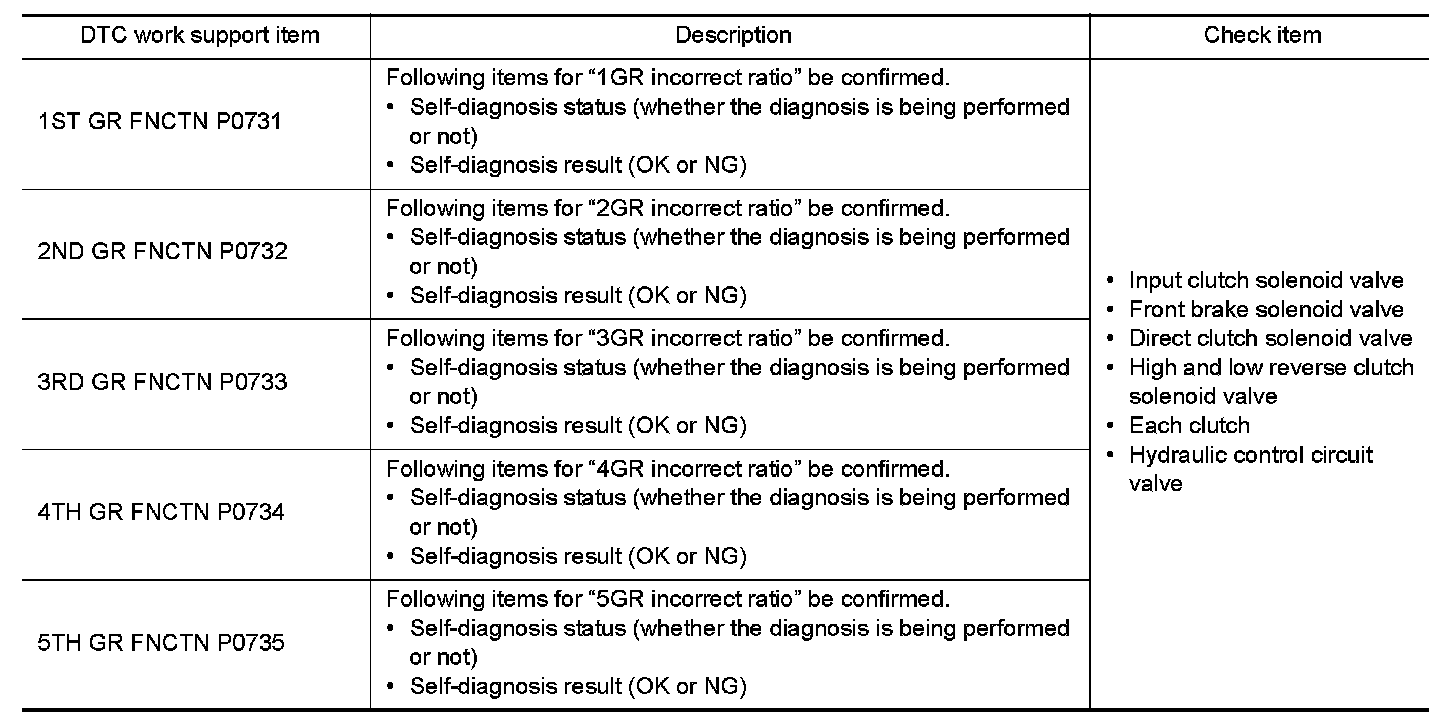

DTC Work Support Mode
