Catalyst Warm-Up System

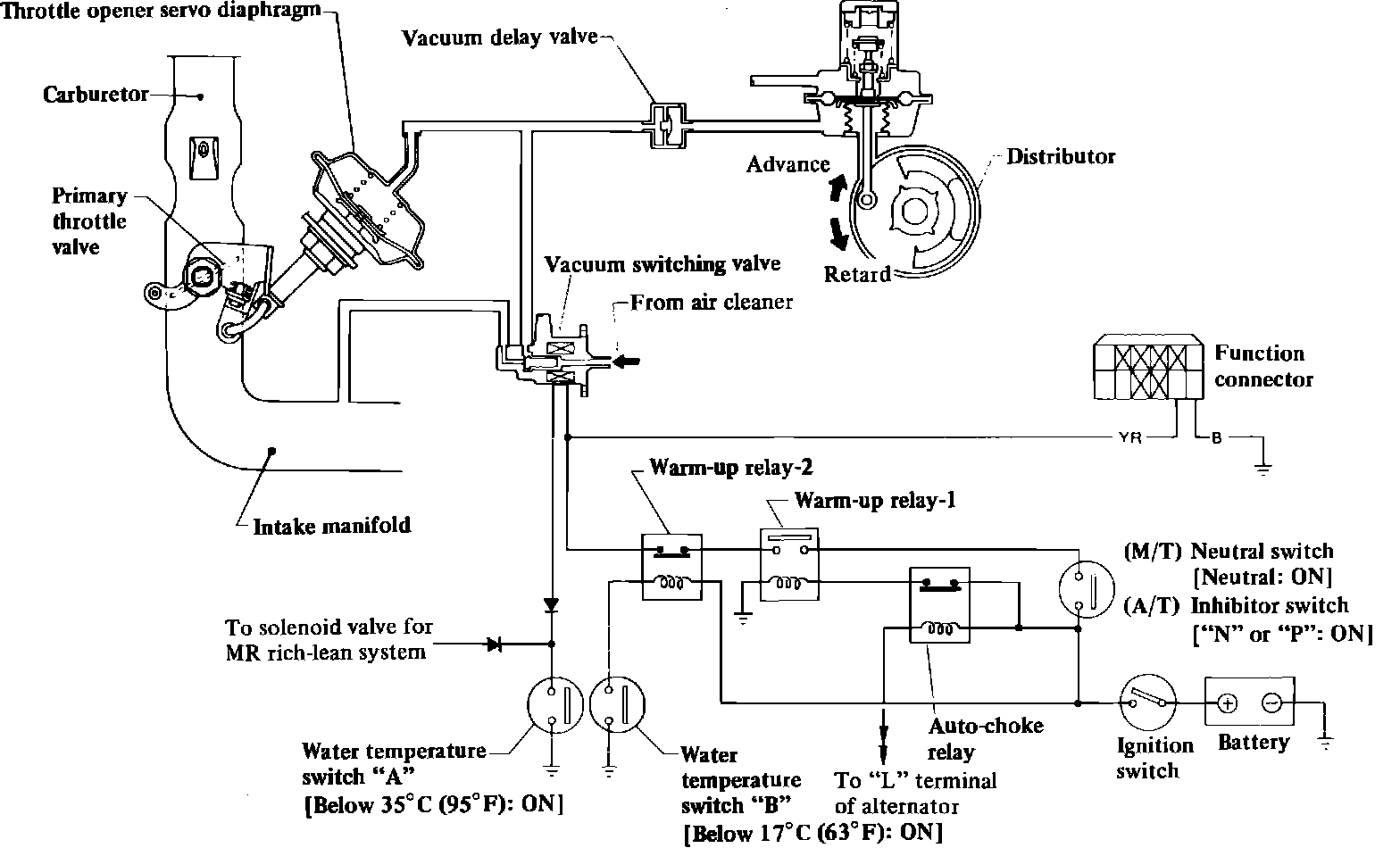

Fig. 92 Catalyst warm-up system.:

This system, Fig. 92, is used to reduce hydrocarbon emissions during cold conditions. When the manifold vacuum is introduced to the vacuum line by the vacuum switching valve, the throttle valve is opened and spark timing is retarded.
